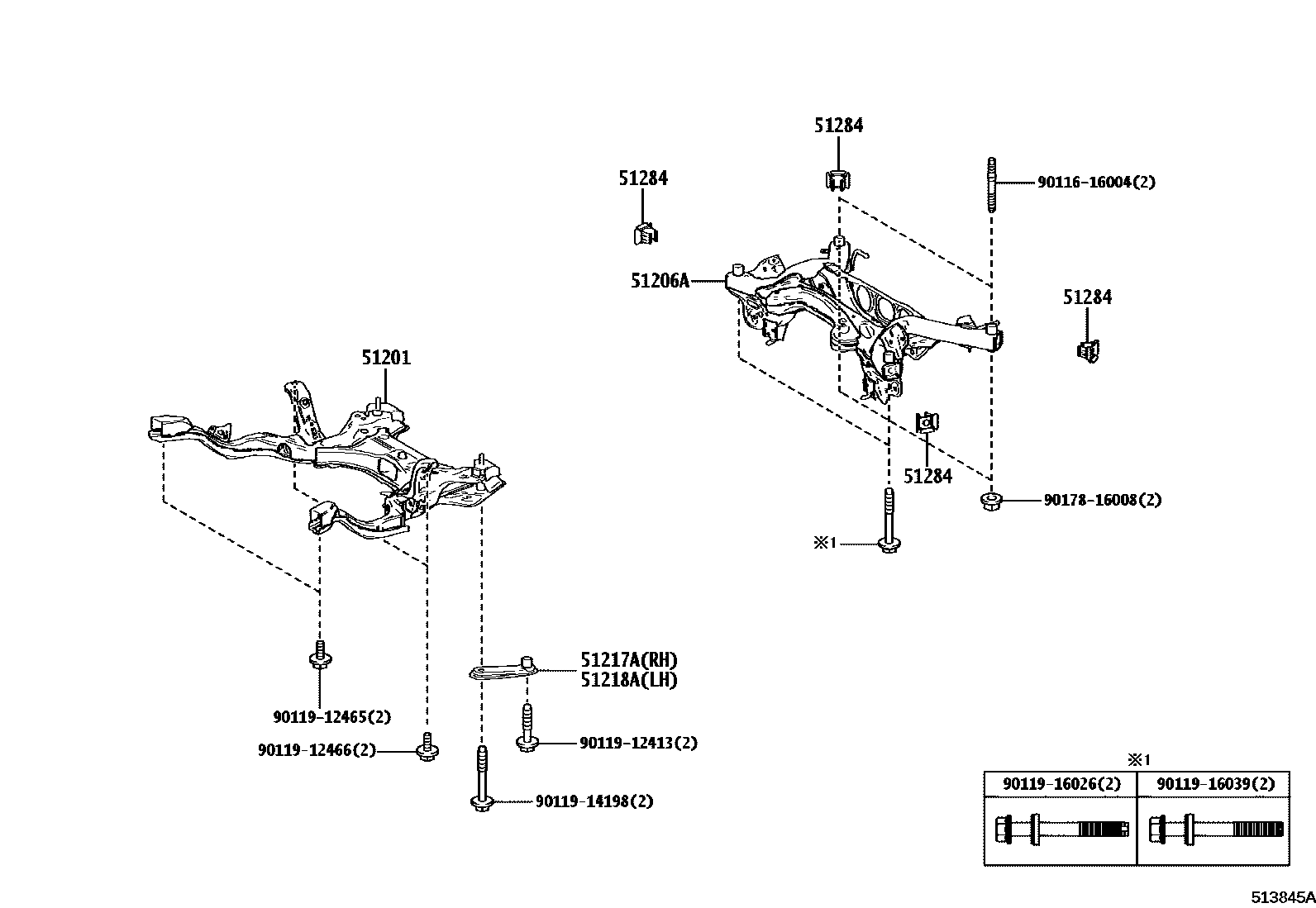

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-52140iGXPA16202008-202208

sub51201-52141

main51201-52141iGXPA16202209-202404

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-52020iGXPA16202008-202404

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51210-52010iGXPA16202008-202404

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51210-52010iGXPA16202008-202404

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-47010iGXPA16202008-202404

9011616004

main90116-16004

9011912413

main90119-12413

9011912465

main90119-12465

9011912466

main90119-12466

9011914198

main90119-14198

9011916026

main90119-16026

9011916039

main90119-16039

9017816008

main90178-16008

13 parts on this diagram · 2 diagrams in section
