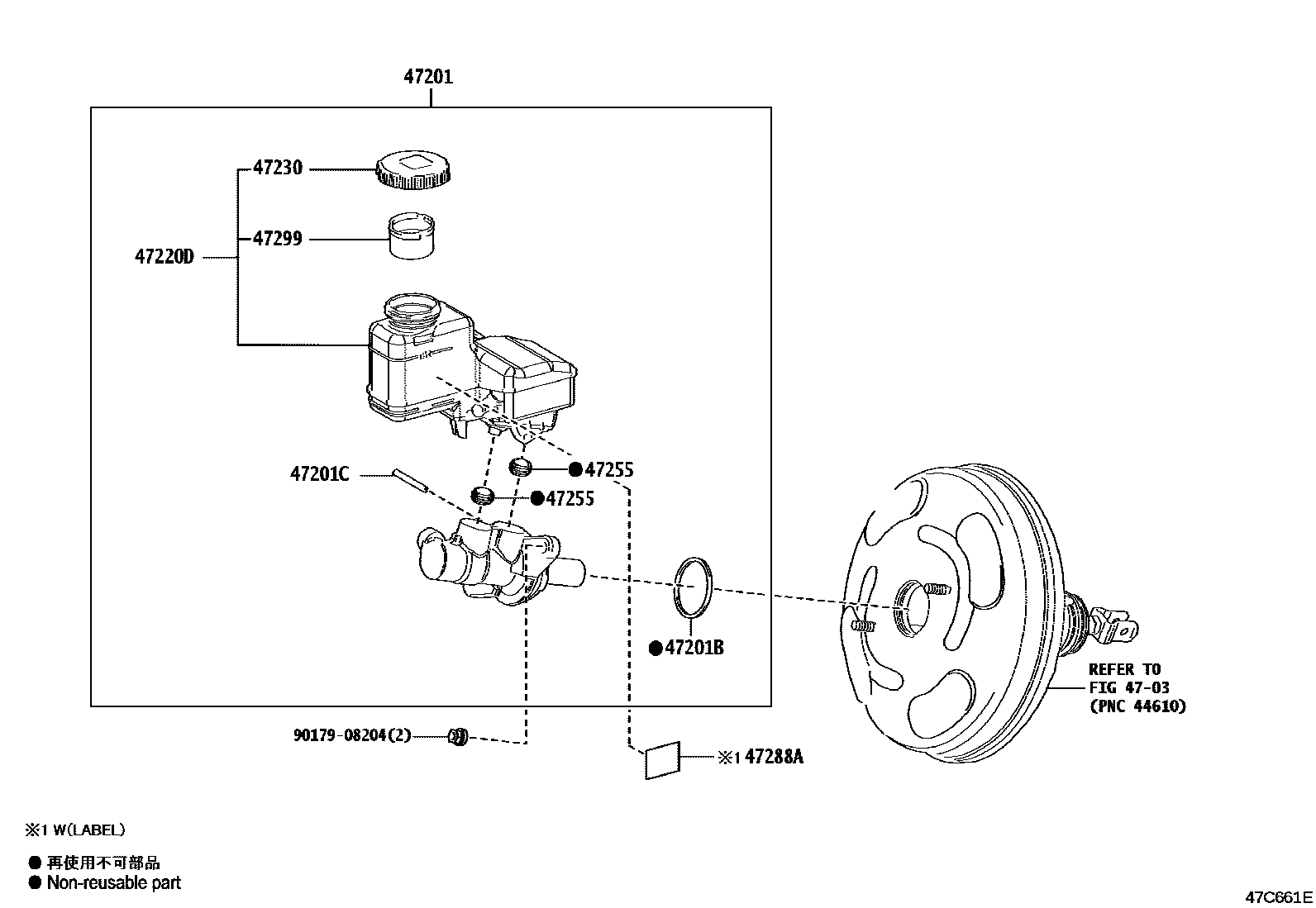

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-52830iGXPA16..LHD..8FC202404

main47201-52850iGXPA16..LHD202008-202404

main47201-K0050iGXPA16..RHD..8FC202404

main47201-K0060iGXPA16..RHD202008-202404

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iGXPA16202008-202404

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iGXPA16202008-202404

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-52340iGXPA16..LHD202008-202404

main47220-52380iGXPA16..LHD..8FC202404

main47220-K0060iGXPA16..RHD..8FC202404

main47220-K0070iGXPA16..RHD202008-202404

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iGXPA16202008-202404

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iGXPA16202008-202404

sub90016-AT001

47288ALABEL, BRAKE FLUID NOTICE

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iGXPA16202008-202404

9017908204

main90179-08204

10 parts on this diagram · 3 diagrams in section
