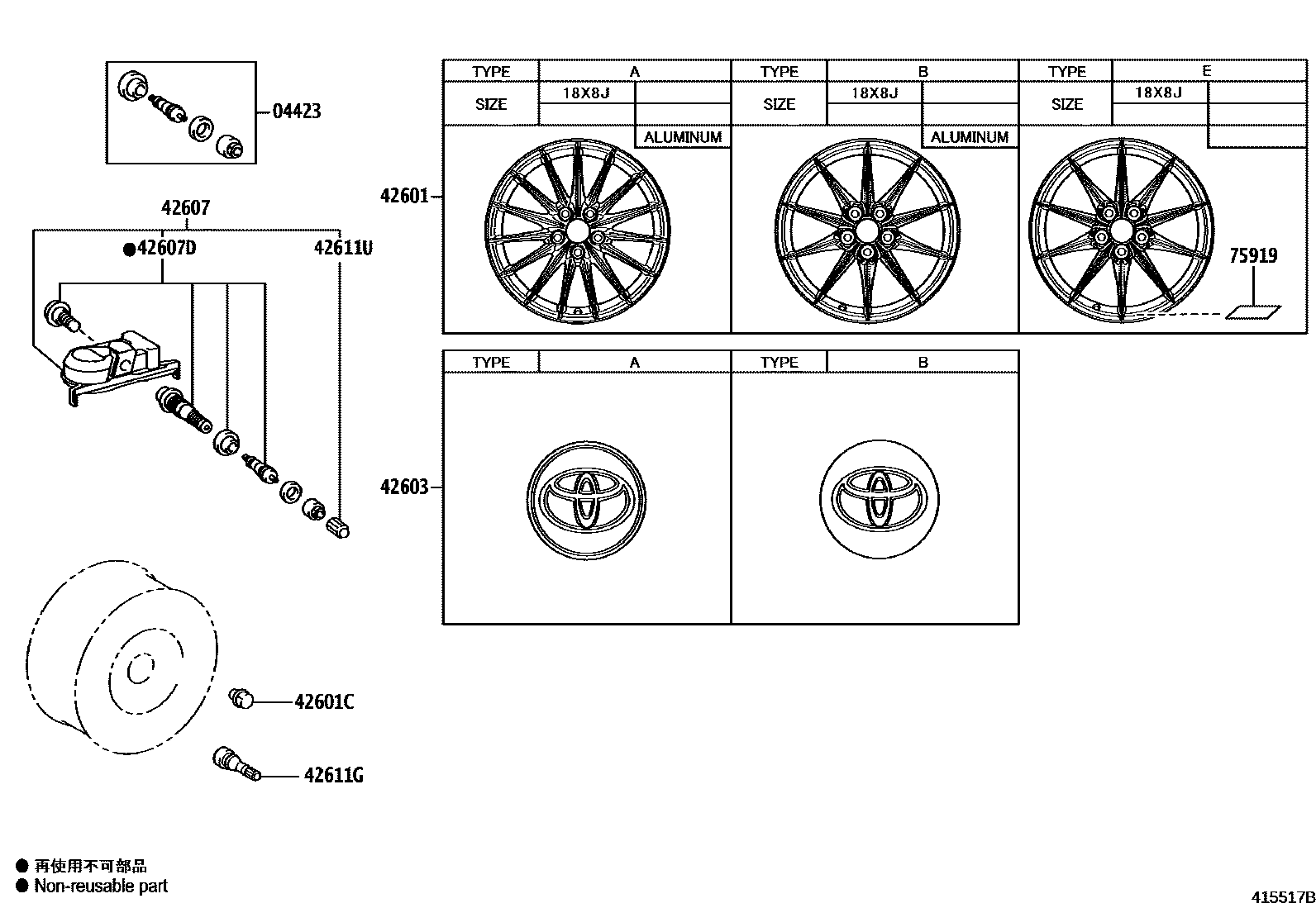

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
42601WHEEL, DISC
18X8J, #,TYPE A:REFER ILLUST.
18X8J, #,MEXICO SPEC&"HIGH PERFORMANCE"*(H)OR*(I),TYPE B:REFER ILLUST.
18X8J, #,"HIGH PERFORMANCE"*(H)OR*(I),TYPE B:REFER ILLUST.
18X8J, #,MEXICO SPEC&TIRE & DISC WHEEL-225/40R18, 8J, ALUMINUM(FORGING),TYPE B:REFER ILLUST.
18X8J, #,TIRE & DISC WHEEL-225/40R18, 8J, ALUMINUM(FORGING),TYPE B:REFER ILLUST.
18X8J, #,TYPE B:REFER ILLUST.
18X8J, #,TIRE & DISC WHEEL-225/40R18, 8J, ALUMINUM(FORGING),TYPE E:REFER ILLUST.
18X8J, #,TIRE & DISC WHEEL-225/40R18, 8J, ALUMINUM(FORGING),TYPE B:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TIRE & DISC WHEEL-225/40R18, 8J, ALUMINUM(FORGING)
"HIGH PERFORMANCE"*(H)OR*(I)
42603ORNAMENT SUB-ASSY, WHEEL HUB
*ALU,TYPE A:REFER ILLUST.
*ALU,TIRE & DISC WHEEL-225/40R18, 8J, ALUMINUM(FORGING),TYPE B:REFER ILLUST.
*ALU,"HIGH PERFORMANCE"*(H)OR*(I),TYPE B:REFER ILLUST.
*ALU,TYPE B:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
MEXICO SPEC&TIRE & DISC WHEEL-225/40R18, 8J, ALUMINUM
MEXICO SPEC
MEXICO SPEC&TIRE & DISC WHEEL-225/40R18, 8J, ALUMINUM(FORGING)
42607DVALVE, TIRE PRESSURE MONITOR
42611GVALVE (FOR TUBELESS TIRE)
MEXICO SPEC
MEXICO SPEC&"HIGH PERFORMANCE"*(H)OR*(I)
42611UCAP, TIRE VALVE
75919STICKER, WHEEL DECOR
TIRE & DISC WHEEL-225/40R18, 8J, ALUMINUM(FORGING)
9 parts on this diagram · 2 diagrams in section
