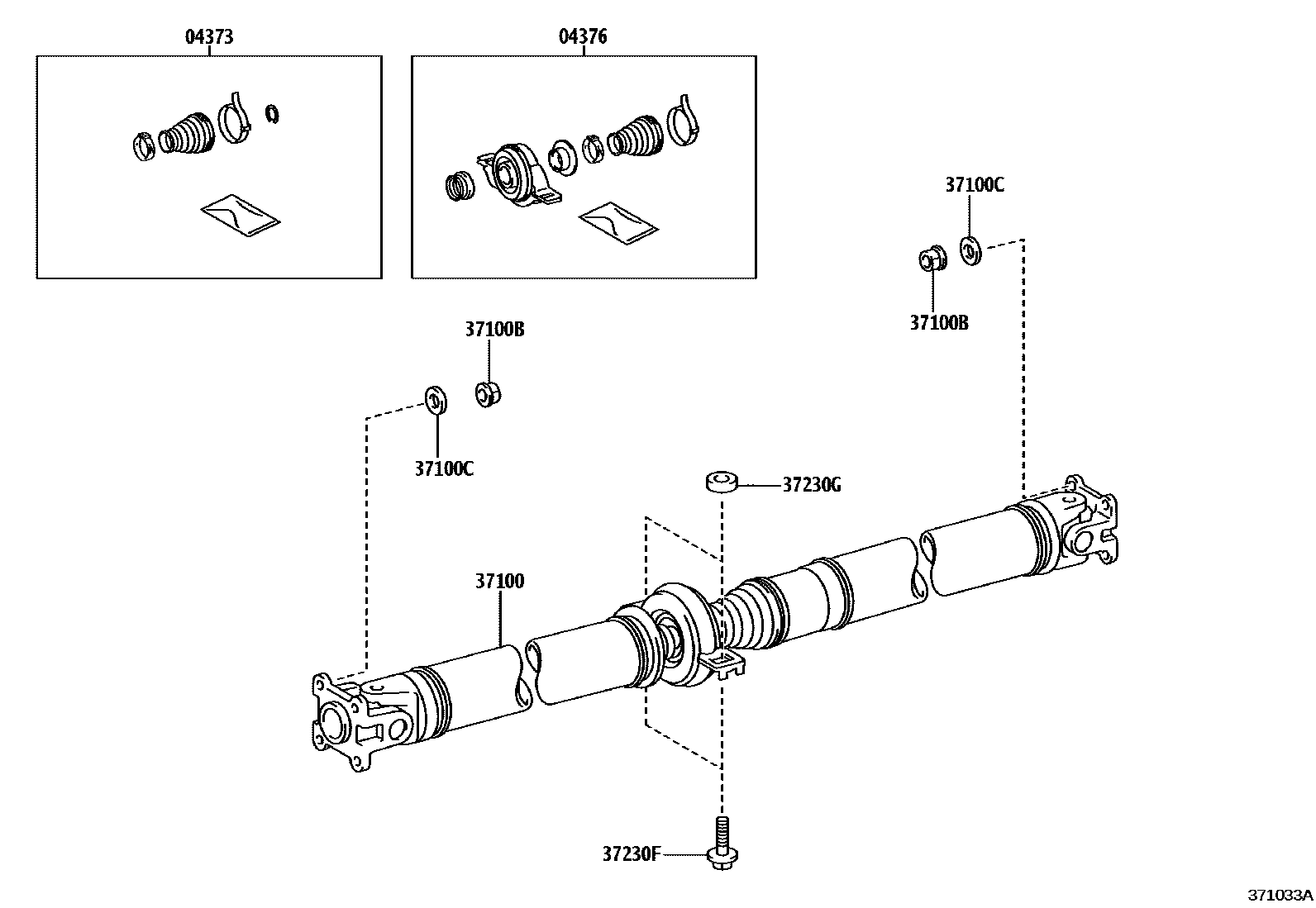

PROPELLER SHAFT & UNIVERSAL JOINT

04373BOOT KIT, UNIVERSAL

main04373-48010iGXPA16202008-202404

main04373-48011iGXPA16202412

04376BEARING KIT, CENTER SUPPORT

main04376-48020iGXPA16202008-202404

main04376-48030iGXPA16..8FC..ARL;GXPA16..6F..(ARL,EUR)202404-202412

main04376-48031iGXPA16202412

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-52150iGXPA16202008-202404

main37100-52160iGXPA16..8FC202404

main37100-52170iGXPA16..6F..(ARL,EUR)202404

37100BNUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90178-10007×8iGXPA16202008-202404

37100CWASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)

main90560-10102×8iGXPA16202008-202404

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-10444×2iGXPA16202008-202404

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10081×2iGXPA16202008-202404

T=4.5

main90201-10083×2iGXPA16..ARL,EUR202404

T=6.5

main90201-10084×2iGXPA16..ARL,EUR202404

T=9.0

main90201-10085×2iGXPA16202008-202404

T=11.0

main90201-10123×2iGXPA16..ARL,EUR202404

T=2.0

7 parts on this diagram · 1 diagram in section
