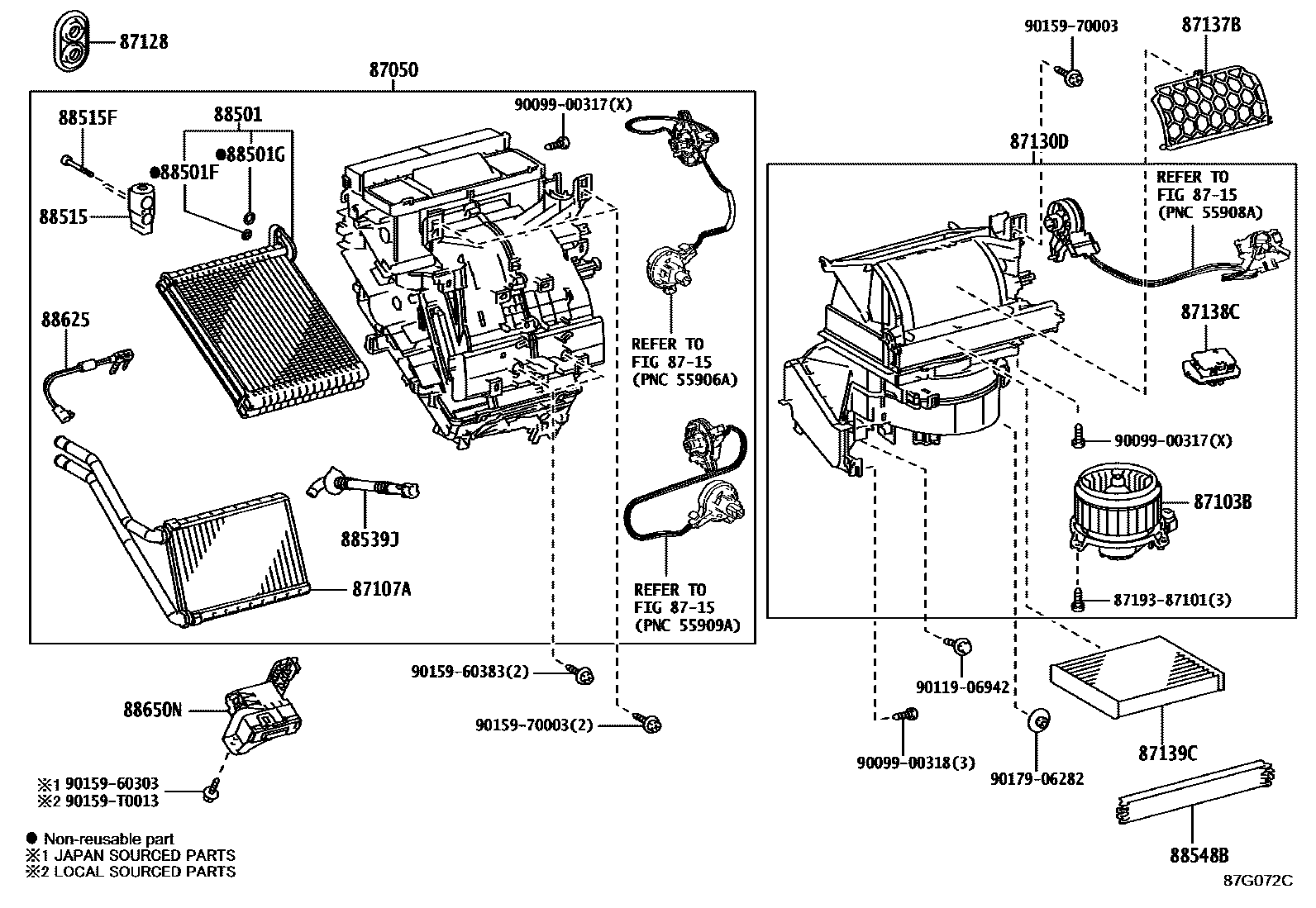

HEATING & AIR CONDITIONING - COOLER UNIT
87050RADIATOR ASSY, AIR CONDITIONER
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87128GROMMET, HEATER
87137BCOVER, HEATER BLOWER
87138CRESISTOR, BLOWER
87139CFILTER, CLEAN AIR
STANDARD,OE PART
POLLEN DEODORANT
8715
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)
ID=10.8,OD=15.6
88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)
ID=13.4,OD=18.2
88515FBOLT(FOR COOLER EXPANSION VALVE)
88539JHOSE, DRAIN COOLER
88548BCASE, AIR FILTER
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
8719387101
9009900317
9009900318
main90099-00318
9011906942
9015960303
9015960383
9015970003
90159T0013
main90159-T0013
9017906282
27 parts on this diagram · 3 diagrams in section
