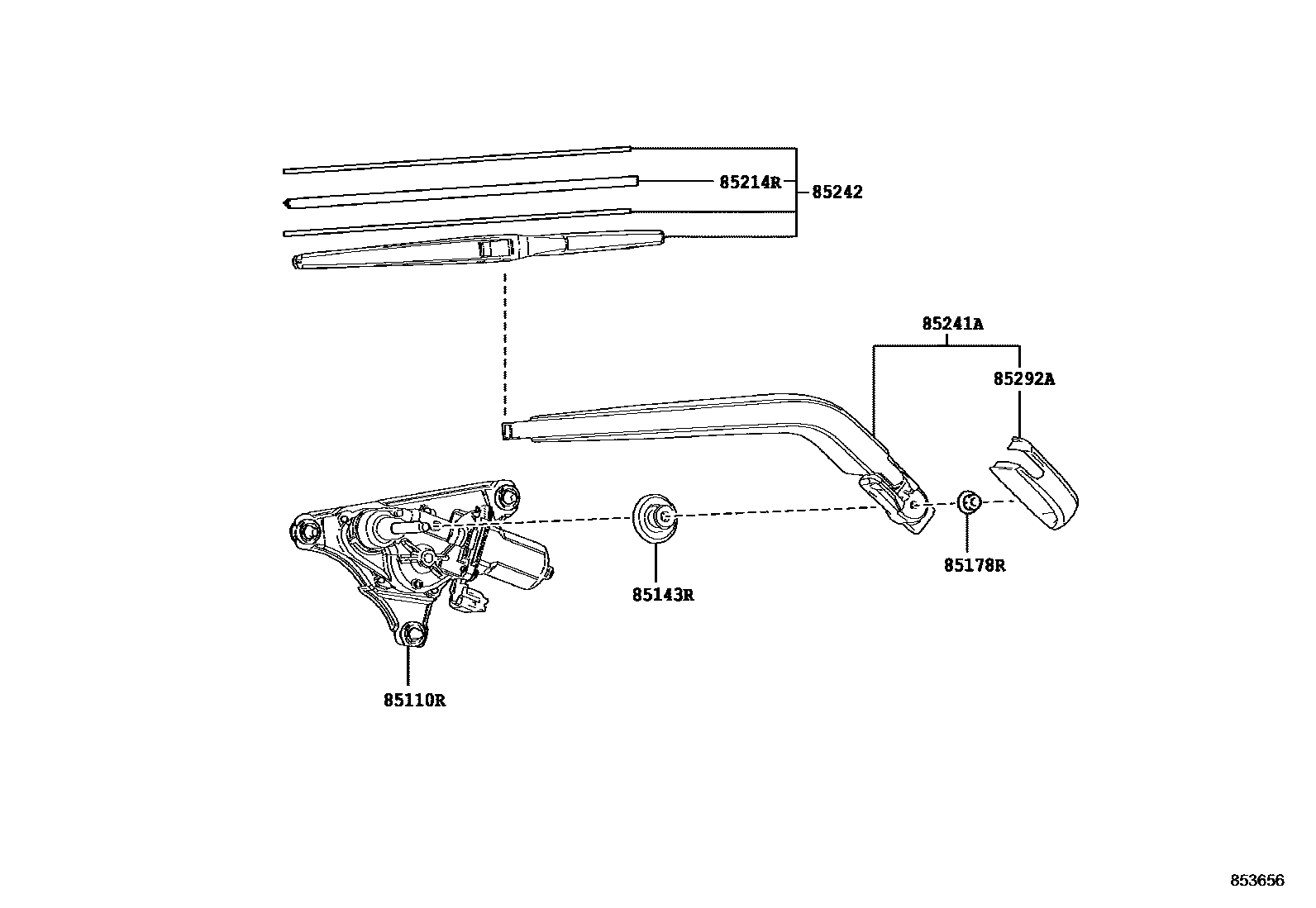

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-0D140iNSP170,ZSP170201611-202306

85143RGROMMET, REAR WIPER MOTOR

main85143-52020iNSP170,ZSP170201611-202306

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iNSP170,ZSP170201611-202306

85214RRUBBER, REAR WIPER

main85214-0D350iNSP170,ZSP170201611-202306

85241AARM, REAR WIPER

main85241-0D110iNSP170,ZSP170201611-202306

85242BLADE, RR WIPER

main85242-0D090iNSP170,ZSP170201611-202306

85292ACAP, REAR WIPER ARM HEAD

main85292-0D180iNSP170,ZSP170201611-202306

7 parts on this diagram · 1 diagram in section
