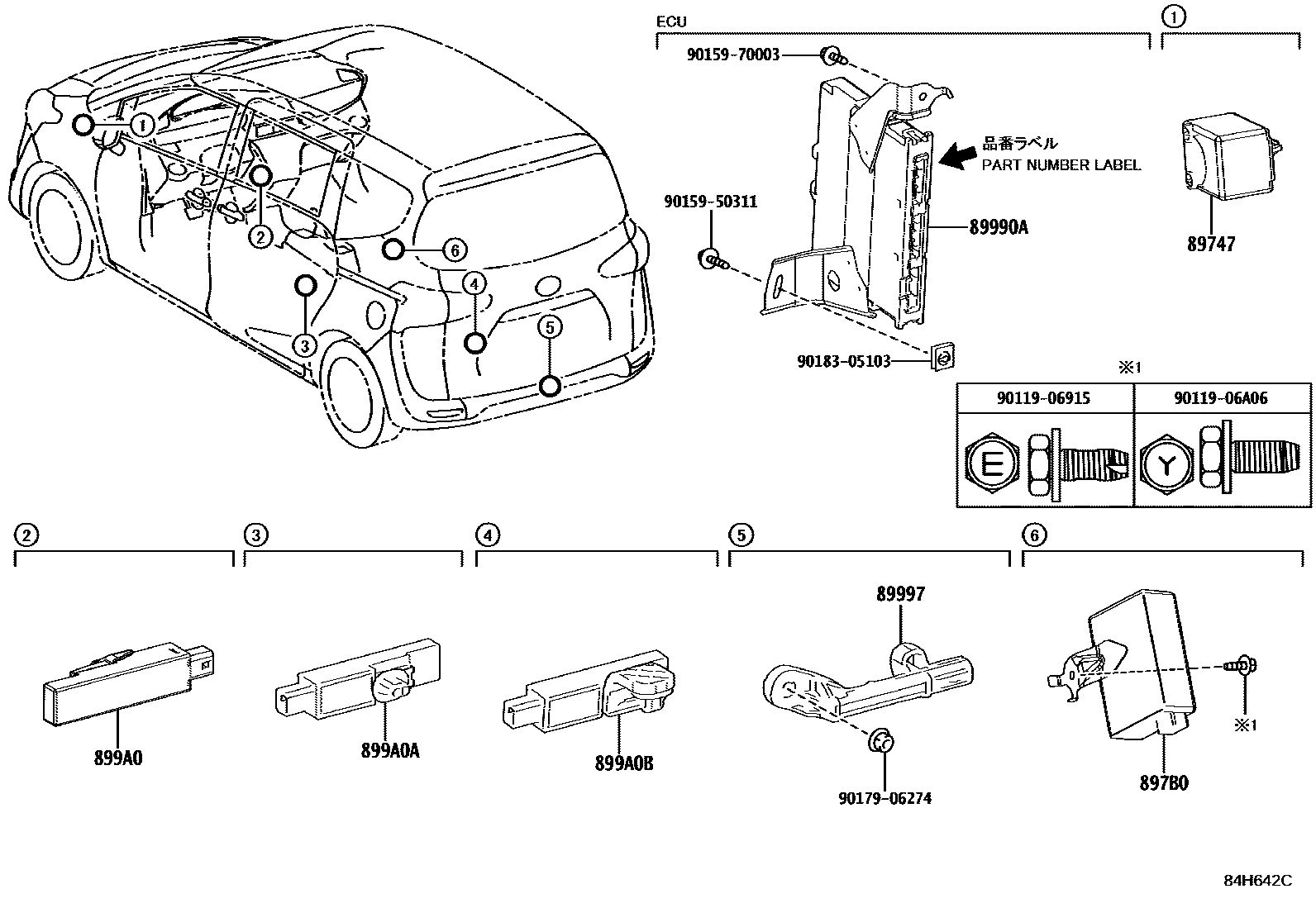

WIRELESS DOOR LOCK

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iNSP170,ZSP170201611-202306

897B0RECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-52030iNSP170,ZSP170201611-202306

89990ACOMPUTER ASSY, SMART KEY

main89990-52550iNSP170,ZSP170201611-201911

main89990-52550iNSP170,ZSP170201911-202104

P/N LABEL=8999052550

main89990-52A10iNSP170,ZSP170202104-202210

P/N LABEL=8999052A10

main89990-52A60iNSP170202210-202306

P/N LABEL=8999052A60

89997ANTENNA, ELECTRICAL KEY

main89997-30100iNSP170,ZSP170201611-202306

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-60010iNSP170,ZSP170201611-202306

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-47010iNSP170,ZSP170201611-202306

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-47030iNSP170,ZSP170201611-202306

9011906915

main90119-06915

9011906A06

main90119-06A06

9015950311

main90159-50311

9015970003

main90159-70003

9017906274

main90179-06274

9018305103

main90183-05103

13 parts on this diagram · 1 diagram in section
