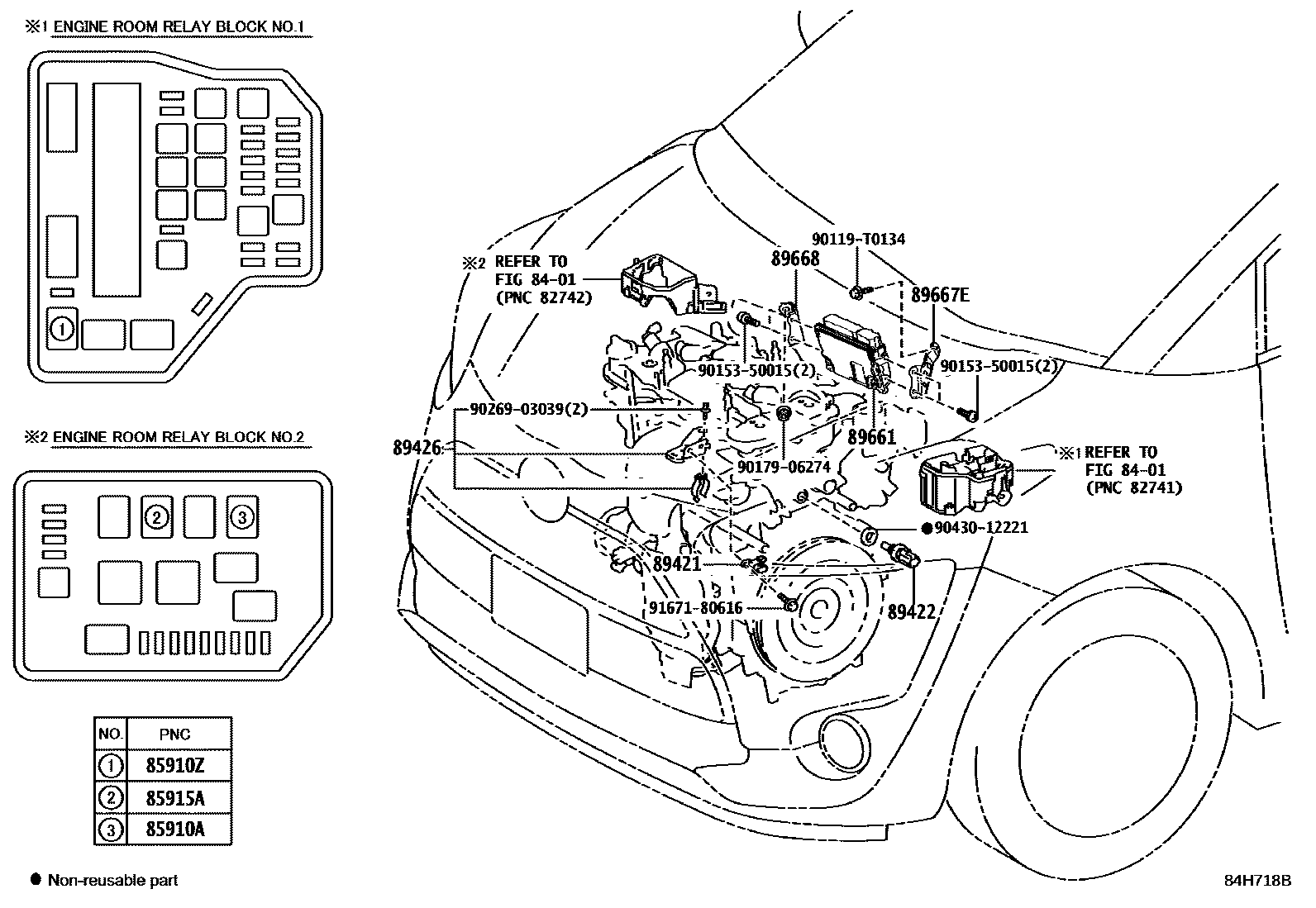

ELECTRONIC FUEL INJECTION SYSTEM
8401
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
(J)
(L)
85910ZRELAY, INJECTION (FOR EFI)
(J)
(L)
85915ARELAY, MAIN
(J)
(L)
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89426BRACKET, VACUUM SENSOR
89661COMPUTER, ENGINE CONTROL
DENSO TEN
DENSO TEN
DENSO TEN
DENSO TEN
89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
90119T0134
main90119-T0134
9015350015
main90153-50015
9017906274
main90179-06274
9026903039
main90269-03039
9043012221
main90430-12221
9167180616
main91671-80616
16 parts on this diagram · 2 diagrams in section
