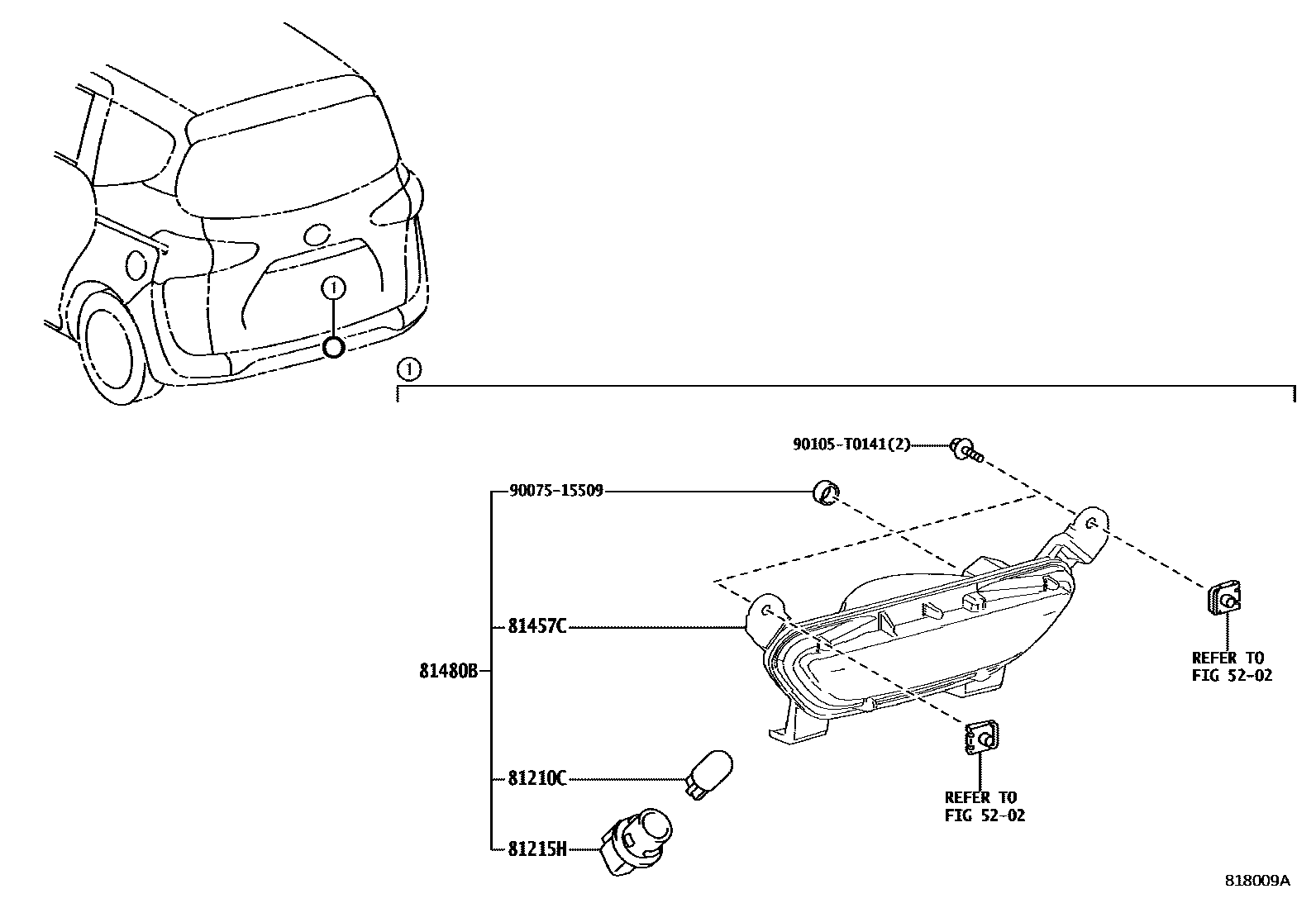

REAR FOG LAMP

5202

81210CBULB, REAR FOG LAMP

main90981-13043iNSP170,ZSP170201611-202306

12V 21W

81215HSOCKET, REAR FOG LAMP

main90075-99080iNSP170,ZSP170201611-202306

81457CLENS & BODY, REAR FOG LAMP

main81457-0D100iNSP170,ZSP170201611-202306

81480BLAMP ASSY, REAR FOG

main81480-0D100iNSP170,ZSP170201611-202306

9007515509

main90075-15509

90105T0141

main90105-T0141

7 parts on this diagram · 1 diagram in section
