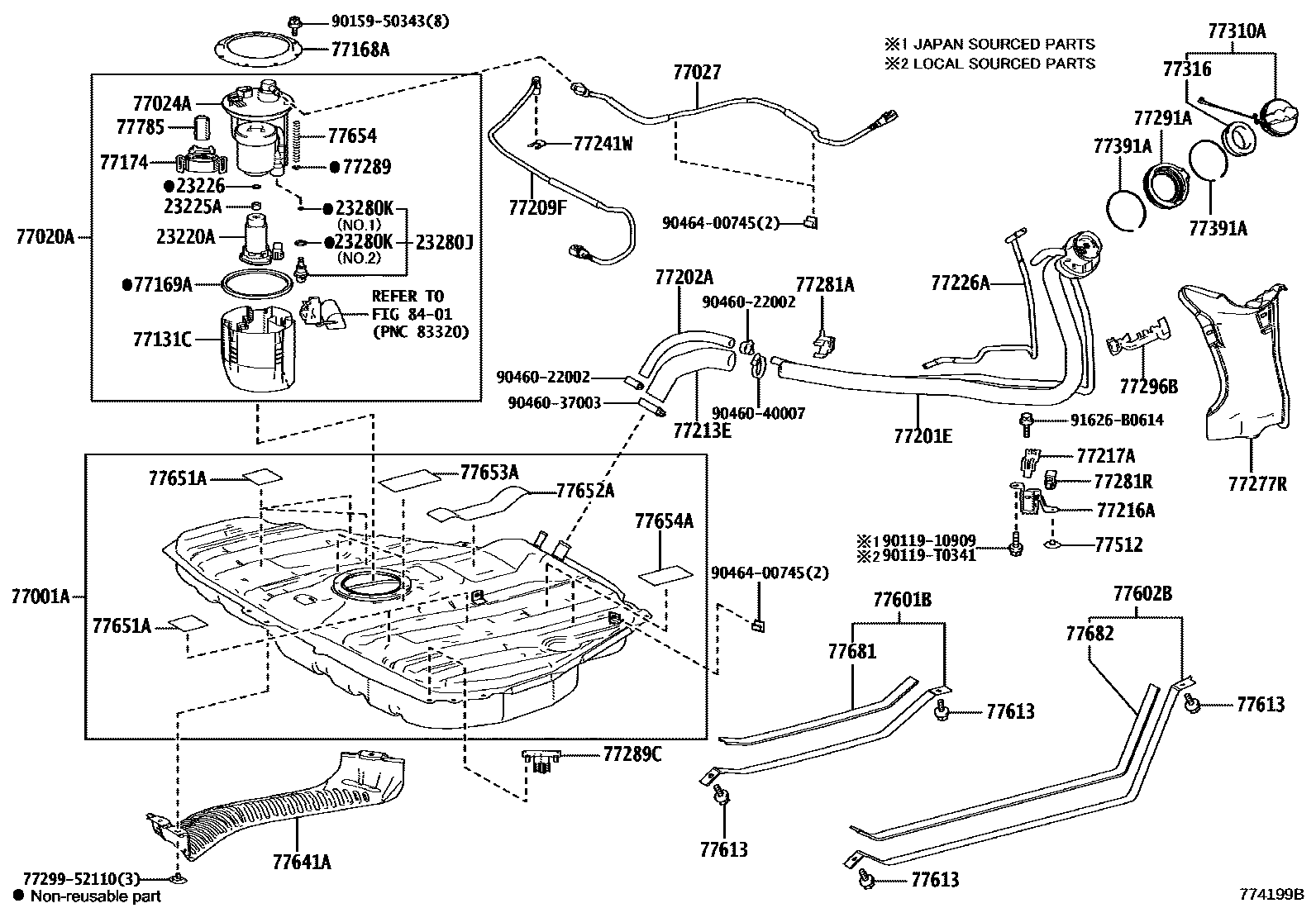

FUEL TANK & TUBE
23220APUMP ASSY, FUEL W/FILTER
23225ASPACER, FUEL PUMP
23226RING, O(FOR FUEL PUMP)
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77001ATANK SUB-ASSY, FUEL
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77027TUBE SUB-ASSY, FUEL EVAPORATION, NO.2
77131CSUB-TANK, FUEL, NO.1
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)
L=260
L=240
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77213EHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77226ATUBE, FUEL TANK BREATHER, NO.6
77241WCLIP, TUBE JOINT
77277RPROTECTOR, FUEL TANK FILLER PIPE
77281ACLAMP, FUEL FILLER PIPE
77281RCLAMP, FUEL FILLER PIPE, NO.2
77289HOLDER, FUEL TANK PIPE SETTING
77289CCLAMP, FUEL TUBE, NO.4
77291ASHIELD, FUEL TANK FILLER PIPE
77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391ARING, FUEL INLET BOX
77512BRACKET, FUEL TANK, REAR
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77613BOLT, FUEL TANK BAND SET
77641APROTECTOR, FUEL TANK, NO.1
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77653ACUSHION, FUEL TANK, NO.3
77654CUSHION, FUEL TANK, NO.2
77654ACUSHION, FUEL TANK, NO.4
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
77785HARNESS, FUEL PUMP
8401
7729952110CLAMP, FUEL TUBE W/GROMMET, NO.5
main77299-52110
9011910909
90119T0341
main90119-T0341
9015950343
9046022002
9046037003
9046040007
9046400745
91626B0614
54 parts on this diagram · 5 diagrams in section
