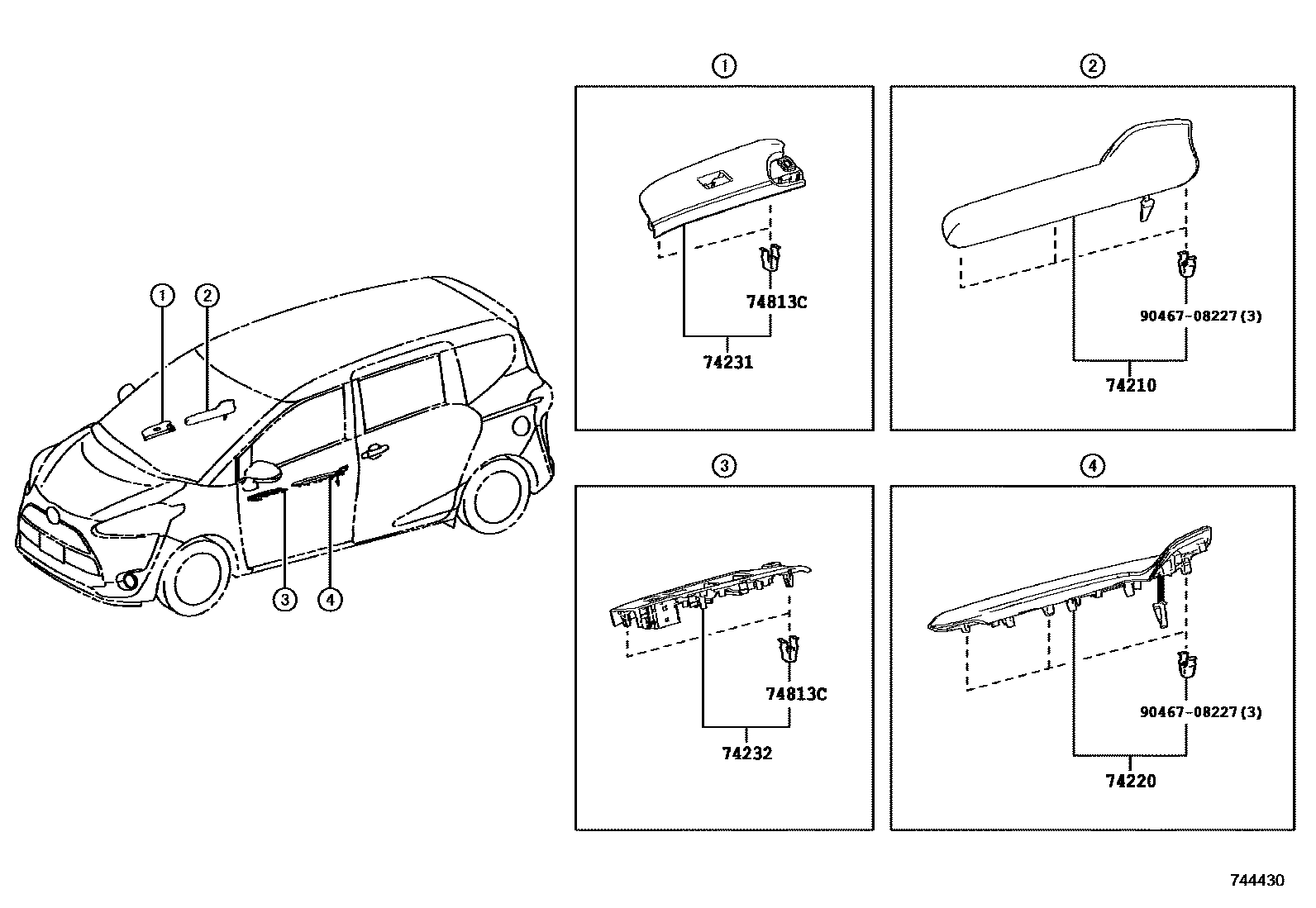

ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1VISOR & ASSIST GRIP

74210ARMREST ASSY, FRONT, RH

main74210-0D030-A1iZSP170..N,Q201911

FROMAGE,TRIM0#

main74210-0D030-C0iNSP170201611-202306

BLACK,TRIM2#

main74210-0D180-A2iZSP170201611-201911

FROMAGE,TRIM0#

main74210-0D180-C2iZSP170201611-201911

BLACK,TRIM2#

74220ARMREST ASSY, FRONT, LH

main74220-0D030-A1iZSP170..N,Q201911

FROMAGE,TRIM0#

main74220-0D030-C0iNSP170201611-202306

BLACK,TRIM2#

main74220-0D180-A2iZSP170201611-201911

FROMAGE,TRIM0#

main74220-0D180-C2iZSP170201611-201911

BLACK,TRIM2#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-0D540-A0iZSP170..N,Q201611-201911

FROMAGE,TRIM0#

main74231-0D540-C0iNSP170,ZSP170201611-202306

BLACK,TRIM2#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-0D550-A0iZSP170..N,Q201611-201911

FROMAGE,TRIM0#

main74232-0D550-C0iZSP170201611-201911

BLACK,TRIM2#

main74232-0D560-C0iNSP170201611-202306

BLACK,TRIM2#

74813CCLIP

main90467-10203iNSP170,ZSP170¥60201611-202306

9046708227

main90467-08227¥80

6 parts on this diagram · 3 diagrams in section
