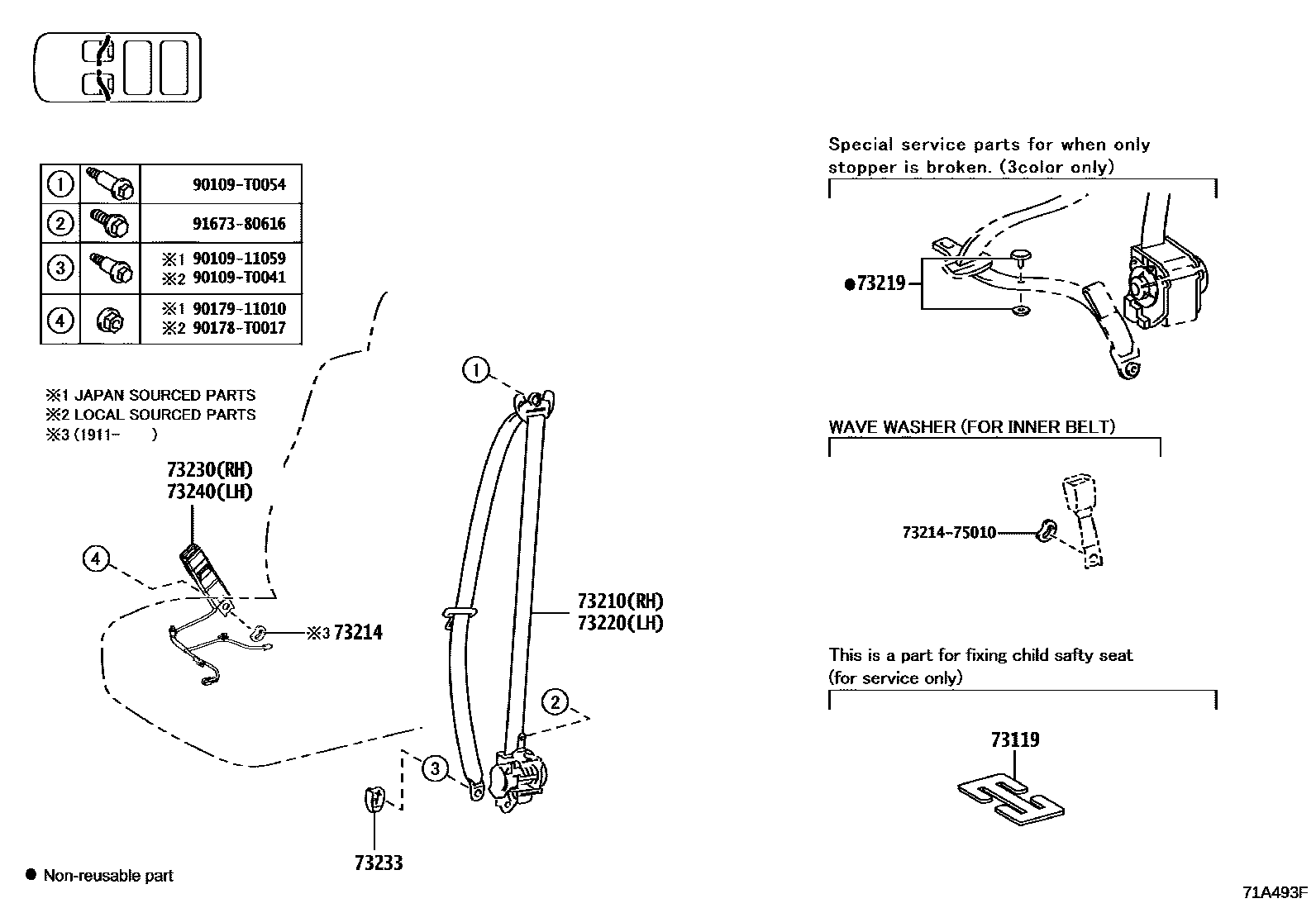

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR NO.1 SEAT 0003 1REAR NO.2 SEAT

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iZSP170201611-202306

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0D500-C0iZSP170201611-202306

BLACK,TRIM2#

main73210-0D500-C0iZSP170201611-201911

BLACK,TRIM0#,2#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010iNSP170201911-202306

73219STOPPER, TONGUE PLATE

main73219-33010iZSP170201611-202306

BLACK

main73219-33020iNSP170,ZSP170201611-202306

GRAY

main73219-33030iNSP170,ZSP170201611-202306

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0D490-C0iZSP170..N,Q201611-202306

BLACK,TRIM2#

main73220-0D490-C0iZSP170..D,W201611-201911

BLACK,TRIM0#,2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0D650-C0iZSP170..N,Q201611-202306

BLACK,TRIM2#

main73230-0D650-C0iZSP170201611-201911

BLACK,TRIM0#,2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-KK010-C0iZSP170201611-201911

BLACK,TRIM0#,2#

main73233-KK010-C0iZSP170201611-202306

BLACK,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-0D010-C0iNSP170201611-201911

BLACK,TRIM0#,2#

main73240-0D010-C0iZSP170201611-202306

BLACK,TRIM2#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010911059

main90109-11059

90109T0041

main90109-T0041

90109T0054

main90109-T0054

90178T0017

main90178-T0017

9017911010

main90179-11010

9167380616

main91673-80616

15 parts on this diagram · 3 diagrams in section
