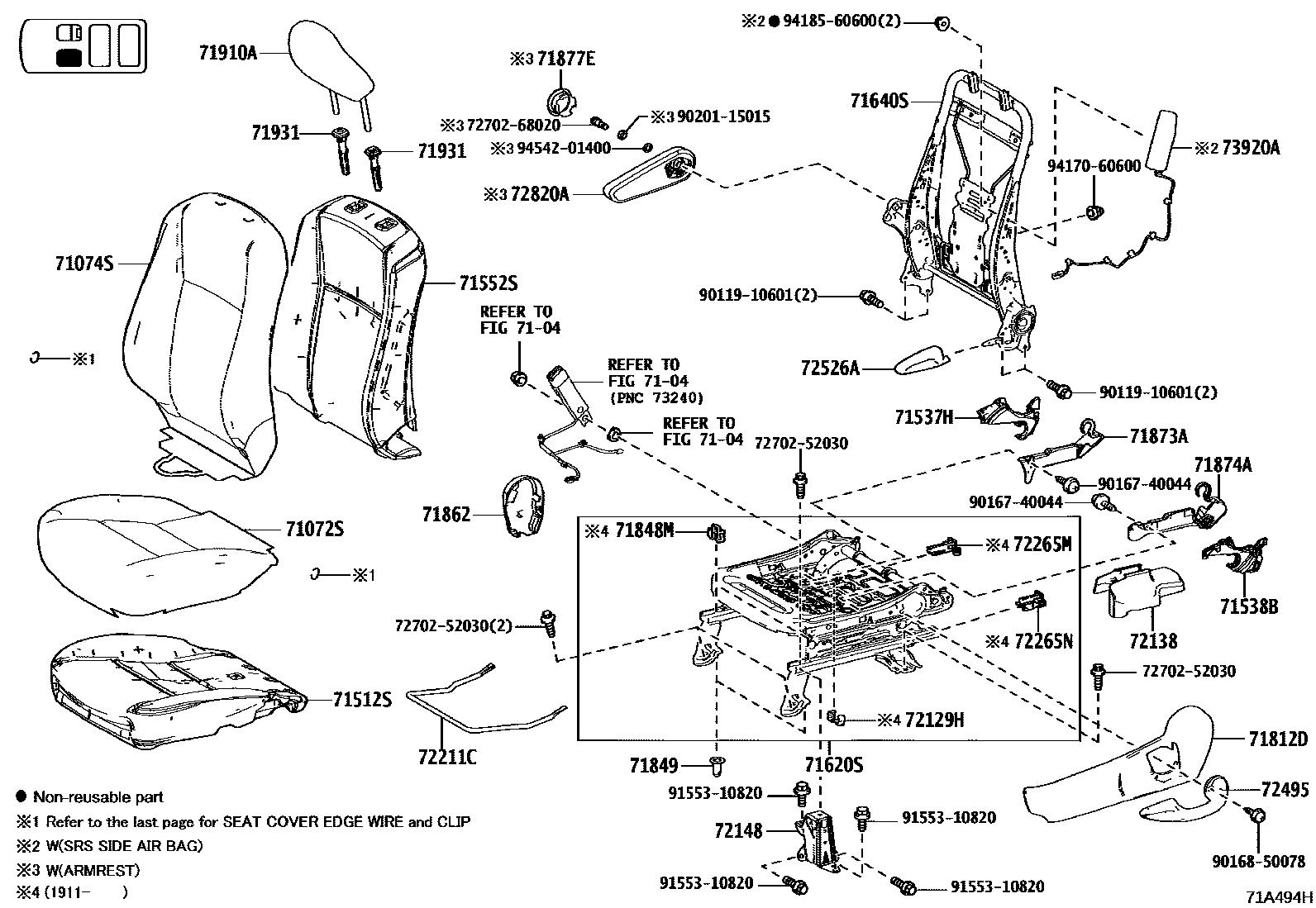

FRONT SEAT & SEAT TRACK

0001 1DRIVER SEAT 0002 1PASSENGER SEAT 0003 1SEAT COVER EDGE WIRE & CLIP

7104

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-0DU80-B2iNSP170201611-201911

DK.GRAY,TRIM2#

main71072-0DU90-B5iZSP170..N201611-201712

BLACK/ ORENGE,TRIM2#

main71072-0DU90-B6iZSP170..N201611-201712

CHOCOLATE BROWN/ORENGE,TRIM0#

main71072-0DV00-B6iZSP170..Q,U201611-201712

BLACK/ ORENGE,TRIM2#

main71072-0DV00-B7iZSP170..Q,U201611-201712

CHOCOLATE BROWN/ORENGE,TRIM0#

main71072-0U570-B0iZSP170201712-201911

BLACK/BLACK,TRIM2#

sub71072-0UA60

main71072-0U570-B1iZSP170201712-201911

NOBLE BROWN/NOBLE BROWN,TRIM0#

sub71072-0UA60

main71072-0UA60-B0iZSP170..D,W;ZSP170..05S..N201911-202104

BLACK,TRIM2#

main71072-0UA60-B1iZSP170..05S..N201911-202104

NOBLE BROWN,TRIM0#

main71072-0UB70-B0iZSP170..Q201911

BLACK,TRIM2#

main71072-0UB70-B1iZSP170..Q201911

NOBLE BROWN,TRIM0#

main71072-0UF00-B0iZSP170..D,W;ZSP170..05S..N201911-202306

DK.GRAY,TRIM2#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-0DE70-B2iNSP170201611-201911

DK.GRAY,TRIM2#

main71074-0DT40-B3iZSP170..N201611-201712

BLACK/ ORENGE,TRIM2#

main71074-0DT40-B4iZSP170..N201611-201712

CHOCOLATE BROWN/ORENGE,TRIM0#

main71074-0DT50-B4iZSP170..Q,U201611-201712

BLACK/ ORENGE,TRIM2#

main71074-0DT50-B5iZSP170..Q,U201611-201712

CHOCOLATE BROWN/ORENGE,TRIM0#

main71074-0U470-B0iZSP170201712-201911

BLACK/BLACK,TRIM2#

main71074-0U470-B1iZSP170201712-201911

NOBLE BROWN/NOBLE BROWN,TRIM0#

main71074-0U880-B0iZSP170..D,W;ZSP170..05S..N202012-202104

BLACK,TRIM2#

main71074-0U880-B1iZSP170..07S..N202012-202104

NOBLE BROWN,TRIM0#

main71074-0UB00-B0iZSP170..Q202012

BLACK,TRIM2#

main71074-0UB00-B1iZSP170..Q202012

NOBLE BROWN,TRIM0#

main71074-0UF60-B0iNSP170201911-202306

DK.GRAY,TRIM2#

main71074-0UF70-B0iZSP170..D,N201911-202011

BLACK,TRIM2#

sub71074-0U880

main71074-0UF70-B1iZSP170..N201911-202011

NOBLE BROWN,TRIM0#

sub71074-0U880

main71074-0UF80-B0iZSP170..Q201911-202011

BLACK,TRIM2#

sub71074-0UB00

main71074-0UF80-B1iZSP170..Q201911-202011

NOBLE BROWN,TRIM0#

sub71074-0UB00

main71074-0UQ00-B0iZSP170..D,W;ZSP170..05S..N202104

DK.GRAY,TRIM2#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-0D560iNSP170,ZSP170201611-202306

71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

main71537-02260-C0iZSP170..N,Q201611-202306

BLACK,TRIM2#

main71537-02260-C0iZSP170201611-201911

BLACK,TRIM0#,2#

71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

main71538-02190-C0iZSP170..D,W201611-201911

BLACK,TRIM0#,2#

main71538-02190-C0iZSP170201611-202306

BLACK,TRIM2#

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-0D560iNSP170201611-201911

main71552-0D570iZSP170..N201611-201712

main71552-0D580iZSP170..Q,U201611-201911

main71552-0D860iNSP170201911-202306

main71552-0D870iZSP170201911

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-0D280iNSP170,ZSP170201611-201911

main71620-0D440iNSP170201911-202306

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-0D330iZSP170201611-201911

main71640-0D340iNSP170201611-201911

main71640-0D400iZSP170201911

main71640-0D410iNSP170201911-202306

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-0D240-C0iZSP170..N201611-201712

BLACK,TRIM0#,2#

main71812-0D240-C0iNSP170201611-201911

BLACK,TRIM2#

main71812-0D440-C0iZSP170..Q,U201611-201911

BLACK,TRIM0#,2#

main71812-0D440-C0iNSP170201911-202306

BLACK,TRIM2#

71848MCAP, SEAT ADJUSTER COVER, FRONT UPPER

main71848-0D150iNSP170,ZSP170201911-202306

71849CAP, SEAT ADJUSTER COVER, LH

main71848-47010iNSP170,ZSP170201611-202306

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-0D280-C0iNSP170201611-202306

BLACK,TRIM2#

main71862-0D280-C0iNSP170201611-201911

BLACK,TRIM0#,2#

71873ASHIELD, FRONT SEAT CUSHION, LOWER

main71873-06460iNSP170,ZSP170201611-202306

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-06450iNSP170201611-202306

71877ECOVER, SEAT ARMREST HOLE, LH

main71877-68010-C0iZSP170201611-201911

BLACK,TRIM0#,2#

main71877-68010-C0iZSP170..N,Q201911

BLACK,TRIM2#

71910AHEADREST ASSY, FRONT SEAT

main71910-0DC20-B0iZSP170201611-201911

DK.GRAY,TRIM2#

main71910-0DC20-E1iZSP170201611-201712

CHOCOLATE BROWN,TRIM0#

main71910-0DL60-B0iZSP170..D,W;ZSP170..05S..N201911-202306

DK.GRAY,TRIM2#

main71910-0DL70-C0iZSP170..D,W;ZSP170..05S..N201911-202104

BLACK,TRIM2#

main71910-0DL70-E0iZSP170..05S..N201911-202104

DK.GRAY,TRIM0#

main71910-0DM10-C0iZSP170201712-201911

BLACK/BLACK,TRIM2#

main71910-0DM10-E0iZSP170201712-201911

NOBLE BROWN/NOBLE BROWN,TRIM0#

71931SUPPORT, FRONT SEAT HEADREST

main71930-02370-C0iNSP170201611-201911

W(LOCK)&W(BUTTON),BLACK,TRIM2#

sub71930-02370

main71930-02370-C0iZSP170201611-201911

W(LOCK)&W(BUTTON),BLACK,TRIM0#,2#

sub71930-02370

main71930-47020-C0iZSP170..05S..Q;ZSP170..07S..(N,Q)201911-202306

W(LOCK),BLACK,TRIM2#

sub71930-47020

main71930-47020-C0iZSP170..D,W201911-202104

W(LOCK),BLACK,TRIM0#,2#

sub71930-47020

main71931-02130-C0iNSP170201611-201911

W/O(LOCK),BLACK,TRIM2#

main71931-02130-C0iZSP170201611-201911

W/O(LOCK),BLACK,TRIM0#,2#

main71931-47020-C0iZSP170..D,W201911-202104

W/O(LOCK),BLACK,TRIM0#,2#

sub71931-47020

main71931-47020-C0iNSP170201911-202306

W/O(LOCK),BLACK,TRIM2#

sub71931-47020

72129HPROTECTOR, SEAT TRACK LOWER RAIL, REAR INNER

main72129-0D040iNSP170,ZSP170201911-202306

72138COVER, SEAT TRACK, OUTER LH

main72138-0D170-C0iNSP170201611-201911

BLACK,TRIM0#,2#

main72138-0D170-C0iZSP170201611-202306

BLACK,TRIM2#

72148BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH

main72148-52220iNSP170201611-202306

72211HANDLE, SEAT TRACK ADJUSTING

main72211-02140iNSP170201611-202306

main72211-0D210iZSP170201611-201712

72211CHANDLE, SEAT TRACK ADJUSTING

main72211-02140iNSP170201611-202306

main72211-0D210iZSP170201611-201712

72265MCOVER, SEAT TRACK UPPER RAIL, RH

main72265-0D060iNSP170,ZSP170201911-202012

main72265-0D120iZSP170..D,W;ZSP170..05S..N202012-202306

main72265-0D120iZSP170..05S..N202104

SEAT COVER MATERIAL-PU

72265NCOVER, SEAT TRACK UPPER RAIL, LH

main72265-0D070iNSP170,ZSP170201911-202012

main72265-0D120iZSP170..D,W;ZSP170..05S..N202012-202306

main72265-0D120iZSP170..D,W;ZSP170..05S..N202104

SEAT COVER MATERIAL-PU

72495HANDLE, VERTICAL ADJUSTING, LH

main72495-02050-C0iZSP170201611-201911

BLACK,TRIM0#,2#

main72495-02050-C0iZSP170201611-202306

BLACK,TRIM2#

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-0M010-C0iZSP170201611-201911

BLACK,TRIM0#,2#

main72526-0M010-C0iZSP170201611-202306

BLACK,TRIM2#

72820AARMREST ASSY, SEAT, LH

main72820-0D080-B0iZSP170201611-201911

DK.GRAY,TRIM0#,2#

main72820-0D080-B0iZSP170..N,Q201911

DK.GRAY,TRIM2#

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-52110iZSP170..Q,U201611-202306

7270252030BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-52030

7270268020BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-68020

9011910601

main90119-10601

9016740044

main90167-40044

9016850078

main90168-50078

9020115015

main90201-15015

9155310820

main91553-10820

9417060600

main94170-60600

9418560600

main94185-60600

9454201400

main94542-01400

39 parts on this diagram · 3 diagrams in section
