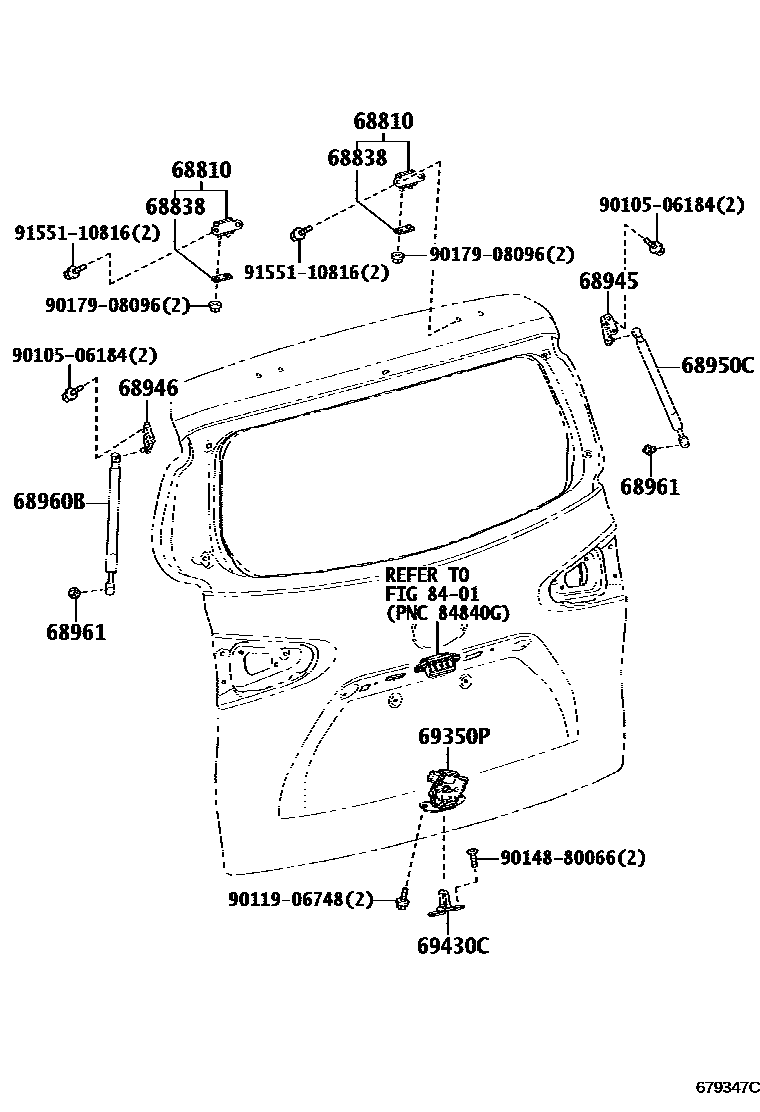

BACK DOOR LOCK & HANDLE

68810HINGE ASSY, BACK DOOR, UPPER

main68810-52130iNSP170,ZSP170201611-202306

68838PAD, BACK DOOR HINGE, NO.1

main68838-47020iNSP170,ZSP170201611-202306

T=1.5

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-0D090iNSP170,ZSP170201611-202306

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-0D020iNSP170,ZSP170201611-202306

68950CSTAY ASSY, BACK DOOR, RH

main68950-0D180iNSP170,ZSP170201611-202306

68960BSTAY ASSY, BACK DOOR, LH

main68960-0D140iNSP170,ZSP170201611-202306

68961BOLT, BACK DOOR STAY

main68961-52020iNSP170,ZSP170201611-202306

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-0D240iNSP170,ZSP170201611-202306

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-52050iNSP170,ZSP170201611-202306

8401

9010506184

main90105-06184

9011906748

main90119-06748

9014880066

main90148-80066

9017908096

main90179-08096

9155110816

main91551-10816

15 parts on this diagram · 1 diagram in section
