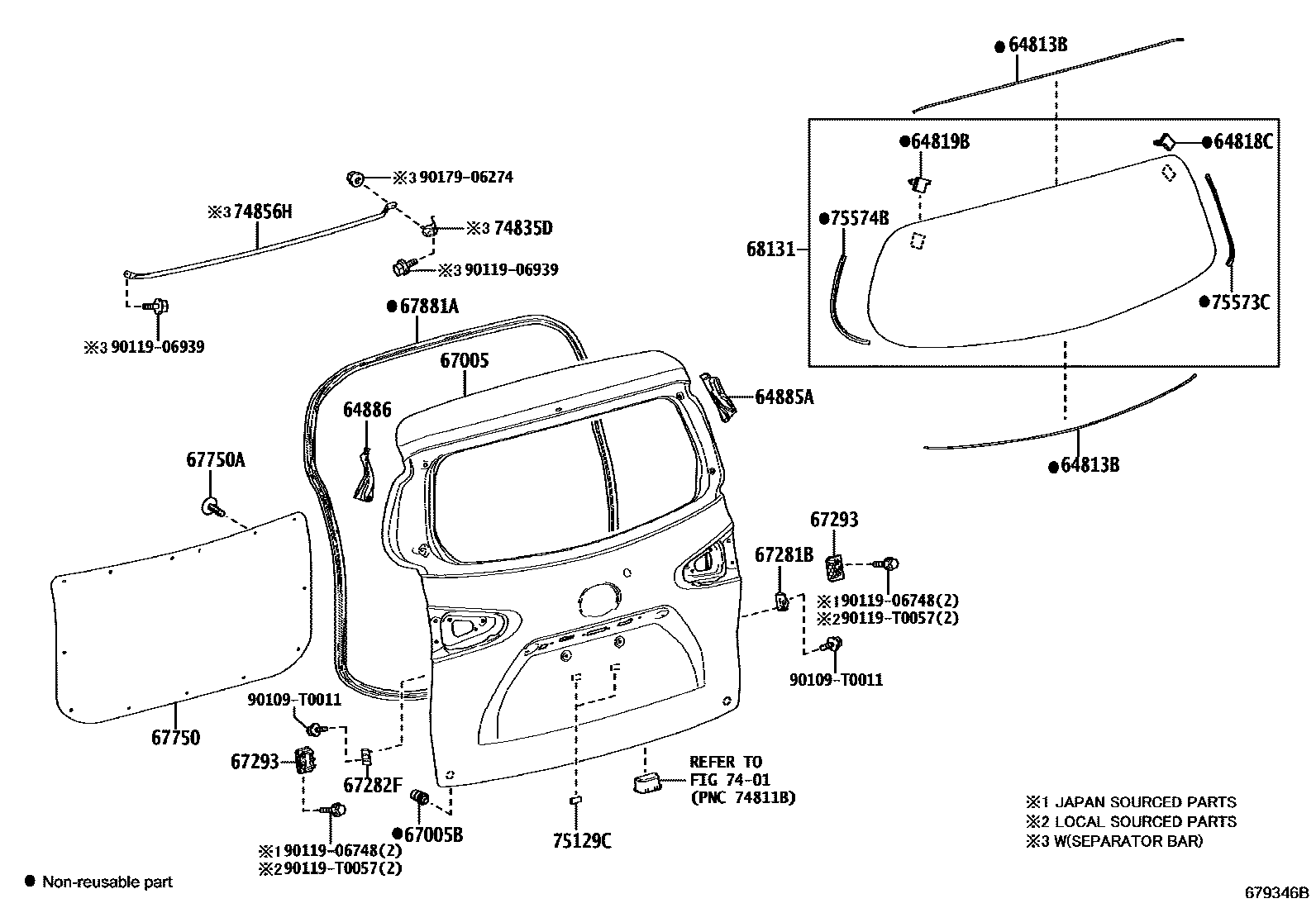

BACK DOOR PANEL & GLASS

64813BDAM, BACK WINDOW GLASS ADHESIVE

main64813-0D330iNSP170201611-202306

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-0D120iNSP170201611-202306

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-0D110iNSP170201611-202306

64885ACHANNEL, BACK WINDOW GLASS, RH

main64885-0D010iNSP170201611-202306

64886CHANNEL, BACK WINDOW GLASS, LH

main64886-0D010iZSP170201611-202306

67005PANEL SUB-ASSY, BACK DOOR

main67005-0D210iNSP170,ZSP170..05S201611-202306

main67005-0D670iZSP170..07S..(D,N)201611-202210

main67005-0D820iZSP170..07S..Q201911

main67005-0D840iZSP170..05S..N202210

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09142iNSP170,ZSP170¥100201611-202306

67281BSTOPPER, BACK DOOR, LOWER

main67281-0D010iNSP170,ZSP170201611-202306

67282FSTOPPER, BACK DOOR, LWR LH

main67281-0D010iNSP170,ZSP170201611-202306

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-0D010iNSP170,ZSP170201611-202306

67750BOARD ASSY, BACK DOOR TRIM

main67750-0D190-B0iZSP170..N,Q201611-201911

GRAY,TRIM0#,2#

main67750-0D190-B0iZSP170201611-202306

GRAY,TRIM2#

67750ACLIP(FOR BACK DOOR TRIM)

main90467-08186-C3iZSP170201611-201911

BLACK,TRIM0#,2#

sub90467-08186¥120

main90467-08186-C3iZSP170201611-202306

BLACK,TRIM2#

sub90467-08186¥120

67881AWEATHERSTRIP, BACK DOOR

main67881-0D210iNSP170,ZSP170201611-202306

68131GLASS, BACK DOOR

main68105-0D380iNSP170,ZSP170201611-202306

7401

74835DBRACKET, SEPARATOR BAR

main74835-0D010iNSP170,ZSP170..05S201611-202306

74856HBAR, SEPARATOR

main74856-0D010iNSP170,ZSP170..05S201611-202306

75129CCUSHION, REAR LICENCE PLATE

main75129-0D030iNSP170,ZSP170201611-202306

75573CMOULDING, BACK WINDOW, OUTSIDE

main75573-0D070iNSP170,ZSP170201611-202306

75574BMOULDING, BACK WINDOW, OUTSIDE LH

main75574-0D020iNSP170,ZSP170201611-202306

90109T0011

main90109-T0011

9011906748

main90119-06748¥110

9011906939

main90119-06939¥60

90119T0057

main90119-T0057

9017906274

main90179-06274¥70

25 parts on this diagram · 1 diagram in section
