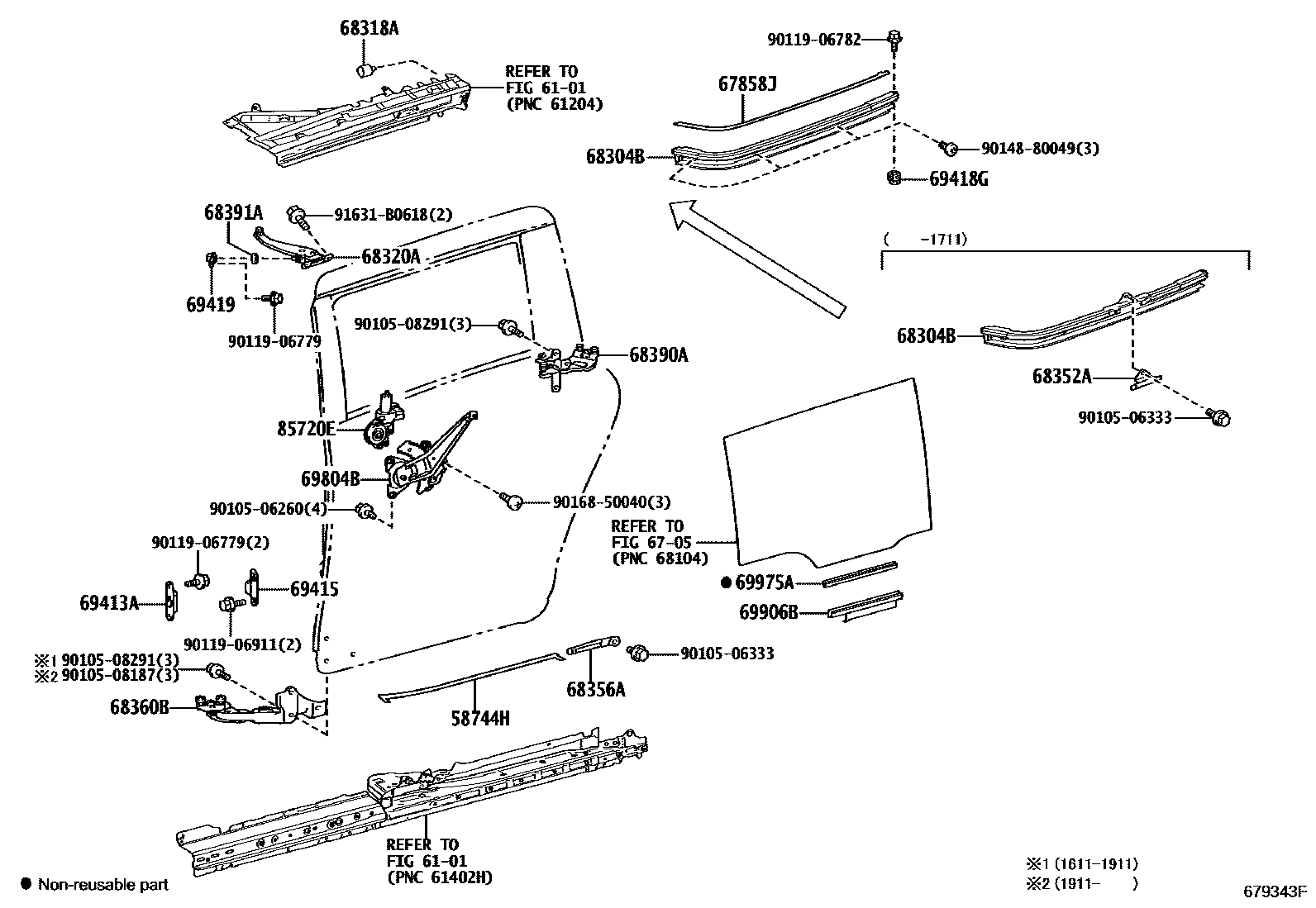

REAR DOOR WINDOW REGULATOR & HINGE

0001 1W/O(POWER SLIDE DOOR) LH 0002 1W(POWER SLIDE DOOR) LH 0003 1W/O(POWER SLIDE DOOR) RH 0004 1W(POWER SLIDE DOOR) RH

58744HPROTECTOR, SLIDE DOOR PANEL, LH

main58744-52050iNSP170,ZSP170201611-202306

6101

6705

67858JPROTECTOR, SLIDE DOOR RAIL, LH

main67858-52100iZSP170..07S..Q201611-202306

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-0D031iNSP170201712-202306

main68304-0D041iZSP170..07S..N201712-201911

AUTO & EASY CLOSER DOOR-W(*POSD(RH & LH) & ONE PUSH OPEN(*DRS))

main68304-52060iNSP170,ZSP170..D,N,Q201611-201711

main68304-52070iZSP170..U201611-201711

68318ASTOPPER, SLIDE DOOR UPPER RAIL, LH

main68317-0D010iNSP170,ZSP170201611-202306

68320AROLLER ASSY, SLIDE DOOR, UPPER, LH

main68320-0D010iNSP170,ZSP170201611-202306

68352APLATE, SLIDE DOOR RAIL PROTECTOR, NO.1 LH

main68352-52030iNSP170,ZSP170201611-201712

68356APLATE, SLIDE DOOR RAIL PROTECTOR, NO.3 LH

main68356-0D030iNSP170,ZSP170201611-202306

68360BROLLER ASSY, SLIDE DOOR, LOWER LH

main68360-0D030iZSP170201611-202306

68390AHINGE ASSY, SLIDE DOOR, CENTER LH

main68390-0D020iNSP170201611-202306

68391CUSHION, SLIDE DOOR UPPER ROLLER, RH

main68391-28040iNSP170201611-202306

68391ACUSHION, SLIDE DOOR UPPER ROLLER, LH

main68391-28040iNSP170,ZSP170201611-202306

69413ASTOP, FRONT SLIDE DOOR DOWN MALE

main69046-52010iNSP170,ZSP170201611-202306

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-52010iNSP170,ZSP170201611-202306

69418STOP, SLIDE DOOR OPEN

main69418-52010iNSP170,ZSP170201611-202306

69418GCUSHION, SLIDE DOOR OPEN STOPPER, LH

main69417-52010iNSP170,ZSP170201611-202306

69419STOP, SLIDE DOOR OPEN, LH

main69419-52010iNSP170,ZSP170201611-202306

69804BREGULATOR SUB-ASSY, SLIDE DOOR WINDOW, LH

main69804-0D220iNSP170,ZSP170201611-202306

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-02130iNSP170,ZSP170201611-202306

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-52010iNSP170,ZSP170201611-202306

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-0D380iNSP170,ZSP170201611-202306

9010506260

main90105-06260

9010506333

main90105-06333

9010508187

main90105-08187

9010508291

main90105-08291

9011906779

main90119-06779

9011906782

main90119-06782

9011906911

main90119-06911

9014880049

main90148-80049

9016850040

main90168-50040

91631B0618

main91631-B0618

32 parts on this diagram · 4 diagrams in section
