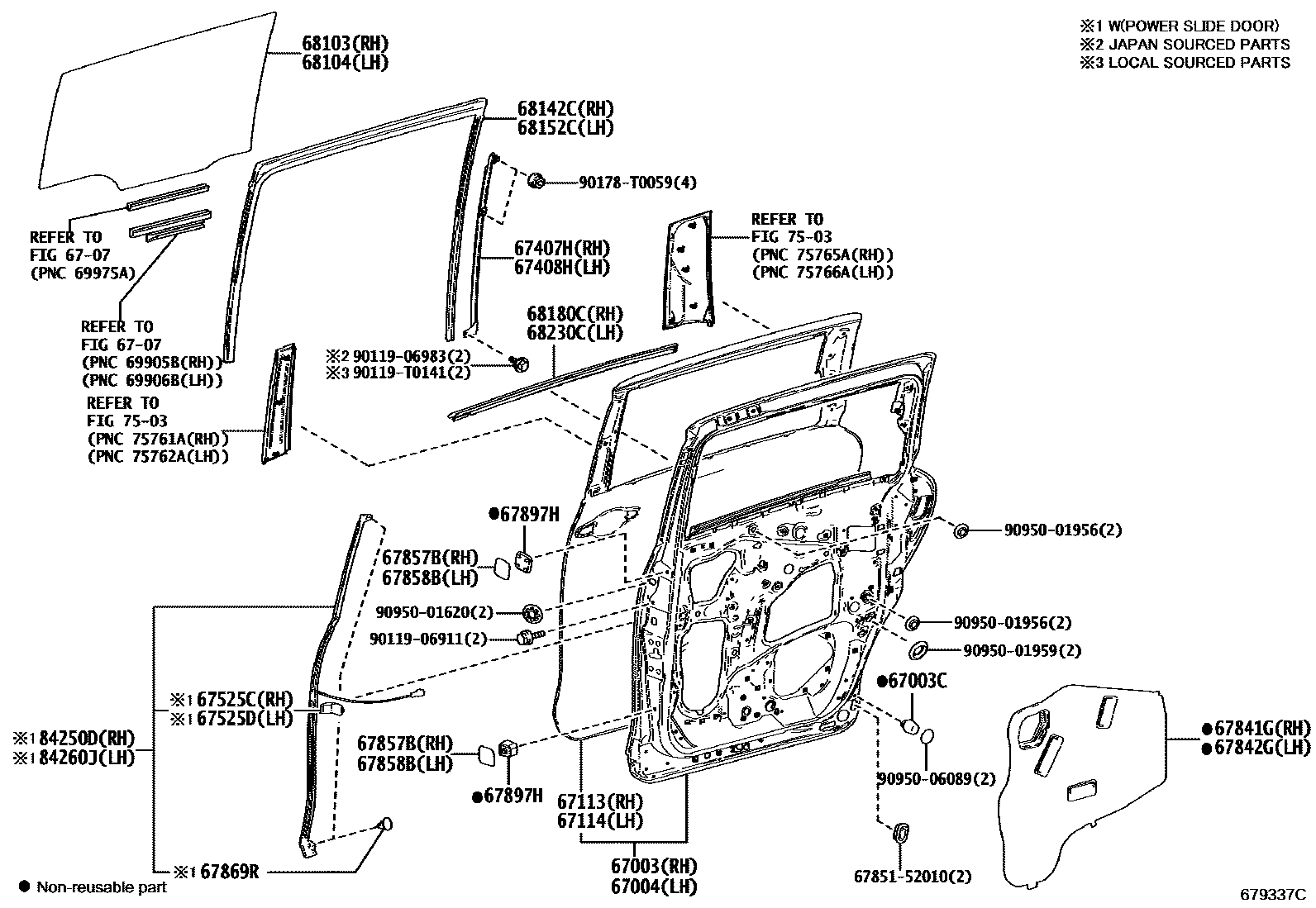

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-0D400iZSP170..07S..N201911

AUTO & EASY CLOSER DOOR-W(*POSD(RH & LH) & ONE PUSH OPEN(*DRS))

main67003-0D400iZSP170..Q,U201611-201911

AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS))

main67003-0D410iNSP170,ZSP170..D,N201611-202306

67003CCUSHION, REAR DOOR PANEL

main67897-0D030iNSP170201611-202306

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-0D400iZSP170..07S..Q201712-201911

AUTO & EASY CLOSER DOOR-W(*POSD(RH & LH) & ONE PUSH OPEN(*DRS))

main67004-0D400iZSP170..U201611-201911

main67004-0D410iZSP170..07S..Q201611-202306

6707

67113PANEL, REAR DOOR, OUTER RH

main67113-0D080iNSP170,ZSP170201611-202306

67114PANEL, REAR DOOR, OUTER LH

main67114-0D080iNSP170201611-202306

67407HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH

main67407-0D230iNSP170,ZSP170201611-202306

67408HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH

main67408-0D230iZSP170201611-202306

67525CCOVER, SLIDE DOOR PANEL, LOWER RH

main67525-52010iZSP170..05S..(N,W)201911

AUTO & EASY CLOSER DOOR-W(*POSD(RH & LH) & ONE PUSH OPEN(*DRS))

main67525-52010iZSP170..Q,U201611-201911

AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS))

67525DCOVER, SLIDE DOOR PANEL, LOWER LH

main67526-52010iZSP170..U201611-201911

main67526-52010iZSP170..07S..Q201712-201911

AUTO & EASY CLOSER DOOR-W(*POSD(RH & LH) & ONE PUSH OPEN(*DRS))

67841GCOVER, SLIDE DOOR SERVICE HOLE, RH

main67841-0D370iNSP170201611-202306

67842GCOVER, SLIDE DOOR SERVICE HOLE, LH

main67842-0D220iZSP170201611-202306

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-0D050iNSP170201611-202306

UPPER

main67857-0D060iZSP170201611-202306

LOWER

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-0D040iZSP170201611-202306

UPPER

main67858-0D050iNSP170201611-202306

LOWER

67869RCLIP(FOR POWER SLIDE DOOR SENSOR)

main67869-28020iZSP170..07S..N201712-201911

AUTO & EASY CLOSER DOOR-W(*POSD(RH & LH) & ONE PUSH OPEN(*DRS))

main67869-28020iZSP170..05S..Q201611-201911

AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS))

67897HCUSHION, REAR DOOR

main67897-0D010iZSP170201611-202306

UPPER

main67897-0D020iNSP170,ZSP170201611-202306

LOWER

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-0D550iNSP170,ZSP170201611-202306

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-0D550iNSP170,ZSP170201611-202306

68142CRUN, REAR DOOR GLASS, RH

main68142-0D400iNSP170,ZSP170201611-202306

68152CRUN, REAR DOOR GLASS, LH

main68152-0D360iNSP170,ZSP170201611-202306

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-0D470iNSP170,ZSP170201611-202306

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-0D420iNSP170201611-202306

7503

84250DSENSOR ASSY, POWER SLIDE DOOR, RH

main84250-52280iZSP170..05S..N201611-201911

AUTO & EASY CLOSER DOOR-WITH(*POSD(*PSD) & ONE PUSH OPEN(*DRS))

main84250-52280iZSP170..Q201911

AUTO & EASY CLOSER DOOR-W(*POSD(RH & LH) & ONE PUSH OPEN(*DRS))

84260JSENSOR ASSY, POWER SLIDE DOOR, LH

main84260-52040iZSP170..U201611-201911

main84260-52040iZSP170..07S..Q201712-201911

AUTO & EASY CLOSER DOOR-W(*POSD(RH & LH) & ONE PUSH OPEN(*DRS))

6785152010WEATHERSTRIP, CENTER DOOR, SIDE, FRONT

main67851-52010

9011906911

main90119-06911

9011906983

main90119-06983

90119T0141

main90119-T0141

90178T0059

main90178-T0059

9095001620

main90950-01620

9095001956

main90950-01956

9095001959

main90950-01959

9095006089

main90950-06089

34 parts on this diagram · 2 diagrams in section
