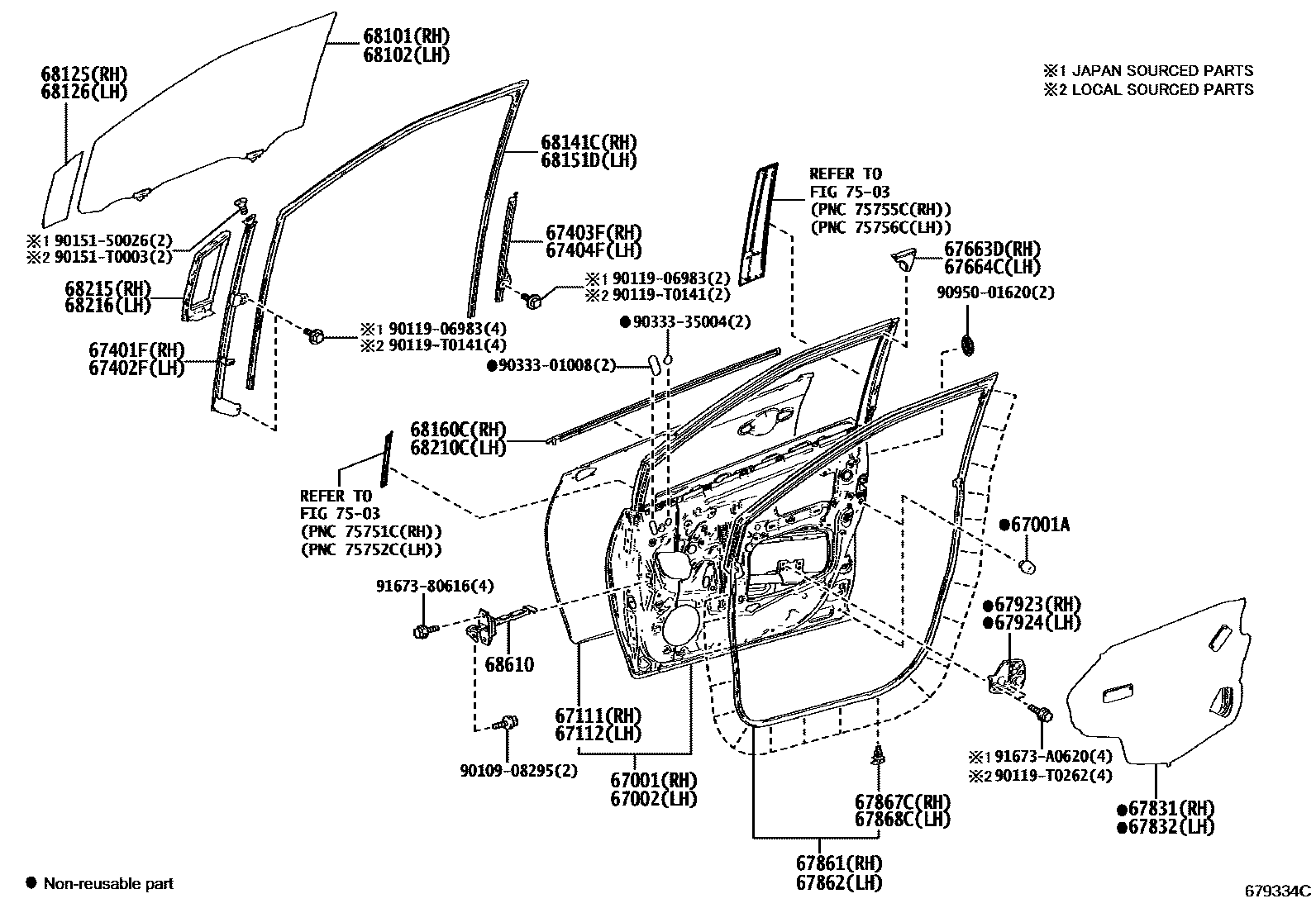

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0D410iNSP170201911-202306

67001ACUSHION, FRONT DOOR PANEL

main90541-09124×4iNSP170,ZSP170201611-201911

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0D420iNSP170,ZSP170201611-201911

67111PANEL, FRONT DOOR, OUTER RH

main67111-0D120iNSP170,ZSP170201611-201911

67112PANEL, FRONT DOOR, OUTER LH

main67112-0D120iNSP170,ZSP170201611-201911

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-0D110iNSP170,ZSP170201611-201911

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-0D110iNSP170,ZSP170201611-201911

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0D170iNSP170,ZSP170201611-201911

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0D170iNSP170,ZSP170201611-201911

67663DGARNISH, DOOR FRAME, RH

main67663-0D050iNSP170,ZSP170201611-201911

67664CGARNISH, DOOR FRAME, LH

main67664-0D050iNSP170,ZSP170201611-201911

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0D380iNSP170,ZSP170201611-201911

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0D260iNSP170,ZSP170201611-201911

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0D240iNSP170,ZSP170201611-201911

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0D240iNSP170201911-202306

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×20iNSP170201911-202306

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×20iNSP170,ZSP170201611-201911

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-0D240iNSP170,ZSP170201611-201911

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-0D250iNSP170,ZSP170201611-201911

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68110-0D500iNSP170,ZSP170201611-201911

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68120-0D500iNSP170,ZSP170201611-201911

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-0D090iNSP170,ZSP170201611-201911

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-0D080iNSP170,ZSP170201611-201911

68141CRUN, FRONT DOOR GLASS, RH

main68141-0D310iNSP170,ZSP170201611-201911

68151DRUN, FRONT DOOR GLASS, LH

main68151-0D270iNSP170,ZSP170201611-201911

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-0D350iZSP170201911

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-0D350iNSP170,ZSP170201611-201911

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-0D070iNSP170,ZSP170201611-201911

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-0D070iNSP170,ZSP170201611-201911

68610CHECK ASSY, FRONT DOOR

main68610-0D230×2iNSP170201911-202306

7503

9010908295

main90109-08295

9011906983

main90119-06983

90119T0141

main90119-T0141

90119T0262

main90119-T0262

9015150026

main90151-50026

90151T0003

main90151-T0003

9033301008

main90333-01008

9033335004

main90333-35004

9095001620

main90950-01620

9167380616

main91673-80616

91673A0620

main91673-A0620

42 parts on this diagram · 2 diagrams in section
