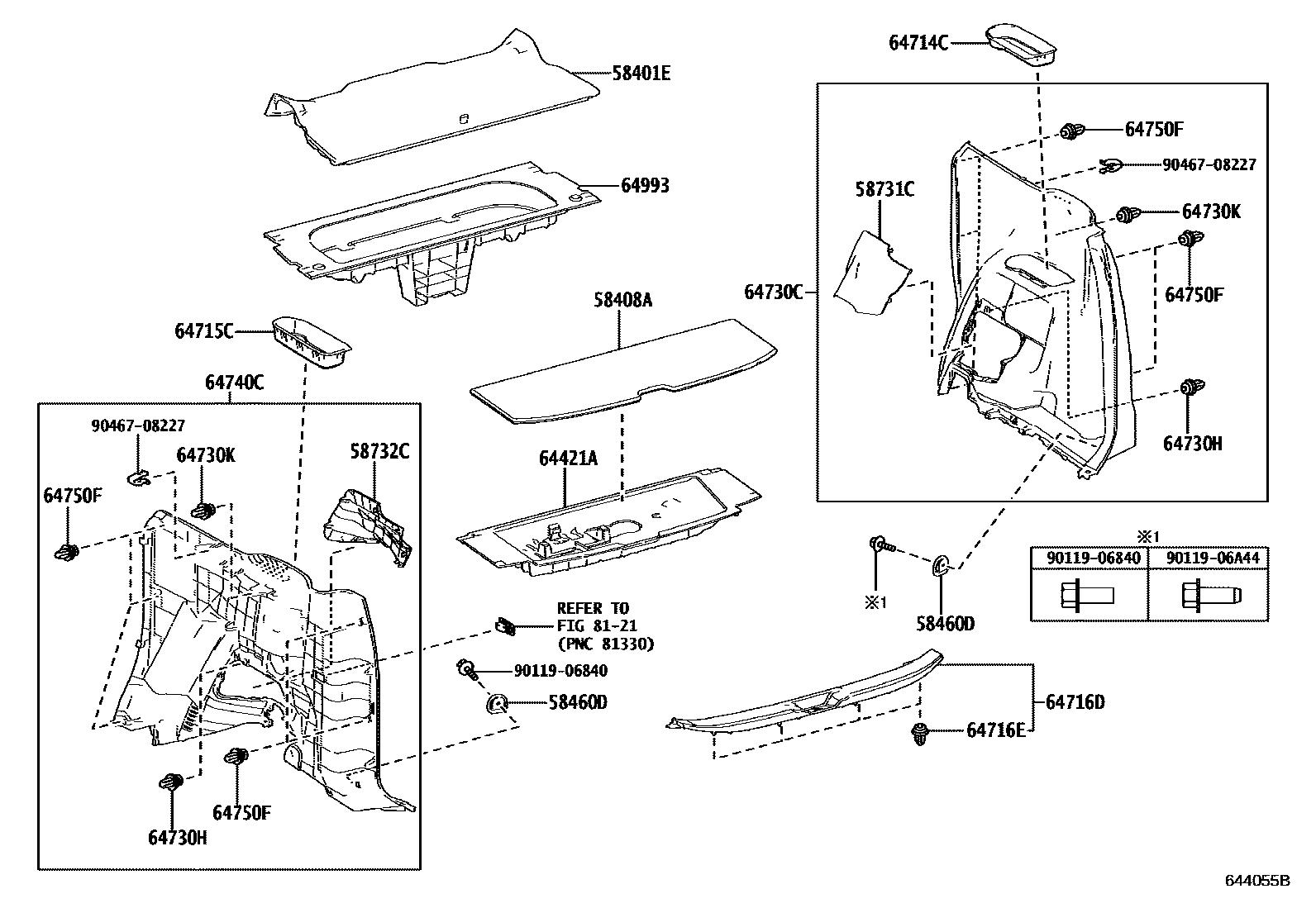

DECK BOARD & DECK TRIM COVER

0001 1 0002 1 0003 1 0004 1

58401EBOARD SUB-ASSY, DECK

main58401-0D020-B0iNSP170201611-201911

GRAY,TRIM0#,2#

main58401-0D020-B0iZSP170..05S201611-202306

GRAY,TRIM2#

main58401-0D030-B0iZSP170..07S201611-201911

GRAY,TRIM0#,2#

main58401-0D030-B0iZSP170..D201911

GRAY,TRIM2#

58408ABOARD SUB-ASSY, DECK, NO.2

main58408-0D030-B0iZSP170..D,W201611-201911

GRAY,TRIM0#,2#

main58408-0D030-B0iZSP170201611-202306

GRAY,TRIM2#

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020iNSP170201611-202306

58731CCAP, REAR ABSORBER

main58731-0D070-A0iZSP170..N,Q201611-201911

FROMAGE,TRIM0#

main58731-0D070-C0iNSP170201611-202306

BLACK,TRIM2#

58732CCAP, REAR ABSORBER

main58732-0D070-A0iZSP170201611-201911

FROMAGE,TRIM0#

main58732-0D070-C0iNSP170,ZSP170201611-202306

BLACK,TRIM2#

64421ATRAY, LUGGAGE COMPARTMENT

main64421-0D020iNSP170,ZSP170201611-202306

64714CCOVER, DECK SIDE TRIM, RH

main64714-0D080-A0iZSP170..07S201611-201911

FROMAGE,TRIM0#

main64714-0D080-C0iZSP170..07S201611-201911

BLACK,TRIM2#

main64714-0D090-A0iZSP170..05S..(N,Q)201611-201911

FROMAGE,TRIM0#

main64714-0D090-C0iZSP170..05S201611-202306

BLACK,TRIM2#

64715CCOVER, DECK SIDE TRIM, LH

main64715-0D110-A0iZSP170..07S201611-201911

FROMAGE,TRIM0#

main64715-0D110-C0iZSP170..07S201611-201911

BLACK,TRIM2#

main64715-0D120-A0iZSP170..05S..(N,Q)201611-201911

FROMAGE,TRIM0#

main64715-0D120-C0iZSP170..05S201611-202306

BLACK,TRIM2#

64716DCOVER, DECK TRIM, REAR

main64716-0D220-A0iZSP170201611-201911

FROMAGE,TRIM0#

main64716-0D220-C0iNSP170201611-202306

BLACK,TRIM2#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-10161iNSP170,ZSP170201611-202306

64730CBOARD, DECK TRIM SIDE, RH

main64730-0D460-A0iZSP170..05S..(N,Q)201611-201911

FROMAGE,TRIM0#

main64730-0D460-C0iZSP170..05S201611-202306

BLACK,TRIM2#

main64730-0D470-A0iZSP170..07S201611-201911

FROMAGE,TRIM0#

main64730-0D470-C0iZSP170..07S201611-201911

BLACK,TRIM2#

64730HCLIP(FOR DECK TRIM SIDE PANEL)

main90467-09232iNSP170201911-202306

main90467-09232iNSP170,ZSP170..05S201611-201911

RED

64730KCLIP(FOR DECK SIDE TRIM PANEL)

main90467-10188iNSP170,ZSP170201611-202306

BLUE

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-0D460-A0iZSP170..05S..(N,Q)201611-201911

FROMAGE,TRIM0#

main64740-0D460-C0iNSP170,ZSP170..05S201611-202306

BLACK,TRIM2#

main64740-0D470-A0iZSP170..07S201611-201911

FROMAGE,TRIM0#

main64740-0D470-C0iZSP170..07S201611-201911

BLACK,TRIM2#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-10161iNSP170,ZSP170201611-202306

64993BOX, DECK FLOOR, REAR

main64993-0D050iNSP170,ZSP170..05S201611-202306

8121

9011906840

main90119-06840

9011906A44

main90119-06A44

9046708227

main90467-08227

20 parts on this diagram · 4 diagrams in section
