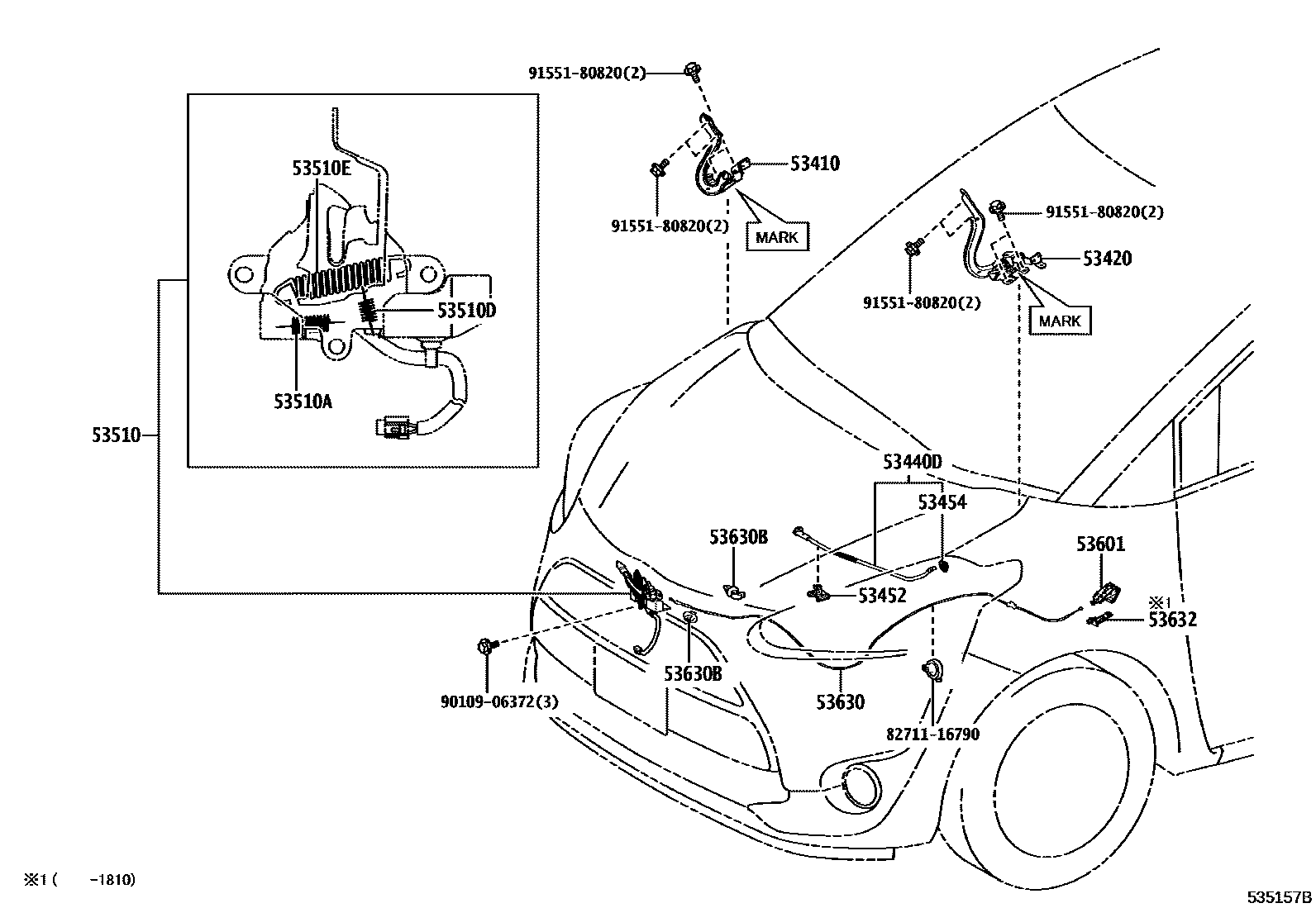

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-0D640iNSP170,ZSP170201611-201702

NO MARK

sub53410-0D641

main53410-0D641iNSP170,ZSP170201703-201712

NO MARK

sub53410-0D642

main53410-0D642iNSP170,ZSP170201801-202306

NO MARK

main53410-0D650iNSP170,ZSP170201611-201702

MARK = +

sub53410-0D651

main53410-0D651iNSP170,ZSP170201703-201712

MARK = +

sub53410-0D652

main53410-0D652iZSP170201801-202306

MARK = +

main53410-0D660iNSP170,ZSP170201611-201702

MARK = -

sub53410-0D661

main53410-0D661iNSP170,ZSP170201703-201712

MARK = -

sub53410-0D662

main53410-0D662iNSP170201801-202306

MARK = -

53420HINGE ASSY, HOOD, LH

main53420-0D640iNSP170,ZSP170201611-201702

NO MARK

sub53420-0D641

main53420-0D641iNSP170,ZSP170201703-201712

NO MARK

sub53420-0D642

main53420-0D642iNSP170201801-202306

NO MARK

main53420-0D650iNSP170,ZSP170201611-201702

MARK = +

sub53420-0D651

main53420-0D651iNSP170,ZSP170201703-201712

MARK = +

sub53420-0D652

main53420-0D652iNSP170,ZSP170201801-202306

MARK = +

main53420-0D660iNSP170,ZSP170201611-201702

MARK = -

sub53420-0D661

main53420-0D661iNSP170,ZSP170201703-201712

MARK = -

sub53420-0D662

main53420-0D662iNSP170201801-202306

MARK = -

53440DSUPPORT ASSY, HOOD

main53440-0D190iNSP170,ZSP170201611-202306

53452HOLDER, HOOD STAY

main53452-0D130iNSP170201611-202306

53454CLIP, HOOD SUPPORT ROD

main53454-12030iNSP170,ZSP170201611-202306

53510LOCK ASSY, HOOD

main53510-0D690iZSP170..Q,U201611-201911

main53510-0D700iNSP170,ZSP170..D,N201611-202306

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-T0005iNSP170,ZSP170201611-202306

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-T0004iNSP170,ZSP170201611-202306

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-16077iNSP170,ZSP170201611-202306

WD=1.6,CW=12

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-0D080-A1iZSP170..N,Q201810-201911

FROMAGE,TRIM0#

main53601-0D080-C0iZSP170201810-202306

BLACK,TRIM2#

main53601-52010-A7iZSP170201611-201810

FROMAGE,TRIM0#

sub53601-52010

main53601-52010-C0iNSP170,ZSP170201611-201612

BLACK,TRIM2#

sub53601-52010

main53601-52010-C1iNSP170,ZSP170201612-201810

BLACK,TRIM2#

sub53601-52010

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0D280iNSP170,ZSP170201611-201810

main53630-0D281iNSP170,ZSP170201810-202306

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iNSP170,ZSP170201611-202306

53632HOLDER, HOOD LOCK CONTROL CABLE

main53632-30010iNSP170,ZSP170201611-201810

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

9010906372

main90109-06372

9155180820

main91551-80820

16 parts on this diagram · 1 diagram in section
