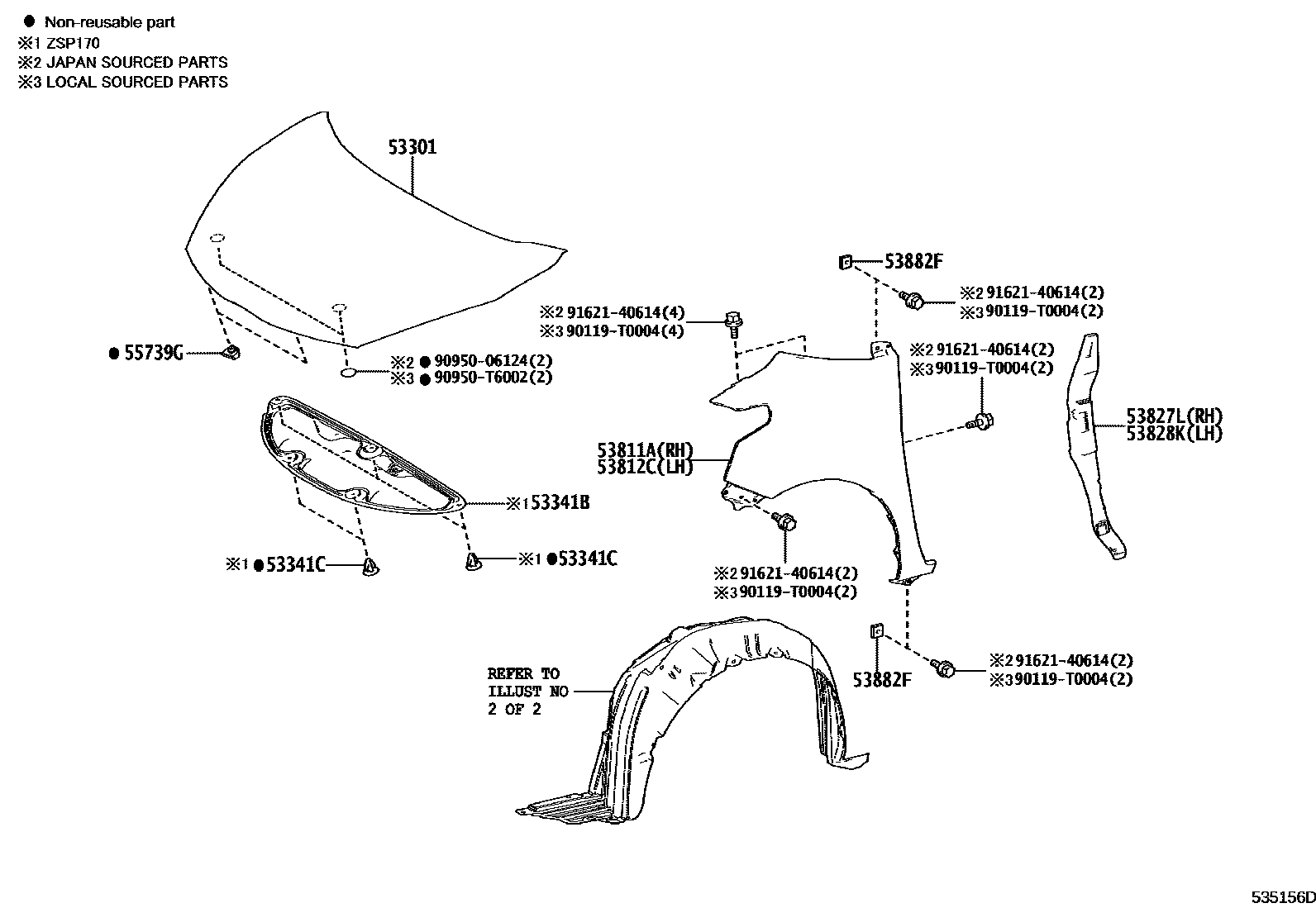

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-0D340iNSP170,ZSP170201611-202306

53341BINSULATOR, HOOD

main53341-0D370iZSP170201611-201911

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iZSP170201611-201911

(J)

main90467-T0014iZSP170201611-201911

(L)

53811APANEL, FRONT FENDER, RH

main53811-0D250iNSP170,ZSP170201611-202306

53812CPANEL, FRONT FENDER, LH

main53812-0D250iNSP170,ZSP170201611-202306

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0D200iZSP170201611-201911

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0D200iZSP170201611-201911

53882FSEAL, FRONT FENDER

main53882-33060iNSP170,ZSP170201611-202306

55739GSTOPPER, HOOD

main55738-0D060iNSP170,ZSP170201611-202306

90119T0004

main90119-T0004

9095006124

main90950-06124

90950T6002

main90950-T6002

9162140614

main91621-40614

13 parts on this diagram · 2 diagrams in section
