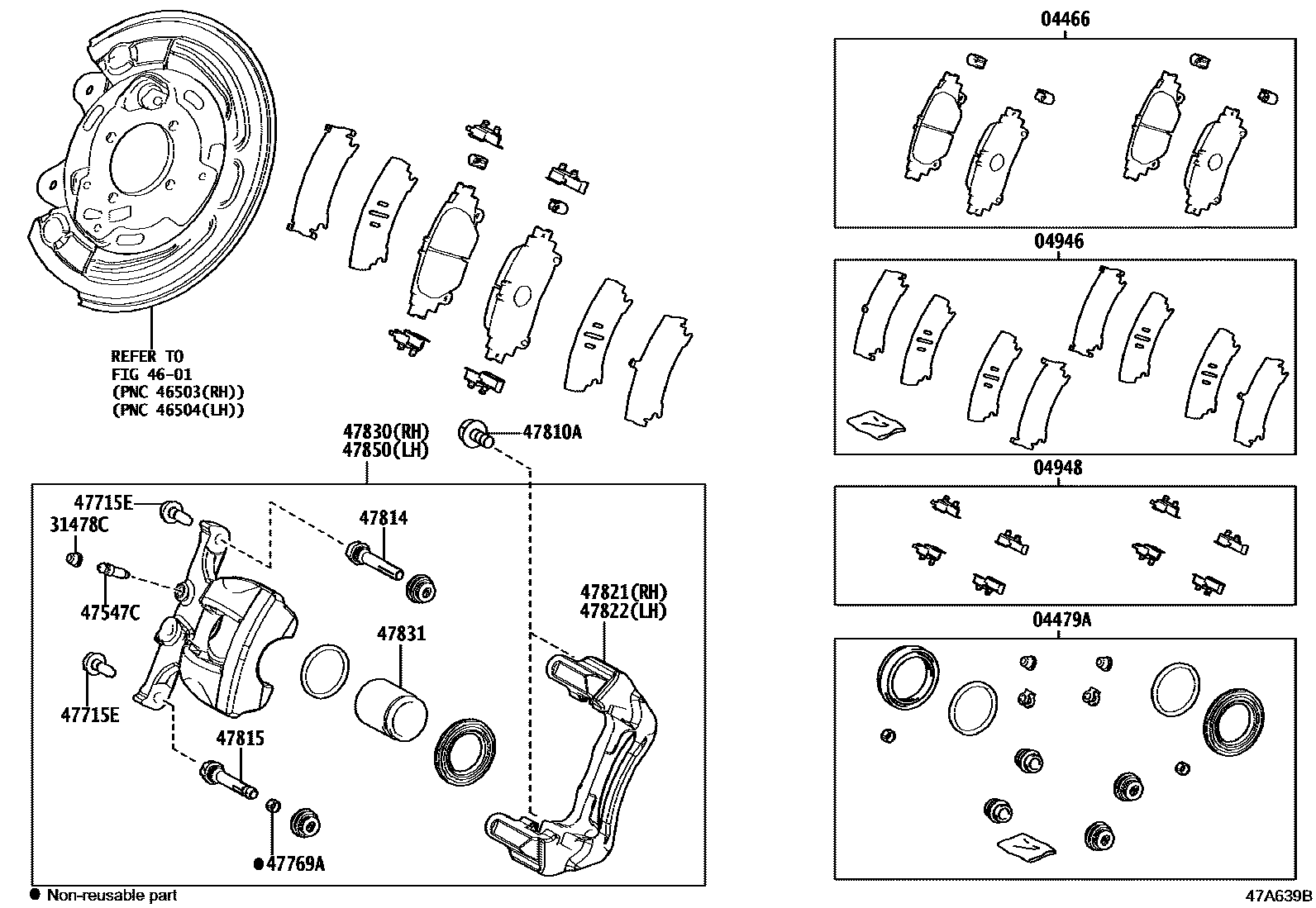

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-52180iNSP170,ZSP170201611-202306

MARK AK PA561

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-0D060iNSP170,ZSP170201611-202306

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-0D010iNSP170,ZSP170201611-202306

04948FITTING KIT, DISC BRAKE, REAR

main04948-30240iNSP170,ZSP170201611-202306

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iNSP170,ZSP170201611-202306

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iNSP170,ZSP170201611-201911

main90016-AJ004iNSP170201911-202306

47715EBOLT(FOR REAR DISC BRAKE CYLINDER SLIDE)

main90080-10247iNSP170,ZSP170201611-202306

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-33240iNSP170,ZSP170201611-202306

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-12430iNSP170,ZSP170201611-202306

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-0D060iNSP170,ZSP170201611-202306

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-0D060iNSP170,ZSP170201611-202306

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-0D060iNSP170,ZSP170201611-202306

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-0D060iNSP170,ZSP170201611-202306

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-0D060iNSP170,ZSP170201611-202306

47831PISTON, REAR DISC BRAKE

main47831-30330iNSP170,ZSP170201611-202306

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-0D060iNSP170,ZSP170201611-202306

17 parts on this diagram · 1 diagram in section
