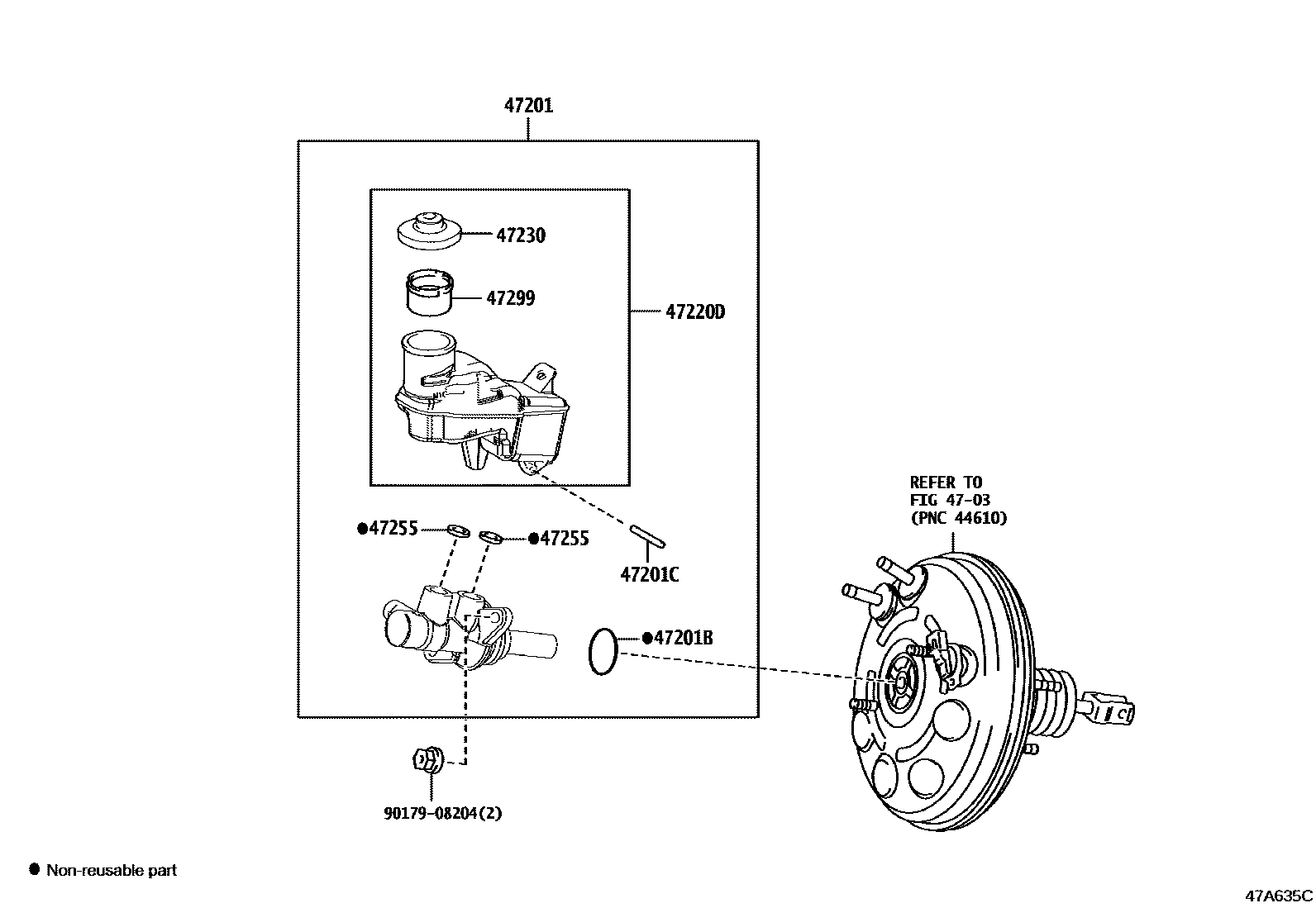

BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-0D600iNSP170201911-202306

main47201-0D790iNSP170201611-201911

main47201-0D800iZSP170201611-201911

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iNSP170201611-202306

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iNSP170,ZSP170201611-202306

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-0D440iNSP170201611-202306

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D440iNSP170,ZSP170201611-202306

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iNSP170,ZSP170201611-202306

sub90016-AT001

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iNSP170,ZSP170201611-202306

9017908204

main90179-08204

9 parts on this diagram · 1 diagram in section
