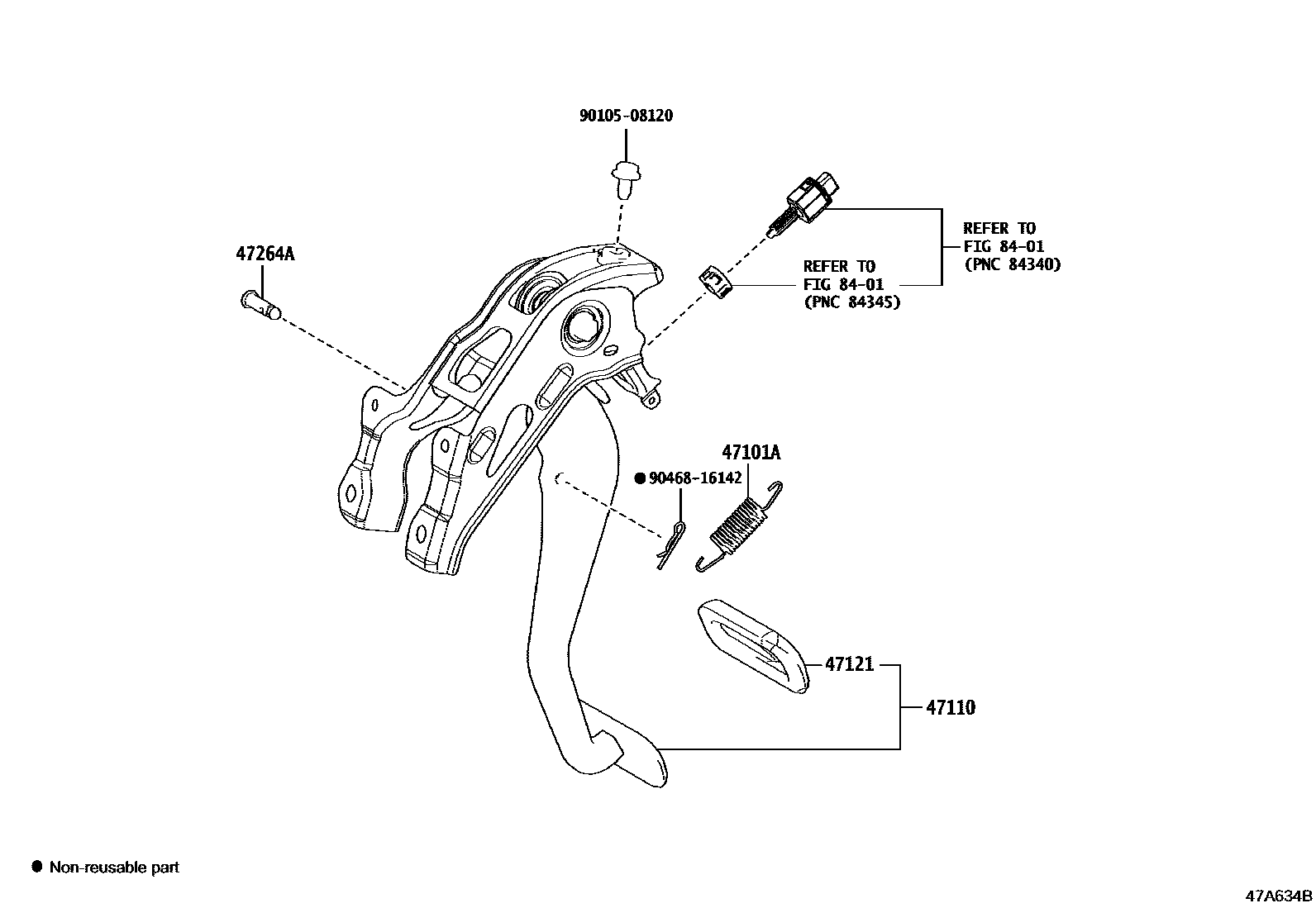

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14088iNSP170¥120201911-202306

MADE IN JAPAN

main90506-14088iNSP170,ZSP170¥120201611-201911

main90506-T0015iNSP170201911-202306

MADE IN THAILAND

47110SUPPORT ASSY, BRAKE PEDAL

main47110-0D590iZSP170201611-202306

47121PAD, BRAKE PEDAL

main47121-02060iNSP170,ZSP170201611-202306

47264APIN(FOR PUSH ROD)

main90249-08051iNSP170,ZSP170¥170201611-202306

8401

9010508120

main90105-08120¥90

9046816142

main90468-16142¥70

7 parts on this diagram · 1 diagram in section
