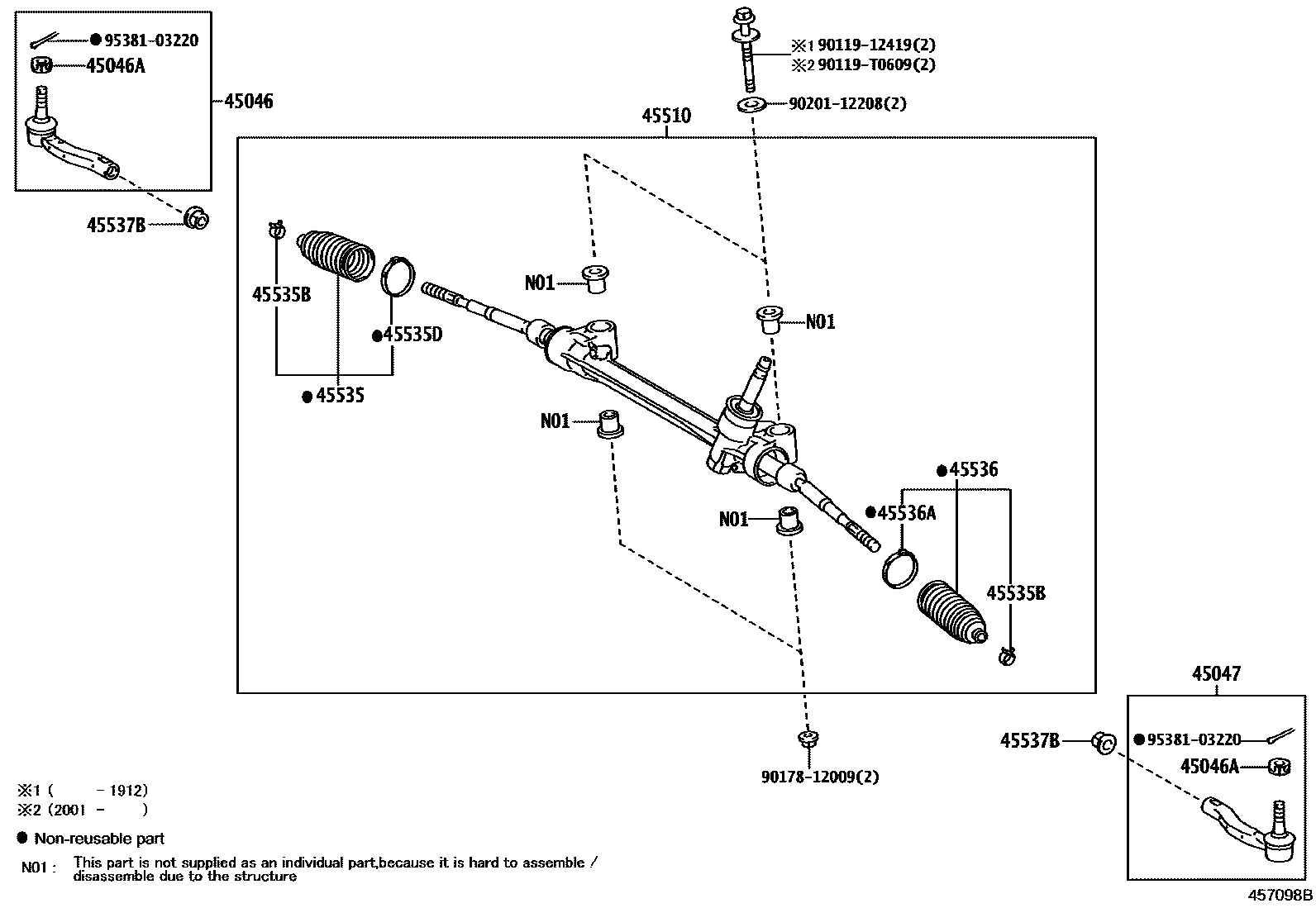

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-09720iNSP170201611-202306

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iNSP170,ZSP170¥130201611-202306

45047END SUB-ASSY, TIE ROD, LH

main45047-09370iNSP170,ZSP170201611-202306

45510GEAR ASSY, STEERING

main45510-0D470iNSP170,ZSP170..D,N201611-202306

main45510-0D580iZSP170..Q,U201611-201911

45535BOOT, STEERING RACK, NO.1

main45535-09360iZSP170201611-202306

45535BCLIP(FOR STEERING RACK BOOT)

main45537-0D100iNSP170,ZSP170201611-202306

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-0D110iNSP170,ZSP170201611-202306

45536BOOT, STEERING RACK, NO.2

main45535-09360iNSP170,ZSP170201611-202306

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-0D110iNSP170,ZSP170201611-202306

45537BNUT, RACK END LOCK

main90170-14012iNSP170,ZSP170¥110201611-202306

9011912419

main90119-12419¥360

90119T0609

main90119-T0609

9017812009

main90178-12009¥120

9020112208

main90201-12208¥190

9538103220

main95381-03220¥70

15 parts on this diagram · 1 diagram in section
