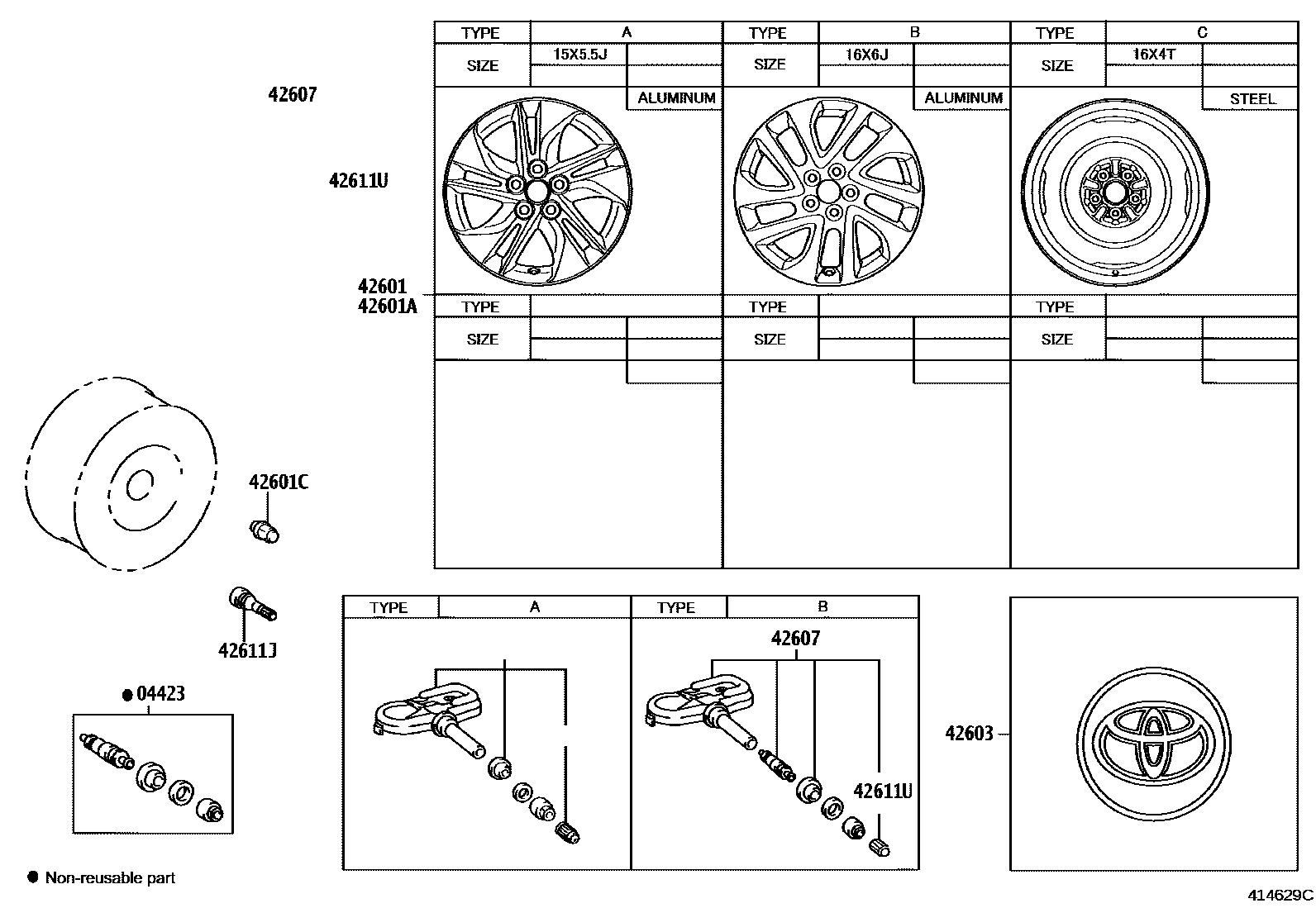

DISC WHEEL & WHEEL CAP

0001 1 0002 1

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33060iNSP170,ZSP170201611-201911

42601WHEEL, DISC

main42611-0DA60iNSP170,ZSP170..D,N,W201611-201911

15X5.5J,#,TYPE A:REFER ILLUST.

main42611-0DA70iZSP170..Q,U201611-201911

16X6J,#,TYPE B:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-0M020iNSP170,ZSP170201611-202012

16X4T,TYPE C:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033iNSP170,ZSP170201611-201911

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-52170iNSP170,ZSP170201611-201911

*ALU

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-52020iNSP170,ZSP170201611-202407

TYPE A:REFER ILLUST.

main42607-52050iZSP170202408

TYPE B:REFER ILLUST.

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iNSP170,ZSP170201611-202012

42611UCAP, TIRE VALVE

main90942-05039iNSP170,ZSP170201611-201911

8 parts on this diagram · 2 diagrams in section
