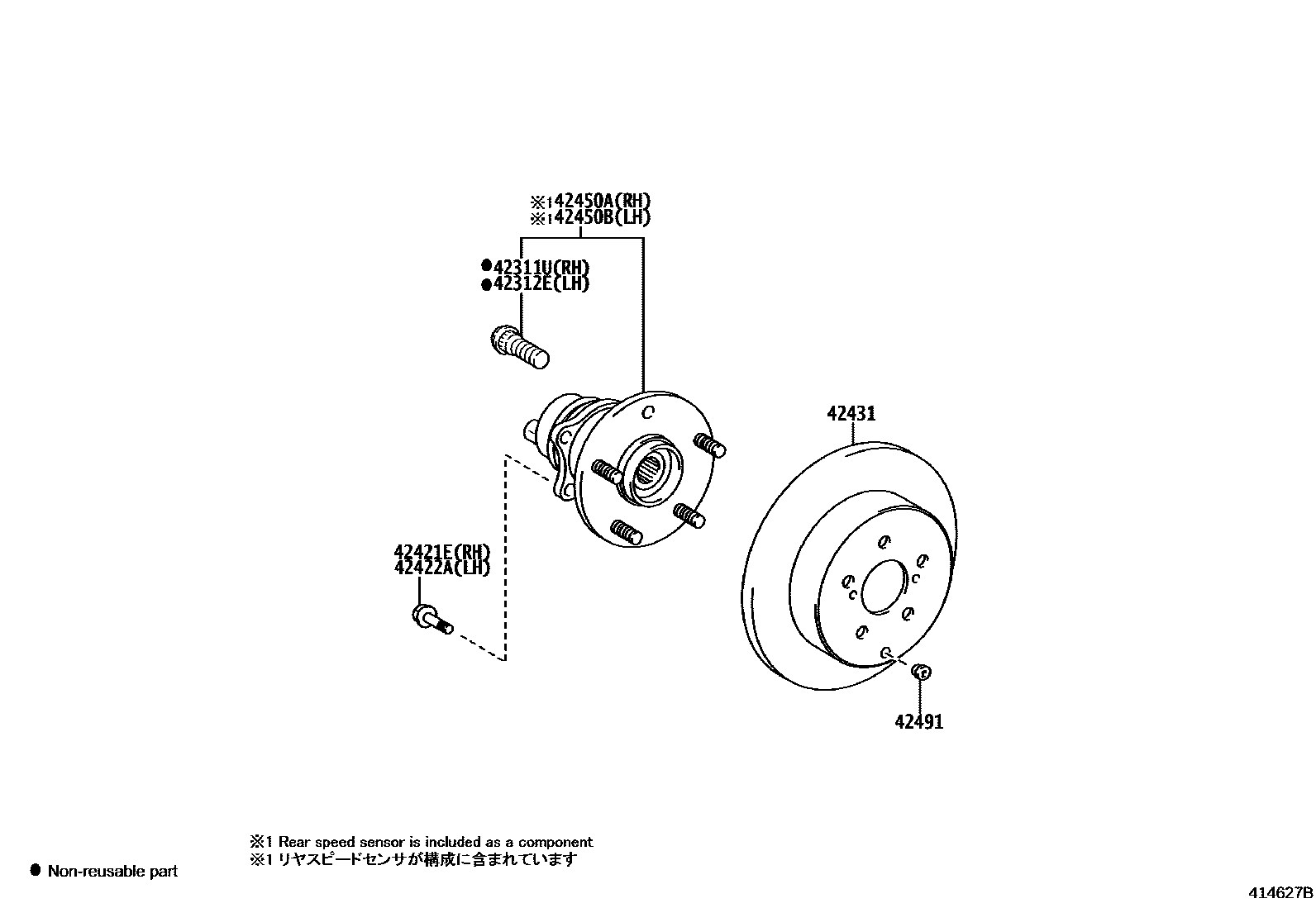

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iNSP170201911-202306

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iZSP170201911

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-10502×4iNSP170,ZSP170201710-201911

main90105-10559×4iNSP170,ZSP170201611-201710

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-10502×4iZSP170201911

main90105-10559×4iNSP170,ZSP170201611-201710

42431DISC, REAR

main42431-0D170×2iNSP170,ZSP170201611-201911

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-0M010iNSP170,ZSP170201611-201911

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-0M010iNSP170,ZSP170201611-201911

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020×2iNSP170,ZSP170201611-201911

8 parts on this diagram · 1 diagram in section
