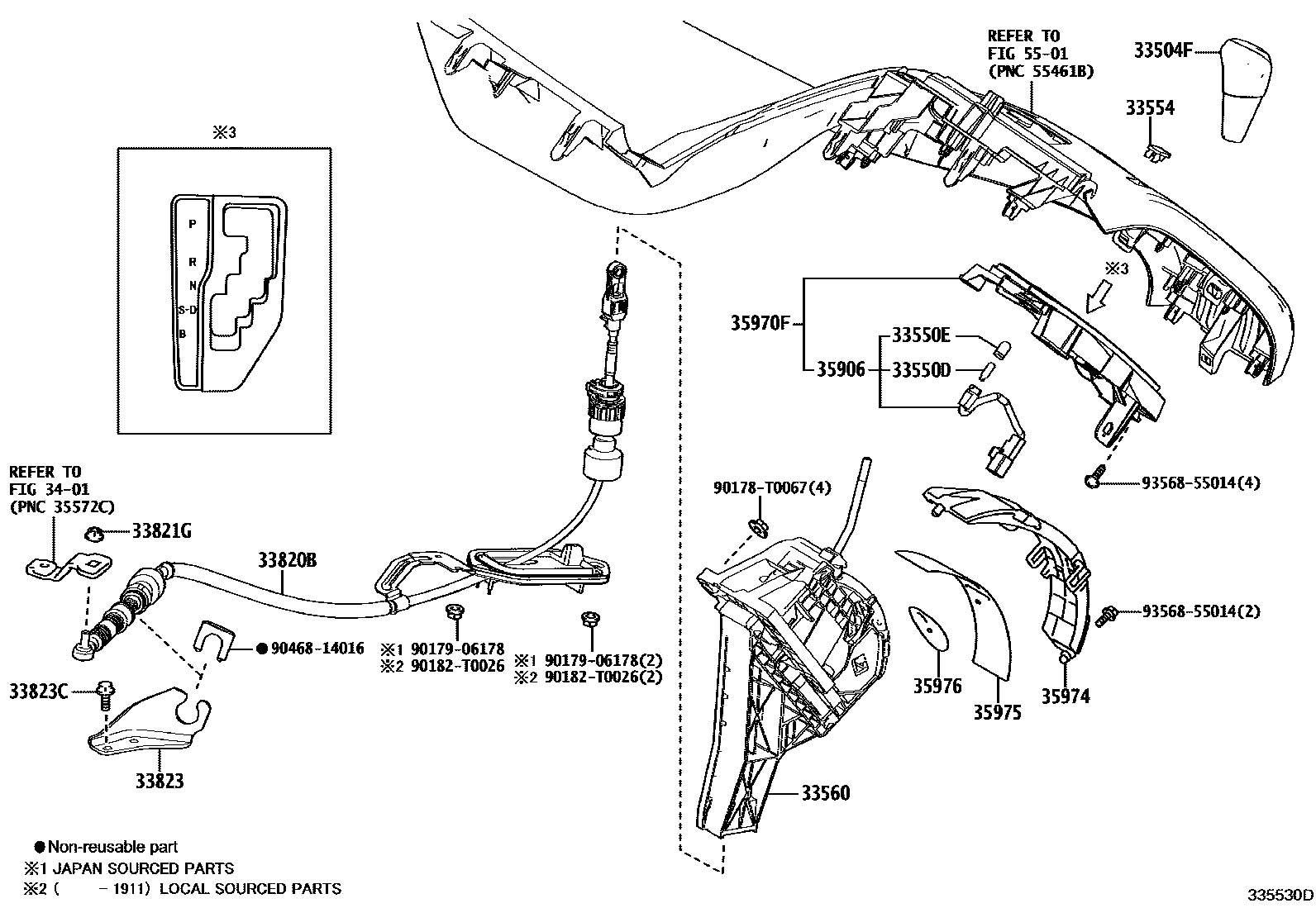

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK/ORANGE,TRIM0#,2#
33550DBULB, POSITION INDICATOR LAMP
14V 1.4W
12V 1.2W W/O SOCKET
33550ECAP, POSITION INDICATOR LAMP
33554CAP, SHIFT LEVER
FROMAGE,TRIM0#
BLACK,TRIM2#
33560UNIT ASSY, SHIFT LOCK CONTROL
33820BCABLE ASSY, TRANSMISSION CONTROL
33821GNUT (FOR TRANSMISSION CONTROL CABLE)
33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
3401
35906WIRE SUB-ASSY, INDICATOR LAMP
35970FHOUSING ASSY, POSITION INDICATOR
BLACK,TRIM2#
BLACK,TRIM0#,2#
SATIN CHROME,TRIM2#
SATIN CHROME,TRIM0#,2#
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
5501
90178T0067
main90178-T0067
9017906178
main90179-06178
90182T0026
main90182-T0026
9046814016
main90468-14016
9356855014
main93568-55014
21 parts on this diagram · 2 diagrams in section
