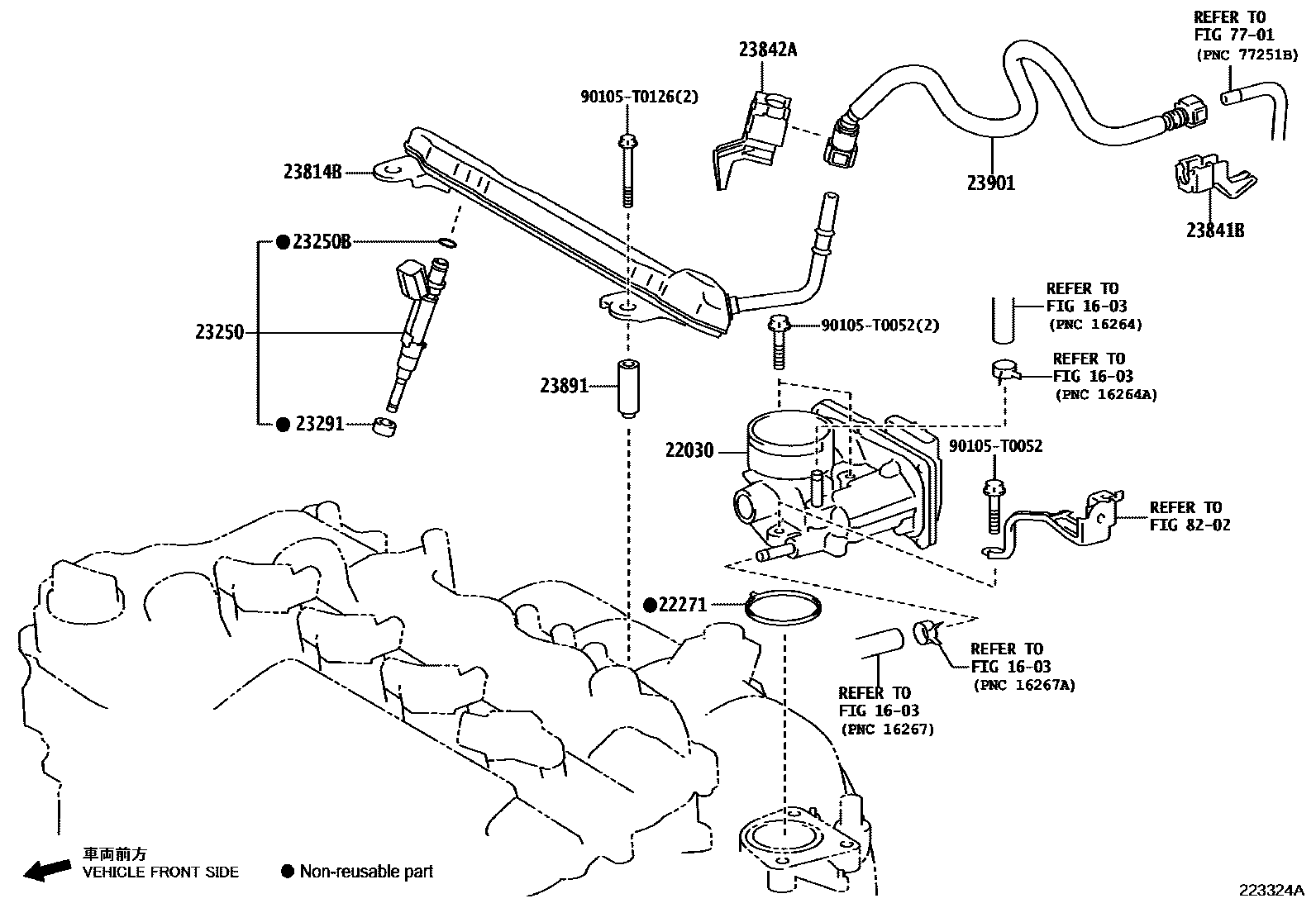

FUEL INJECTION SYSTEM

0001 1 0002 1

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0Y020i2NRFE..NSP170201611-202306

22271GASKET, THROTTLE BODY

main22271-0Y030i2NRFE..NSP170201611-202306

main22271-75031i2ZRFAE..ZSP170201611-201911

23250INJECTOR ASSY, FUEL

main23209-09340i2NRFE..NSP170201611-202306

main23209-39235i2ZRFAE..ZSP170201611-201911

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i2ZRFAE..ZSP170201611-201911

main90301-07042i2NRFE..NSP170201611-202306

23291INSULATOR, INJECTOR VIBRATION

main23291-0Y020i2NRFE..NSP170201611-202306

main23291-23010i2ZRFAE..ZSP170201611-201911

TYPE A:REFER ILLUST.

main23291-28020i2ZRFAE..ZSP170201611-201911

TYPE B:REFER ILLUST.

23814BPIPE, FUEL DELIVERY

main23814-0Y010i2NRFE..NSP170201611-202306

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-0Y050i2NRFE..NSP170201611-202306

main23841-37070i2ZRFAE..ZSP170201611-202009

sub23841-37140

main23841-37140i2ZRFAE..ZSP170202010

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-0Y040i2NRFE..NSP170201611-202306

main23842-22020i2ZRFAE..ZSP170201611-201911

23891SPACER, FUEL DELIVERY

main23891-47040i2NRFE..NSP170201611-202306

23901TUBE SUB-ASSY, FUEL

main23901-0T230i2ZRFAE..ZSP170201611-201911

main23901-0Y190i2NRFE..NSP170201611-202108

sub23901-0Y191

main23901-0Y191i2NRFE..NSP170202108-202306

7701

8202

90105T0052

main90105-T0052

90105T0126

main90105-T0126

15 parts on this diagram · 2 diagrams in section
