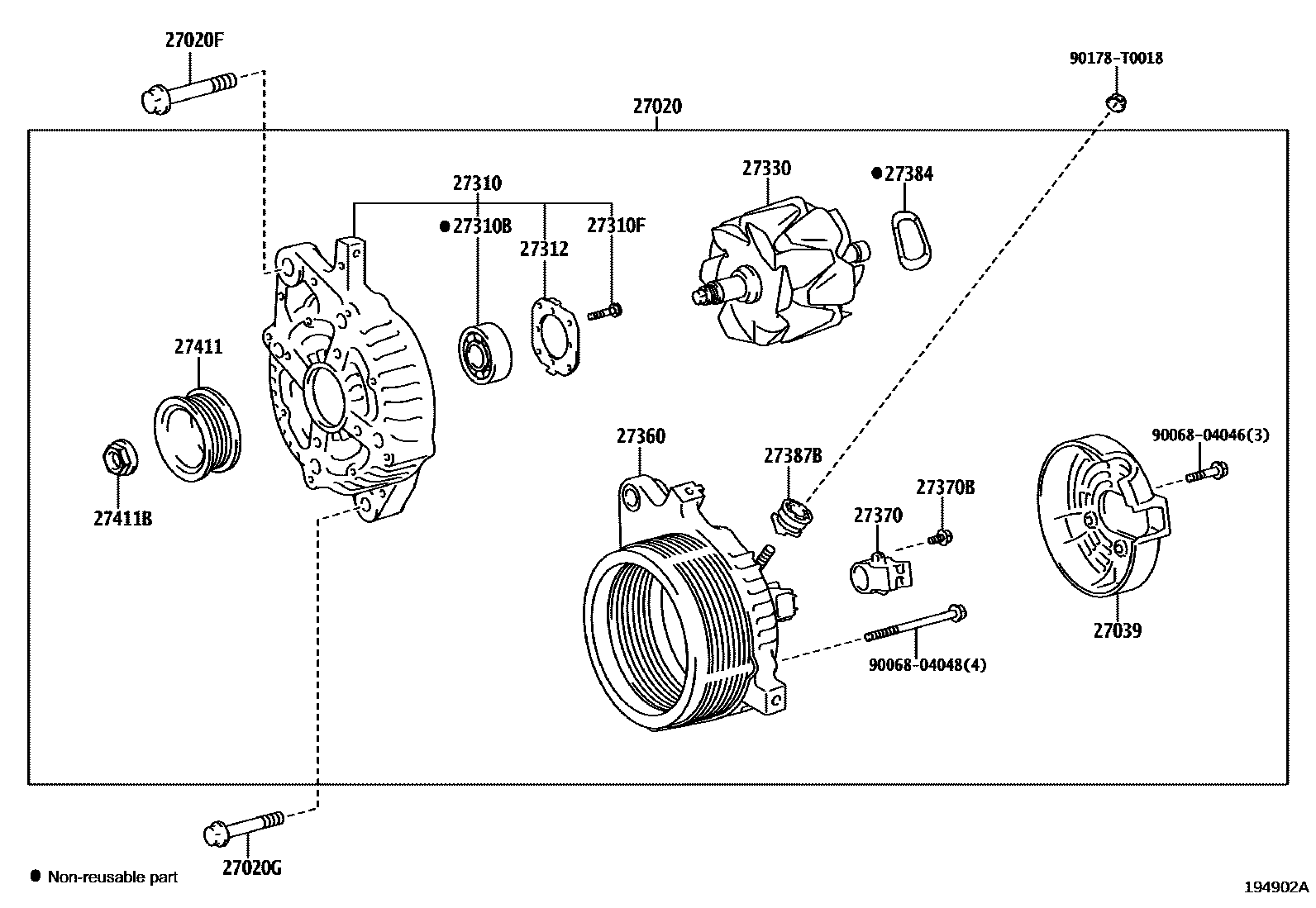

ALTERNATOR
27020ALTERNATOR ASSY
12V 100A
12V 100A
27020FBOLT, NO.1(FOR ALTERNATOR)
27020GBOLT, NO.2(FOR ALTERNATOR)
27039COVER, ALTERNATOR REAR END
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27310FSCREW(FOR ALTERNATOR DRIVE END FRAME)
27312PLATE, RETAINER
27330ROTOR ASSY, ALTERNATOR
27360COIL ASSY, ALTERNATOR
27370HOLDER ASSY, ALTERNATOR BRUSH
27370BSCREW(FOR ALTERNATOR BRUSH HOLDER)
27384WASHER
27387BINSULATOR, ALTERNATOR TERMINAL
27411PULLEY, ALTERNATOR
27411BNUT(FOR ALTERNATOR PULLEY)
9006804046
main90068-04046
9006804048
main90068-04048
90178T0018
main90178-T0018
19 parts on this diagram · 2 diagrams in section
