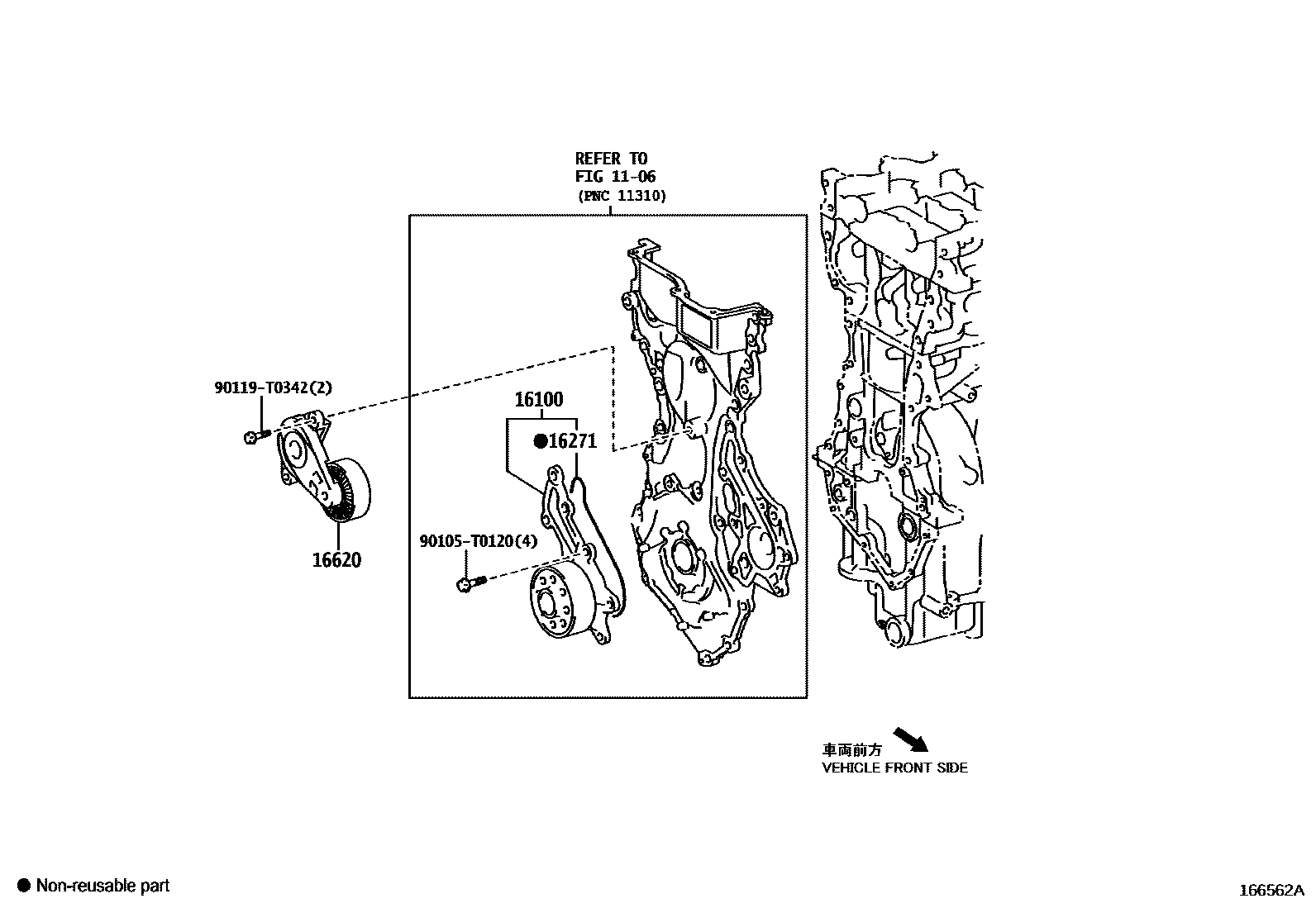

WATER PUMP

0001 1 0002 1

1106

16100PUMP ASSY, ENGINE WATER

main16100-39565i2ZRFAE..ZSP170¥10,500201611-201911

main16100-B9490i2NRFE..NSP170¥8,000201611-202306

16271GASKET, WATER PUMP

main16271-0Y030i2NRFE..NSP170¥650201611-202306

main16271-37030i2ZRFAE..ZSP170¥520201611-201911

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0Y020i2NRFE..NSP170201611-201710

sub16620-0Y060

main16620-0Y060i2NRFE..NSP170201710-201912

sub16620-0Y061

main16620-0Y061i2NRFE..NSP170201912-202208

main16620-0Y062i2NRFE..NSP170202209-202306

main16620-37030i2ZRFAE..ZSP170¥10,100201611-201911

90105T0120

main90105-T0120

90119T0342

main90119-T0342

6 parts on this diagram · 2 diagrams in section
