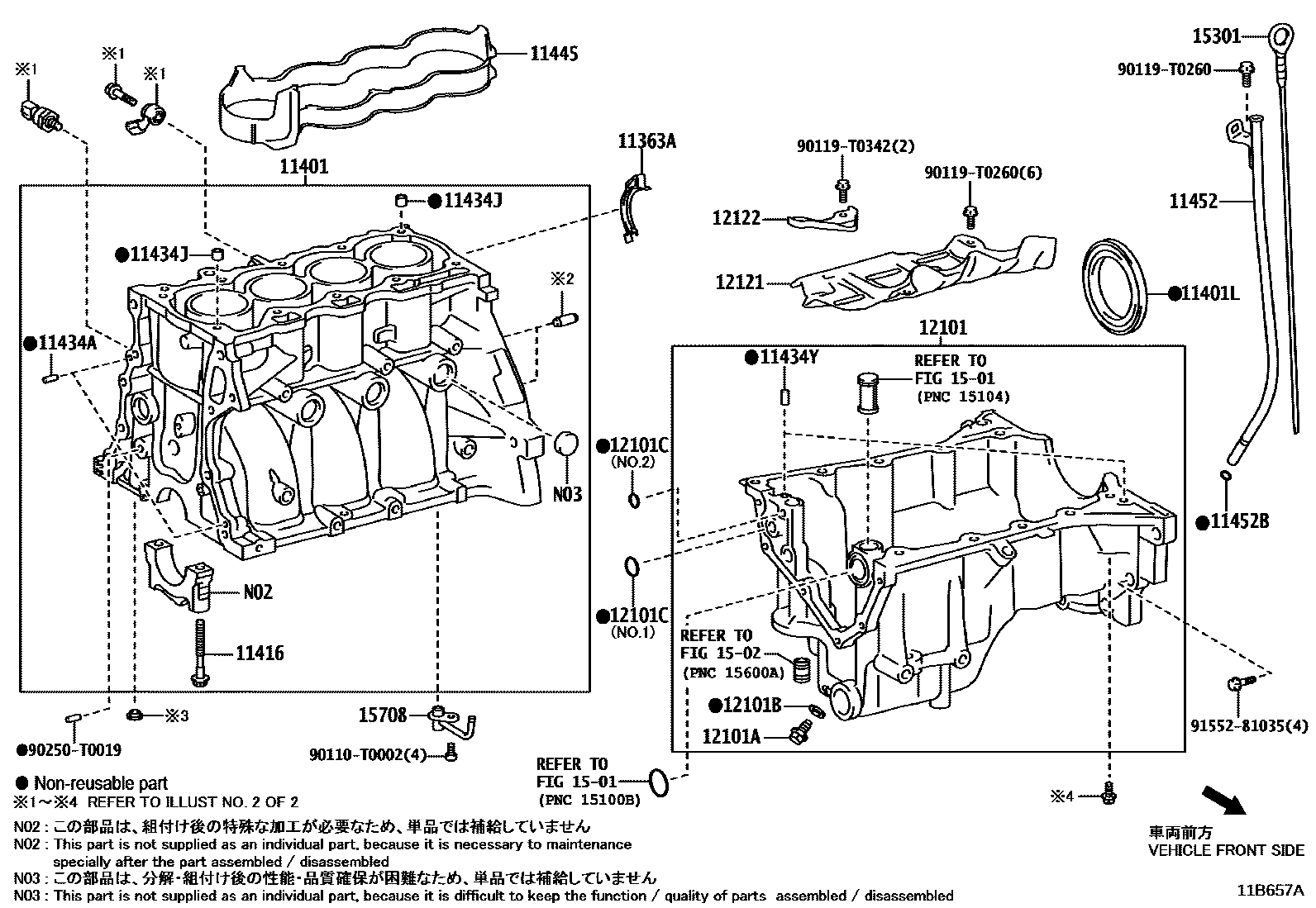

CYLINDER BLOCK
11363ACOVER, FLYWHEEL HOUSING SIDE
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
11401BLOCK SUB-ASSY, CYLINDER
(L)
(J)
11401LSEAL, ENGINE REAR OIL
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=12,OD=4.0
11434JPIN, RING (FOR CYLINDER HEAD SET)
11434YPIN, STRAIGHT(FOR OIL PAN)
L=18
11445SPACER, CYLINDER BLOCK WATER JACKET
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12101CRING, O(FOR OIL PAN)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
12121PLATE, OIL PAN BAFFLE, NO.1
12122PLATE, OIL PAN BAFFLE, NO.2
1501
1502
15301GAGE SUB-ASSY, OIL LEVEL
15708NOZZLE SUB-ASSY, OIL, NO.1
90110T0002
main90110-T0002
90119T0260
main90119-T0260
90119T0342
main90119-T0342
90250T0019
main90250-T0019
9155281035
25 parts on this diagram · 4 diagrams in section
