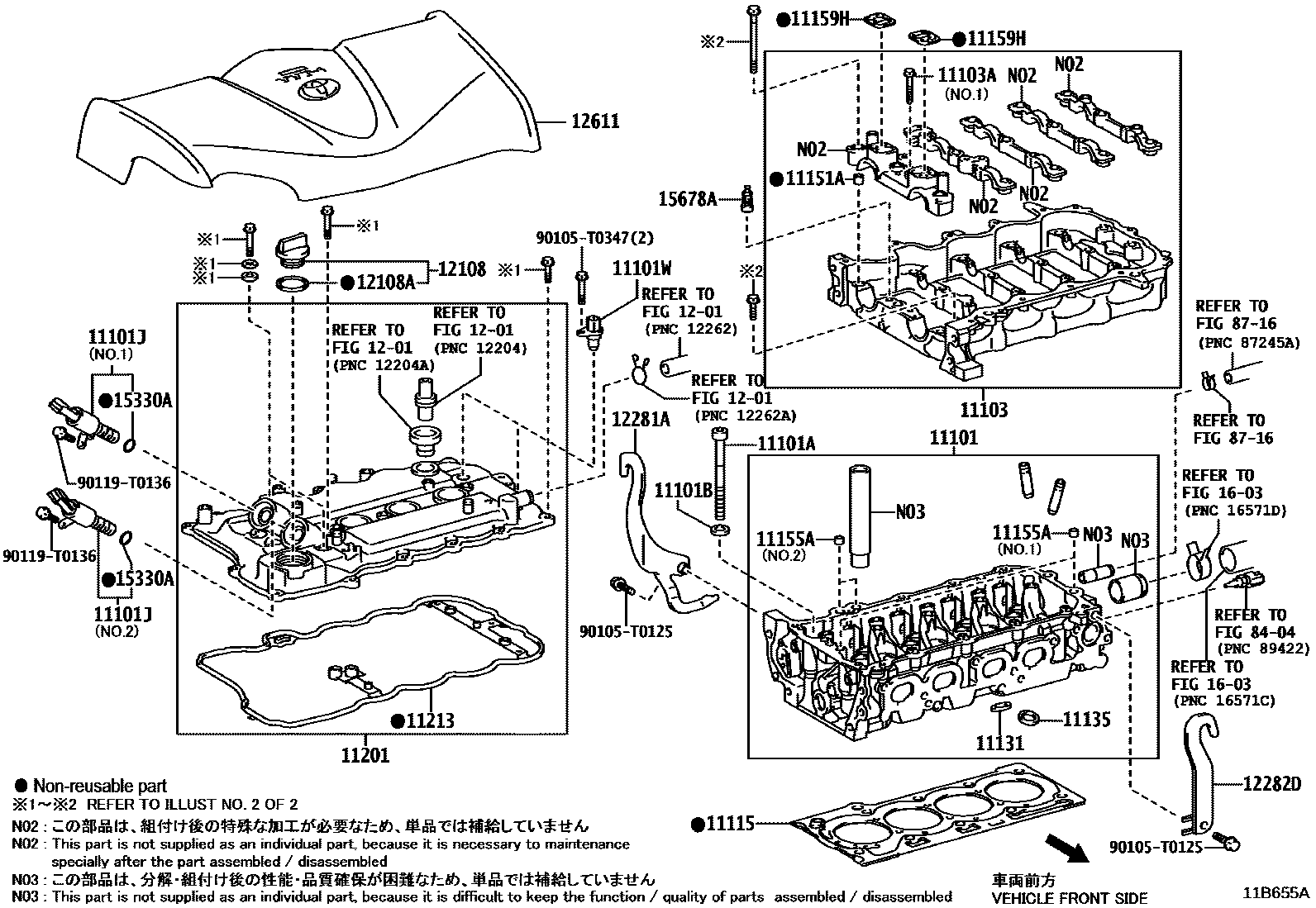

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.1
NO.2
11101WSENSOR, CRANK POSITION, NO.1
11103HOUSING SUB-ASSY, CAMSHAFT
11103ABOLT(FOR CAMSHAFT HOUSING SET)
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
11115GASKET, CYLINDER HEAD
11131SEAT, INTAKE VALVE
STD
STD
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
STD
O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=12.5,OD=8
11155APIN, RING W/HEAD
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
11201COVER SUB-ASSY, CYLINDER HEAD
11213GASKET, CYLINDER HEAD COVER
1201
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12281AHANGER, ENGINE, NO.1
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
12282DHANGER, ENGINE, NO.2
NO PAINTED
PAINTED=WHITE
12611COVER, ENGINE, NO.1
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15678AFILTER, OIL CONTROL VALVE
1603
8404
8716
90105T0125
90105T0347
90119T0136
main90119-T0136
29 parts on this diagram · 4 diagrams in section
