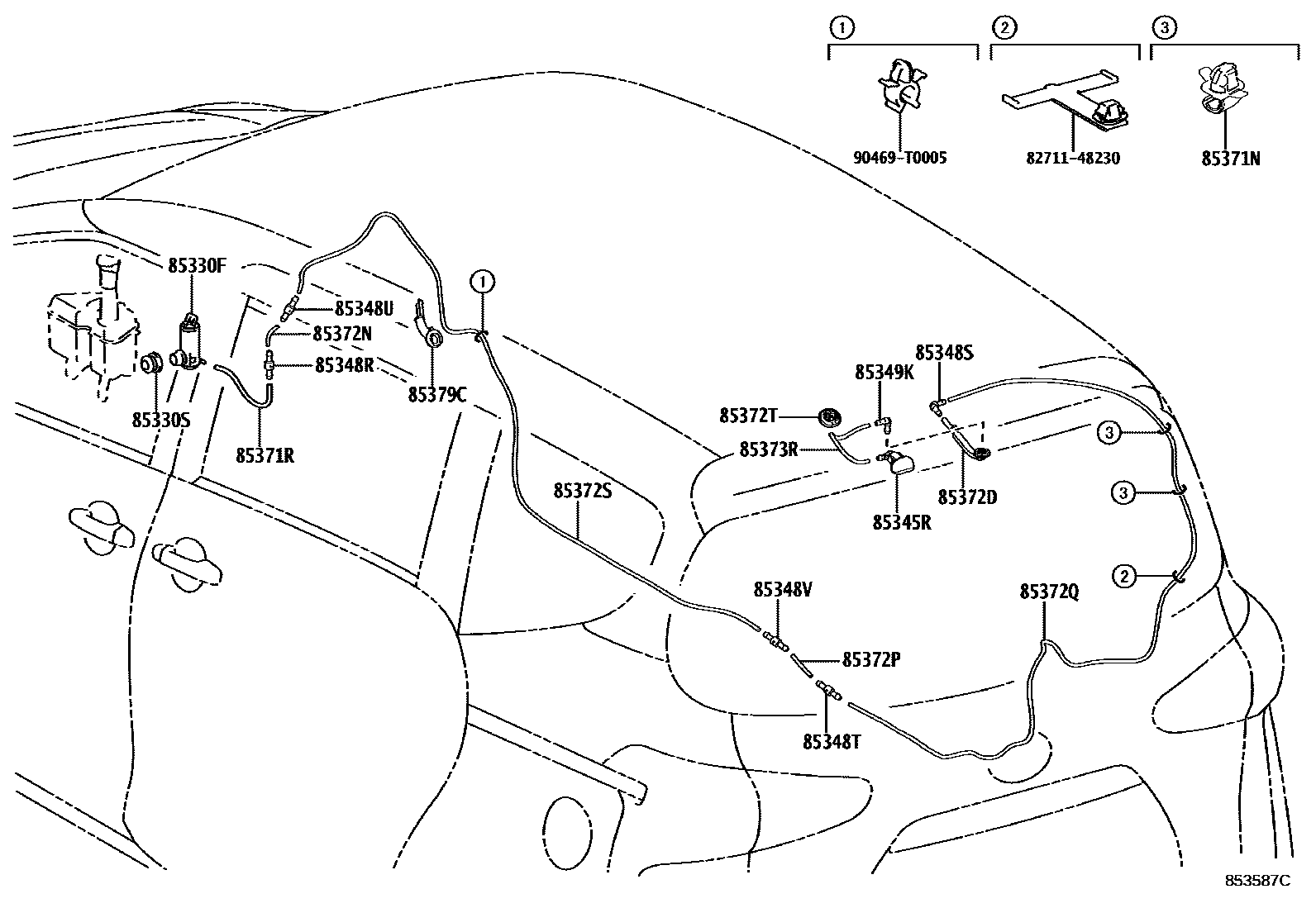

REAR WASHER
85330SBUSH, REAR WASHER JAR
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85348VJOINT, REAR WASHER HOSE, NO.4
85349KJOINT, REAR WASHER ELBOW, NO.2
85371NCLAMP, REAR WASHER HOSE
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=160
85372DGROMMET, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=50
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=50
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=2635
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
L=2480
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=265
85379CGROMMET, REAR WASHER HOSE NO.1
8271148230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-48230
90469T0005
main90469-T0005
21 parts on this diagram · 1 diagram in section
