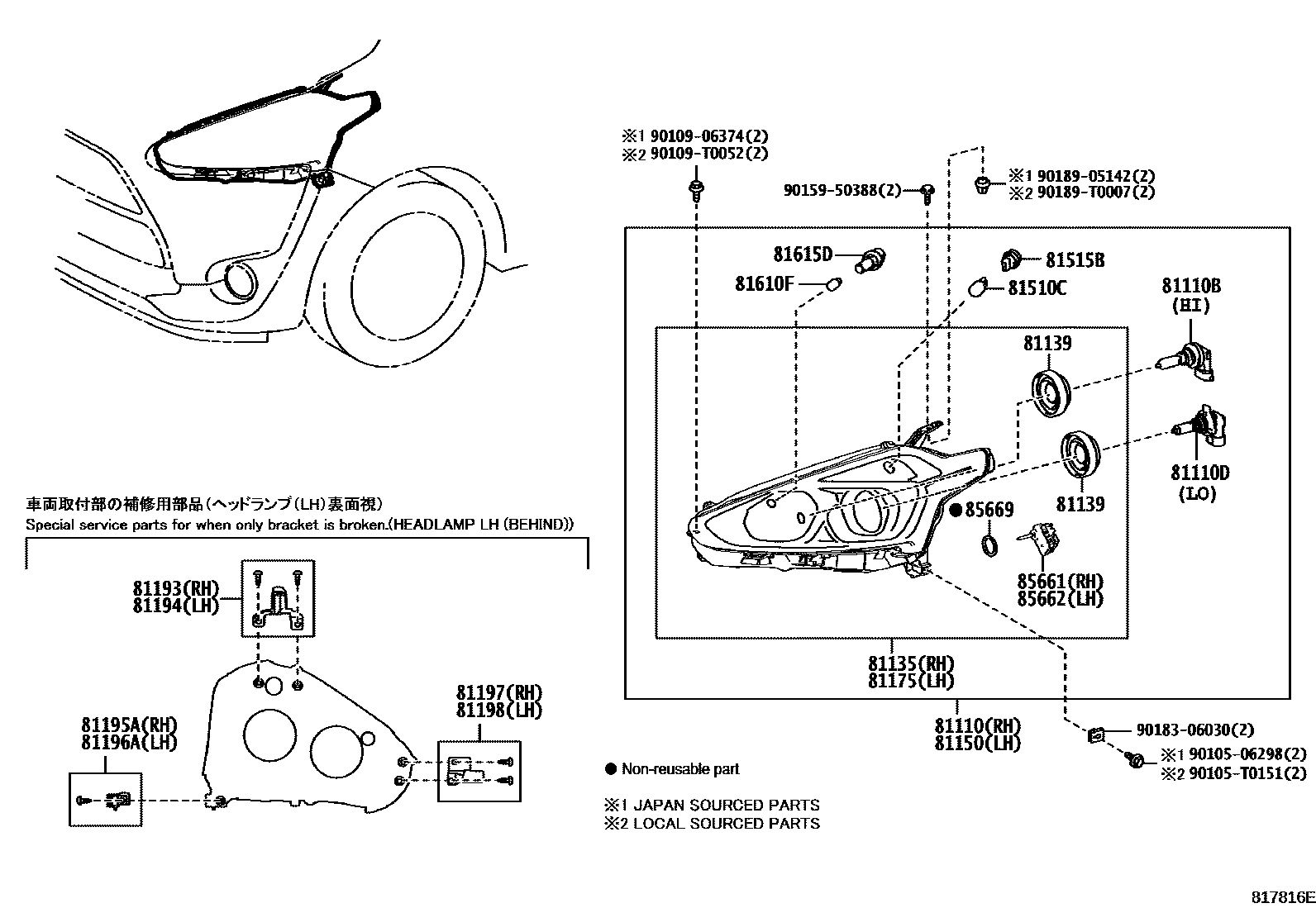

HEADLAMP

0001 1HALOGEN HEADLAMP 0002 1LED HEADLAMP

81110HEADLAMP ASSY, RH

main81110-0DB50iNSP170..E,G;NSP170..V..IDN201607-202203

main81110-0DN20iNSP170..(E,G,V)..IDN201907

main81110-52K30iNSP170..Q;NSP170..V..TH201607-201612

sub81110-52K31

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13099iNSP170..E,G;NSP170..V..IDN201607-202203

12V 65W(SAE),60W(UN)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13075iNSP170..E,G;NSP170..V..IDN201607-202203

12V 55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-0DB50iNSP170..CVT..G..TH201607-202203

main81130-0DN20iNSP170..(E,G,V)..IDN201907

main81130-52K30iNSP170..Q;NSP170..V..TH201607-201701

sub81130-52K31

main81130-52K31iNSP170..Q;NSP170..V..TH201701-201907

81139COVER, HEADLAMP SOCKET

main90075-65006iNSP170..6F..TH201607-202203

81150HEADLAMP ASSY, LH

main81150-0DB50iNSP170..CVT..G..TH201607-202203

main81150-0DN20iNSP170..(E,G,V)..IDN201907

main81150-52K30iNSP170..Q;NSP170..V..TH201607-201612

sub81150-52K31

81175UNIT ASSY, HEADLAMP, LH

main81170-0DB50iNSP170..CVT..G..TH201607-202203

main81170-0DN20iNSP170..(E,G,V)..IDN201907

main81170-52K30iNSP170..Q;NSP170..V..TH201607-201701

sub81170-52K31

main81170-52K31iNSP170..Q;NSP170..V..TH201701-201907

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-52270iNSP170..E,G;NSP170..V..IDN201607-202203

main81193-52280iNSP170..Q;NSP170..V..TH201607-201907

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-52260iNSP170..V..IDN;NSP170..CVT..(E,G);NSP170..6F..(E,G)..IDN201607-202203

main81194-52270iNSP170..Q;NSP170..V..TH201607-201907

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-52200iNSP170..E,G;NSP170..V..IDN201607-202203

main81195-52210iNSP170..Q;NSP170..V..TH201607-201907

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-52180iNSP170..E,G;NSP170..V..IDN201607-202203

main81196-52190iNSP170..Q;NSP170..V..TH201607-201907

81197BRACKET, HEADLAMP, LOWER RH

main81197-52080iNSP170..6F..TH201607-202203

main81197-52090iNSP170..Q;NSP170..V..TH201607-201907

81198BRACKET, HEADLAMP, LWR LH

main81198-52080iNSP170..V..IDN;NSP170..CVT..(E,G);NSP170..6F..(E,G)..IDN201607-202203

main81198-52090iNSP170..Q;NSP170..V..TH201607-201907

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011iNSP170..Q;NSP170..V..TH201607-201907

12V 21W,AMBER

main90981-15021iNSP170..V..IDN;NSP170..CVT..(E,G);NSP170..6F..(E,G)..IDN201607-202203

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81515-42050iNSP170..Q;NSP170..V..TH201607-201907

main90075-60028iNSP170..E,G;NSP170..V..IDN201607-202203

81610FBULB(FOR CLEARANCE LAMP)

main90981-11069iNSP170..E,G;NSP170..V..IDN201607-202203

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60077iNSP170..E,G;NSP170..V..IDN201607-202203

85661MOTOR, HEADLAMP LEVELING, RH

main85661-0D020iNSP170..6F..TH201607-202203

main85661-28020iNSP170..Q;NSP170..V..TH202004

main85661-68011iNSP170..Q;NSP170..V..TH201607-202004

85662MOTOR, HEADLAMP LEVELING, LH

main85661-0D020iNSP170..6F..TH201607-202203

main85661-28020iNSP170..Q;NSP170..V..TH202004

main85661-68011iNSP170..Q;NSP170..V..TH201607-202004

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120iNSP170..E,G;NSP170..V..IDN201607-202203

9010506298

main90105-06298

90105T0151

main90105-T0151

9010906374

main90109-06374

90109T0052

main90109-T0052

9015950388

main90159-50388

9018306030

main90183-06030

9018905142

main90189-05142

90189T0007

main90189-T0007

28 parts on this diagram · 2 diagrams in section
