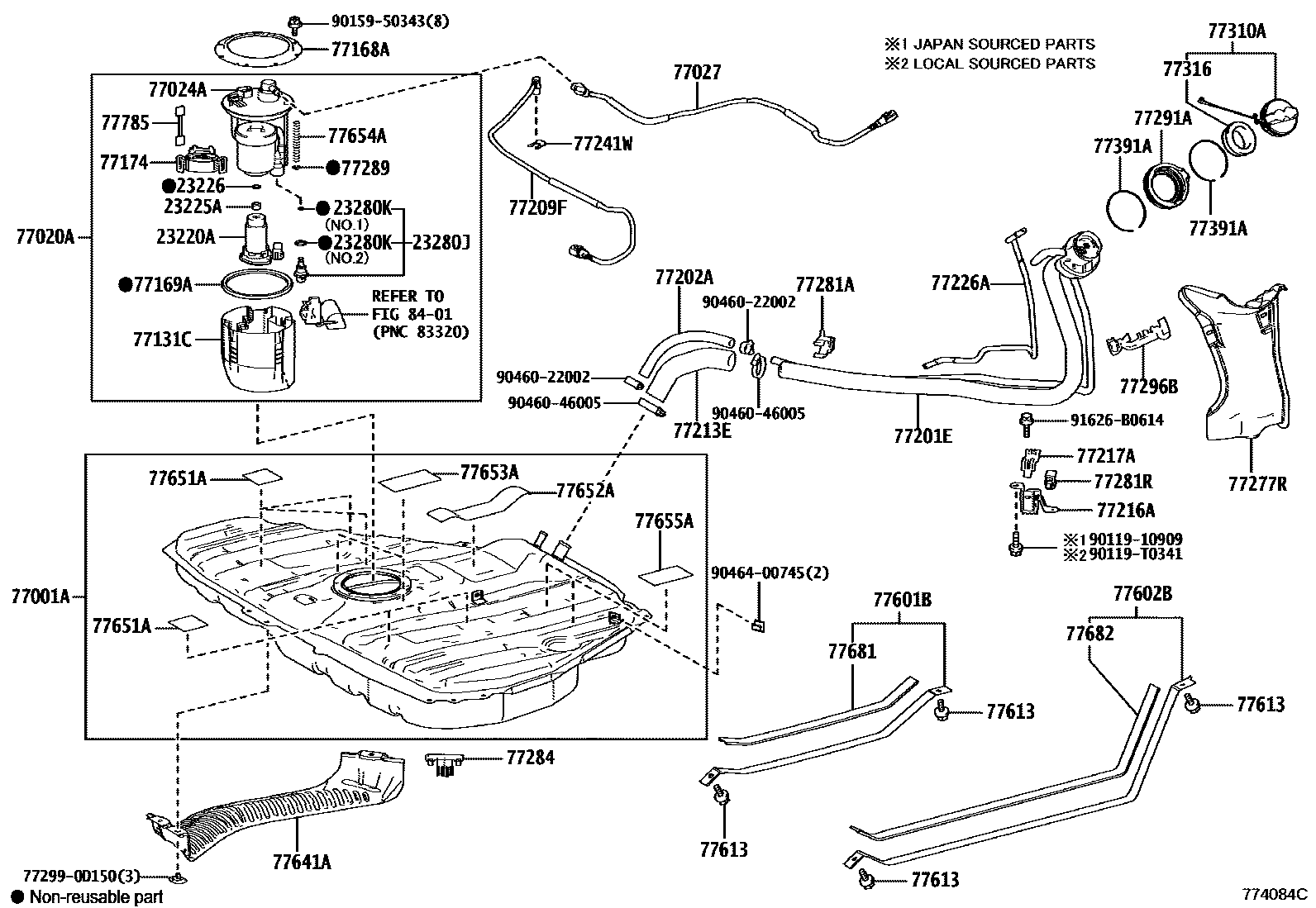

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TUBE 0003 1FUEL LID OPENER

23220APUMP ASSY, FUEL W/FILTER

main23220-0Y080i2NRFE..NSP170..CVT;2NRFE..NSP170..6F..IDN201607-202203

23225ASPACER, FUEL PUMP

main23225-0V030i2NRFE..NSP170201607-202203

23226RING, O(FOR FUEL PUMP)

main90301-T0064i2NRFE..NSP170201607-202203

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-21010i2NRFE..NSP170¥6,000201607-202203

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i2NRFE..NSP170¥140201607-202203

NO.1:REFER ILLUST.

main90301-15024i2NRFE..NSP170¥140201607-202203

NO.2:REFER ILLUST.

77001ATANK SUB-ASSY, FUEL

main77001-0D320iNSP170201607-202203

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-0D210iNSP170201607-202203

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-0D040iNSP170201607-202203

77027TUBE SUB-ASSY, FUEL EVAPORATION, NO.2

main77027-0D040iNSP170201607-202203

77131CSUB-TANK, FUEL, NO.1

main77131-0D060iNSP170201607-202203

77168APLATE, FUEL TANK VENT TUBE SET

main77168-0D020iNSP170201607-202203

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52010iNSP170¥280201607-202203

77174SUPPORT, FUEL SUCTION, NO.1

main77174-0D120iNSP170201607-202203

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-0D320iNSP170..6F..TH201607-202203

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main95313-13024iNSP170¥430201607-202203

L=240

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0D200iNSP170201607-202203

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-0D180iNSP170201607-202203

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-0D210iNSP170201607-202203

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-0D180iNSP170201607-202203

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-0D130iNSP170201607-202203

77241WCLIP, TUBE JOINT

main77241-33011iNSP170¥80201607-202203

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-0D120iNSP170201607-202203

77281ACLAMP, FUEL FILLER PIPE

main77281-0D020iNSP170201607-202203

77281RCLAMP, FUEL FILLER PIPE, NO.2

main77281-0D040iNSP170201607-202203

77284CLAMP, FUEL TUBE

main77289-0D150iNSP170..CVT;NSP170..6F..IDN201607-202203

77289HOLDER, FUEL TANK PIPE SETTING

main77289-06070iNSP170201607-202203

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-0D210iNSP170201607-202203

77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1

main77296-0D110iNSP170201607-202203

77310ACAP ASSY, FUEL TANK

main77300-0K010iNSP170201607-202203

77316GASKET, FUEL TANK CAP

main77316-0K020iNSP170201607-202203

77391ARING, FUEL INLET BOX

main77391-02020iNSP170201607-202203

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-0D010iNSP170..6F..TH201607-202203

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-0D010iNSP170201607-202203

77613BOLT, FUEL TANK BAND SET

main90119-10971iNSP170..CVT;NSP170..6F..IDN¥120201607-202203

(J)

main90119-T0454iNSP170..6F..TH201607-202203

(L)

77641APROTECTOR, FUEL TANK, NO.1

main77641-0D060iNSP170201607-202203

77651ACUSHION, FUEL TANK, NO.1

main77651-0D100iNSP170201607-202203

77652ACUSHION, FUEL TANK, NO.2

main77652-0D050iNSP170201607-202203

77653ACUSHION, FUEL TANK, NO.3

main77653-0D010iNSP170201607-202203

77654ACUSHION, FUEL TANK, NO.4

main77652-0D060iNSP170201607-202203

77655ACUSHION, FUEL TANK, NO.5

main77654-0D020iNSP170201607-202203

77681SEAT, FUEL TANK BAND, RH

main77681-0D010iNSP170..6F..TH201607-202203

77682SEAT, FUEL TANK BAND, LH

main77681-0D020iNSP170201607-202203

77785HARNESS, FUEL PUMP

main77785-0D140iNSP170201607-202203

8401

772990D150CLAMP, FUEL TUBE W/GROMMET, NO.5

main77299-0D150

9011910909

main90119-10909¥100

90119T0341

main90119-T0341

9015950343

main90159-50343¥60

9046022002

main90460-22002¥530

9046046005

main90460-46005¥190

9046400745

main90464-00745¥200

91626B0614

main91626-B0614¥60

52 parts on this diagram · 3 diagrams in section
