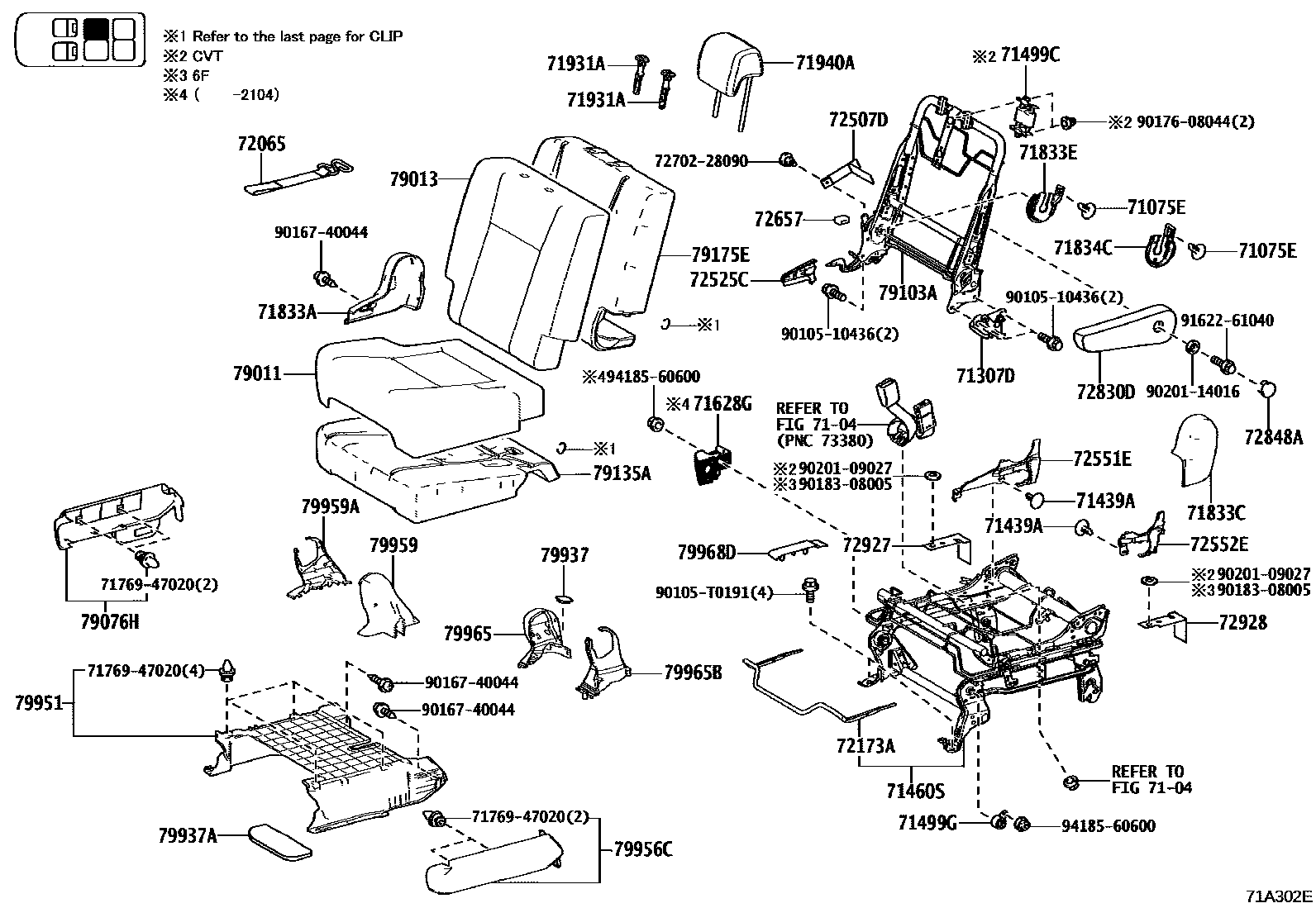

REAR SEAT & SEAT TRACK

0001 1REAR NO.1 SEAT RH 0002 1REAR NO.1 SEAT LH 0003 1REAR NO.2 SEAT 0004 1CLIP

7104

71075ECLIP(FOR REAR SEAT)

main90467-06020-C0iNSP170..E,G201607-201907

BLACK,TRIM0#,2#

sub90467-06020¥190

main90467-06020-C0iNSP170..E,G201607-202104

BLACK,TRIM2#

sub90467-06020¥190

main90467-06020-C0iNSP170..6F..TH202104-202203

BLACK,TRIM2#,(J)

sub90467-06020¥190

main90467-T0046-C0iNSP170..CVT;NSP170..6F..IDN202104-202203

BLACK,TRIM2#,(L)

71307DBRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, RH

main71307-0D010iNSP170201607-202203

71439ACLIP

main67771-26230-C0iNSP170..Q,V201607-201710

BLACK,TRIM0#,2#

main67771-26230-C0iNSP170..Q,V201607-201710

BLACK,TRIM2#

main67771-26230-C1iNSP170201710-202203

BLACK,TRIM2#

71460SCUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE)

main71460-0DD10iNSP170201607-202203

71499CDAMPER, REAR SEAT CUSHION SPRING

main71499-46020iNSP170..CVT¥2,290201607-201907

71499GDAMPER, REAR SEATBACK SPRING, RH

main71499-52060iNSP170¥670201607-202203

71628GSPACER, REAR SEAT CUSHION, RH

main72136-0D010iNSP170201607-202107

71833ACOVER, REAR SEAT RECLINING, NO.1 RH

main71833-0D090-C0iNSP170..Q,V201607-201907

BLACK,TRIM0#,2#

main71833-0D090-C0iNSP170..Q,V201607-202203

BLACK,TRIM2#

71833CCOVER, REAR SEAT RECLINING, NO.2 RH

main71833-0D100-C0iNSP170..Q,V201607-201907

BLACK,TRIM0#,2#

main71833-0D100-C0iNSP170..Q,V201607-202203

BLACK,TRIM2#

71833ECOVER, REAR SEAT RECLINING, NO.3 RH

main71833-0D080-C0iNSP170..Q,V201607-201907

BLACK,TRIM0#,2#

main71833-0D080-C0iNSP170..Q,V201607-202203

BLACK,TRIM2#

71834CCOVER, REAR SEAT RECLINING, NO.3 LH

main71834-0D080-C0iNSP170..Q,V201607-201907

BLACK,TRIM0#,2#

main71834-0D080-C0iNSP170..Q,V201607-202203

BLACK,TRIM2#

71931ASUPPORT, REAR SEAT HEADREST

main71930-02370-C0iNSP170..CVT;NSP170..6F..IDN201708-202203

W(LOCK)&W(BUTTON),BLACK,TRIM2#

sub71930-02370¥770

main71930-02370-C0iNSP170..Q,V201708-201907

W(LOCK)&W(BUTTON),BLACK,TRIM0#,2#

sub71930-02370¥770

main71930-44020-C0iNSP170201607-201707

W(LOCK),BLACK,TRIM2#

sub71930-44020¥1,260

sub71930-02370¥770

main71931-02130-C0iNSP170..E,G201708-201907

W/O(LOCK),BLACK,TRIM0#,2#

main71931-02130-C0iNSP170..E,G201708-202203

W/O(LOCK),BLACK,TRIM2#

main71931-47010-C0iNSP170201607-201707

W/O(LOCK),BLACK,TRIM2#

sub71931-47010¥480

sub71931-42020¥590

71940AHEADREST ASSY, REAR SEAT

main71940-0DE40-C0iNSP170..Q,V201607-201907

BLACK,TRIM0#,21

main71940-0DE40-C0iNSP170..E,G201607-201907

BLACK,TRIM2#

main71940-0DE40-C1iNSP170..Q,V201607-201907

DK.BROWN,TRIM20

main71940-0DT50-C0iNSP170..Q,V201907

DK.BROWN/BLACK,TRIM20

main71940-0DT50-C1iNSP170..6F..TH201907-202203

BLACK,TRIM2#

main71940-0DT50-C1iNSP170..Q,V201907

BLACK,TRIM22

72065BELT SUB-ASSY, REAR SEAT HOOK, RH

main72065-0D010-C0iNSP170..Q,V201607-201907

BLACK,TRIM0#,2#

main72065-0D010-C0iNSP170..Q,V201607-202203

BLACK,TRIM2#

72173AHANDLE, REAR SEAT TRACK ADJUSTING, RH

main72173-0D010iNSP170..CVT;NSP170..6F..IDN201607-202203

72507DHANDLE SUB-ASSY, NO.2 SEAT RECLINING RELEASE

main72507-0D010-C0iNSP170..Q,V201607-201907

BLACK,TRIM0#,2#

main72507-0D010-C0iNSP170..Q,V201607-202203

BLACK,TRIM2#

72525CHANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH

main72525-0D340-C0iNSP170..Q,V201607-201907

BLACK,TRIM0#,2#

main72525-0D340-C0iNSP170..Q,V201607-202203

BLACK,TRIM2#

72551ECOVER, RECLINING HINGE, RH

main72551-0D010-C0iNSP170..Q,V201607-201907

BLACK,TRIM0#,2#

main72551-0D010-C0iNSP170..Q,V201607-202203

BLACK,TRIM2#

72552COVER, RECLINING HINGE, NO.2

main72552-0D020-C0iNSP170..Q,V201607-201907

BLACK,TRIM0#,2#

main72552-0D020-C0iNSP170..Q,V201607-202203

BLACK,TRIM2#

72552ECOVER, RECLINING HINGE, LH

main72552-0D010-C0iNSP170..Q,V201607-202203

BLACK,TRIM2#

main72552-0D010-C0iNSP170..Q,V201607-201907

BLACK,TRIM0#,2#

72657SILENCER, REAR SEATBACK LOCK CONTROL ROD

main72657-0D010iNSP170..CVT;NSP170..6F..IDN201607-202203

72830DARMREST ASSY, REAR SEAT, RH

main72880-0D010-C4iNSP170..CVT..TH;NSP170..(Q,V)..IDN201907

BLACK,TRIM2#

72848ACAP, SEAT ARMREST, NO.1

main72848-28030-C0iNSP170..CVT..TH;NSP170..(Q,V)..IDN201907

BLACK,TRIM2#

sub72848-28030¥360

sub72848-0E020

72927COVER, REAR SEAT CUSHION UNDER, RH

main72907-0D020iNSP170..6F..TH201607-202203

72928COVER, REAR SEAT CUSHION UNDER, LH

main72908-0D020iNSP170201607-202203

79011COVER SUB-ASSY, NO.1 SEAT CUSHION, RH

main79011-0D010-C1iNSP170..E201607-201907

BLACK,TRIM2#

main79011-0D020-C2iNSP170..Q,V201607-201907

DK.BROWN,TRIM20

main79011-0D020-C3iNSP170..Q,V201607-201907

BLACK,TRIM0#,21

main79011-0D020-C3iNSP170..Q,V201607-201907

BLACK,TRIM2#

main79011-0D100-C2iNSP170..Q,V201907

DK.BROWN/BLACK,TRIM20

main79011-0D100-C3iNSP170..6F..TH201907-202203

BLACK,TRIM2#

main79011-0D100-C3iNSP170..Q,V201907

BLACK,TRIM22

79013COVER SUB-ASSY, NO.1 SEATBACK, RH

main79013-0D010-C1iNSP170..E201607-201907

BLACK,TRIM2#

main79013-0D020-C2iNSP170..Q,V201607-201907

DK.BROWN,TRIM20

main79013-0D020-C3iNSP170..Q,V201607-201907

BLACK,TRIM0#,21

main79013-0D020-C3iNSP170..Q,V201607-201907

BLACK,TRIM2#

main79013-0D090-C1iNSP170..6F..TH201907-202203

MEDIUM GRAY/BLACK,TRIM2#

main79013-0D090-C1iNSP170..6F..TH201907-202203

SINGAPORE SPEC,MEDIUM GRAY/BLACK,TRIM2#

main79013-0D100-C2iNSP170..Q,V201907

MEDIUM GRAY/BLACK,TRIM20

main79013-0D100-C3iNSP170..Q,V201907

MEDIUM GRAY/BLACK,TRIM22

main79013-0D100-C3iNSP170..Q,V201907

MEDIUM GRAY/BLACK,TRIM2#

79076HCOVER SUB-ASSY, NO.1 SEAT LEG, RH

main79076-0D011-C0iNSP170201607-202203

BLACK,TRIM2#

79103AFRAME SUB-ASSY, NO.1 SEATBACK, RH

main79103-0D010iNSP170..6F201607-202203

main79103-0D020iNSP170..CVT201607-201907

main79103-0D050iNSP170..6F..V201907

main79103-0D060iNSP170..CVT..TH;NSP170..CVT..(Q,V)..IDN201907

79135APAD, NO.1 SEAT CUSHION, RH

main79135-0D010iNSP170201607-202203

79175EPAD, NO.1 SEATBACK, RH

main79175-0D010iNSP170201607-201907

main79175-0D010iNSP170..6F..TH201907-202203

SINGAPORE SPEC

main79175-0D030iNSP170..CVT..TH;NSP170..(Q,V)..IDN201907

79937COVER, REAR SEAT LEG, NO.2

main79937-0D010-C0iNSP170..Q,V201607-201907

BLACK,TRIM0#,2#

main79937-0D010-C0iNSP170..Q,V201607-202203

BLACK,TRIM2#

79937ACOVER, REAR SEAT LEG, NO.2

main79926-0D010-C0iNSP170..Q,V201607-201907

BLACK,TRIM0#,2#

main79926-0D010-C0iNSP170..Q,V201607-202203

BLACK,TRIM2#

79951COVER, NO.1 SEAT CUSHION

main79951-0D010-C0iNSP170..Q,V201607-201907

BLACK,TRIM0#,2#

main79951-0D010-C0iNSP170..Q,V201607-202203

BLACK,TRIM2#

79956CCOVER, REAR SEAT LEG SIDE, LH

main79956-0D060-C0iNSP170..Q,V201607-201907

BLACK,TRIM0#,2#

main79956-0D060-C0iNSP170..Q,V201607-202203

BLACK,TRIM2#

79959COVER, RR SEAT LEG

main79959-0D020-C0iNSP170..Q,V201607-201907

BLACK,TRIM0#,2#

main79959-0D020-C0iNSP170..Q,V201607-202203

BLACK,TRIM2#

79959ACOVER, REAR SEAT LEG, RH

main79959-0D090-C0iNSP170..Q,V201607-201907

BLACK,TRIM0#,2#

main79959-0D090-C0iNSP170..Q,V201607-202203

BLACK,TRIM2#

79965COVER, REAR SEAT LEG SIDE, NO.2

main79965-0D010-C0iNSP170..Q,V201607-201907

BLACK,TRIM0#,2#

main79965-0D010-C0iNSP170..Q,V201607-202203

BLACK,TRIM2#

79965BCOVER, REAR SEAT LEG SIDE, NO.2

main79965-0D020-C0iNSP170..Q,V201607-201907

BLACK,TRIM0#,2#

main79965-0D020-C0iNSP170..Q,V201607-202203

BLACK,TRIM2#

79968DCOVER, REAR SEAT LEG SIDE, NO.5, RH

main79955-0D010-C0iNSP170..Q,V201607-201907

BLACK,TRIM0#,2#

main79955-0D010-C0iNSP170..Q,V201607-202203

BLACK,TRIM2#

7176947020COVER, FRONT SEAT UNDER TRAY BRACKET

main71769-47020¥80

7270228090BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-28090¥170

9010510436

main90105-10436¥110

90105T0191

main90105-T0191¥110

9016740044

main90167-40044¥70

9017608044

main90176-08044¥90

9018308005

main90183-08005¥70

9020109027

main90201-09027¥90

9020114016

main90201-14016¥110

9162261040

main91622-61040¥120

9418560600

main94185-60600¥70

52 parts on this diagram · 4 diagrams in section
