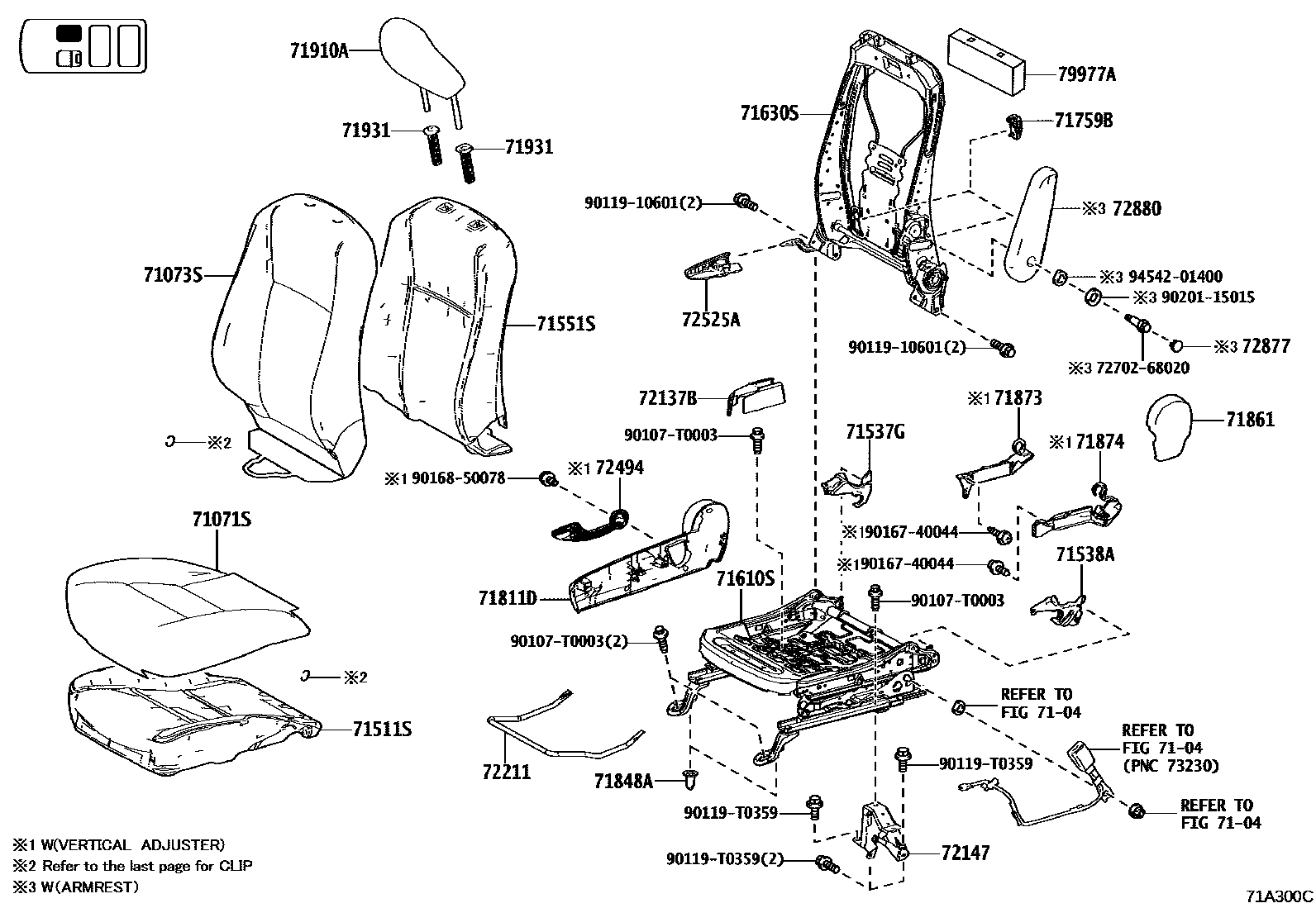

FRONT SEAT & SEAT TRACK

0001 1DRIVER SEAT 0002 1PASSENGER SEAT 0003 1CLIP

7104

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-0DT10-C1iNSP170..E201607-201907

BLACK,TRIM2#

main71071-0DT30-C2iNSP170..Q,V201607-201907

DK.BROWN,TRIM20

main71071-0DT30-C3iNSP170..G201607-201907

BLACK,TRIM0#,21

main71071-0DT30-C3iNSP170..G201607-201907

BLACK,TRIM2#

main71071-0UC30-C1iNSP170..E201907

BLACK,TRIM2#

main71071-0UC40-C2iNSP170..Q,V201907

DK.BROWN/BLACK,TRIM20

main71071-0UC40-C3iNSP170..CVT..G;NSP170..6F..G..IDN201907

BLACK,TRIM22

main71071-0UC40-C3iNSP170..6F..TH201907-202203

BLACK,TRIM2#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-0DU70-C1iNSP170..E201607-201907

BLACK,TRIM2#

main71073-0DU80-C2iNSP170..Q,V201607-201907

DK.BROWN,TRIM20

main71073-0DU80-C3iNSP170..Q,V201607-201907

BLACK,TRIM0#,21

main71073-0DU80-C3iNSP170..Q,V201607-201907

BLACK,TRIM2#

main71073-0UD60-C2iNSP170..6F..V201907

DK.BROWN/BLACK,TRIM20

main71073-0UD60-C3iNSP170..6F..TH201907-202203

BLACK,TRIM2#

main71073-0UD60-C3iNSP170..6F..V201907

BLACK,TRIM22

main71073-0UD70-C2iNSP170..CVT..(Q,V)201907

DK.BROWN/BLACK,TRIM20

main71073-0UD70-C3iNSP170..CVT..G..TH201907

BLACK,TRIM2#

main71073-0UD70-C3iNSP170..CVT..G..TH201907

BLACK,TRIM22

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-0D520iNSP170201607-201907

main71511-0D840iNSP170..6F..TH201907-202203

71537GPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)

main71537-0K030-C0iNSP170..E201607-201907

BLACK,TRIM2#

main71537-0K040-C0iNSP170..G201607-202203

BLACK,TRIM2#

main71537-0K040-C0iNSP170..Q,V201607-201907

BLACK,TRIM0#,2#

71538APROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)

main71538-0K010-C0iNSP170..E201607-201907

BLACK,TRIM2#

main71538-0K020-C0iNSP170..Q,V201607-202203

BLACK,TRIM2#

main71538-0K020-C0iNSP170..G201607-201907

BLACK,TRIM0#,2#

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-0D570iNSP170..CVT..TH;NSP170..CVT..(Q,V)..IDN201907

main71551-0D590iNSP170201607-202203

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-0D410iNSP170..CVT..(G,Q,V);NSP170..6F..(G,V)..IDN201607-202203

main71610-0D420iNSP170..E201607-201907

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-0D350iNSP170201607-202203

main71630-0D380iNSP170..CVT..TH;NSP170..CVT..(Q,V)..IDN201907

71759BHOOK, FRONT SEATBACK

main71759-0K170iNSP170201607-202203

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-0D230-C0iNSP170..Q,V201607-201907

BLACK,TRIM0#,2#

main71811-0D230-C0iNSP170..Q,V201607-202203

BLACK,TRIM2#

main71811-0D310-C0iNSP170..E201607-201907

BLACK,TRIM2#

71848ACAP, SEAT ADJUSTER COVER, RH

main71848-0K010iNSP170201607-202203

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-0D300-C0iNSP170..E201607-201907

BLACK,TRIM2#

main71861-0D310-C0iNSP170..6F..TH201607-202203

BLACK,TRIM2#

main71861-0D310-C0iNSP170..Q,V201607-201907

BLACK,TRIM0#,2#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-0D370iNSP170..G,Q,V201607-202203

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-0D390iNSP170..G,Q,V201607-202203

71910AHEADREST ASSY, FRONT SEAT

main71910-0DF60-C0iNSP170..Q,V201607-201907

BLACK,TRIM2#

main71910-0DF60-C0iNSP170..E,G201607-201907

BLACK,TRIM0#,21

main71910-0DF60-C1iNSP170..Q,V201607-201907

DK.BROWN,TRIM20

main71910-0DN10-C0iNSP170..Q,V201907

DK.BROWN/BLACK,TRIM20

main71910-0DN10-C1iNSP170..CVT..(E,G);NSP170..6F..(E,G)..IDN201907-202203

BLACK,TRIM2#

main71910-0DN10-C1iNSP170..Q,V201907

BLACK,TRIM22

71931SUPPORT, FRONT SEAT HEADREST

main71930-0K050-C0iNSP170..Q,V201607-201907

W(LOCK),BLACK,TRIM0#,2#

main71930-0K050-C0iNSP170..Q,V201607-201907

W(LOCK),BLACK,TRIM2#

main71930-0K050-C1iNSP170..CVT;NSP170..6F..IDN201907-202203

W(LOCK),BLACK,TRIM2#

main71931-0K040-C0iNSP170..E,G201607-201907

W/O(LOCK),BLACK,TRIM0#,2#

main71931-0K040-C0iNSP170..Q,V201607-201907

W/O(LOCK),BLACK,TRIM2#

main71931-0K040-C1iNSP170..CVT;NSP170..6F..IDN201907-202203

W/O(LOCK),BLACK,TRIM2#

72137BCOVER, SEAT TRACK, RH

main72137-0D180-C0iNSP170..Q,V201607-201907

BLACK,TRIM0#,2#

main72137-0D180-C0iNSP170..Q,V201607-202203

BLACK,TRIM2#

72147BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH

main72147-0D150iNSP170201607-202203

72211HANDLE, SEAT TRACK ADJUSTING

main72211-0D210iNSP170201607-201806

main72211-0D270iNSP170201807-202203

72494HANDLE, VERTICAL ADJUSTING, RH

main72494-0D170-C0iNSP170..Q,V201607-202203

BLACK,TRIM2#

main72494-0D170-C0iNSP170..Q,V201607-201907

BLACK,TRIM0#,2#

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-0D320-C0iNSP170..E201607-201907

BLACK,TRIM2#

main72525-0D330-C0iNSP170..G201607-201907

BLACK,TRIM0#,2#

main72525-0D330-C0iNSP170..G201607-202203

BLACK,TRIM2#

72877COVER, SEAT ARMREST, RH

main71877-68010-C0iNSP170..CVT..TH;NSP170..CVT..(Q,V)..IDN201907

BLACK,TRIM2#

72880ARMREST ASSY, SEAT, C RH

main72810-0D070-C4iNSP170..CVT..TH;NSP170..CVT..(Q,V)..IDN201907

BLACK,TRIM2#

79977AFELT, SEATBACK

main79977-0D320iNSP170..6F..TH201907-202203

7270268020BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-68020

90107T0003

main90107-T0003

9011910601

main90119-10601

90119T0359

main90119-T0359

9016740044

main90167-40044

9016850078

main90168-50078

9020115015

main90201-15015

9454201400

main94542-01400

33 parts on this diagram · 3 diagrams in section
