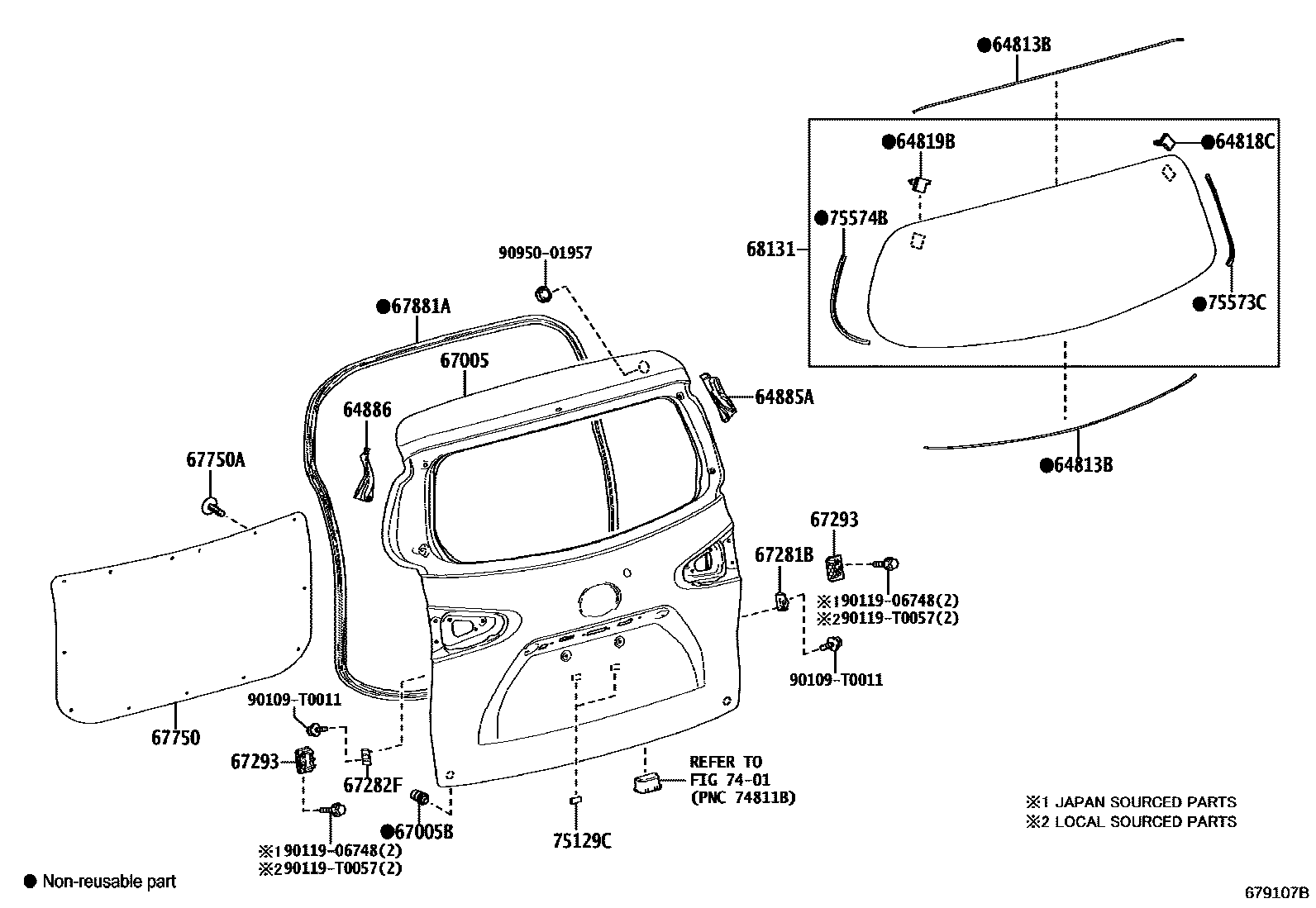

BACK DOOR PANEL & GLASS
64813BDAM, BACK WINDOW GLASS ADHESIVE
64818CSPACER, BACK WINDOW GLASS, NO.1
64819BSPACER, BACK WINDOW GLASS, NO.2
64885ACHANNEL, BACK WINDOW GLASS, RH
64886CHANNEL, BACK WINDOW GLASS, LH
67005PANEL SUB-ASSY, BACK DOOR
67005BCUSHION(FOR BACK DOOR PANEL)
67281BSTOPPER, BACK DOOR, LOWER
67282FSTOPPER, BACK DOOR, LWR LH
67293CUSHION, BACK DOOR LOWER STOPPER
67750BOARD ASSY, BACK DOOR TRIM
BLACK,TRIM0#,2#
BLACK,TRIM2#
67750ACLIP(FOR BACK DOOR TRIM)
BLACK,TRIM2#,(L)
67881AWEATHERSTRIP, BACK DOOR
7401
75129CCUSHION, REAR LICENCE PLATE
75573CMOULDING, BACK WINDOW, OUTSIDE
75574BMOULDING, BACK WINDOW, OUTSIDE LH
90109T0011
main90109-T0011
9011906748
90119T0057
main90119-T0057
9095001957
22 parts on this diagram · 1 diagram in section
