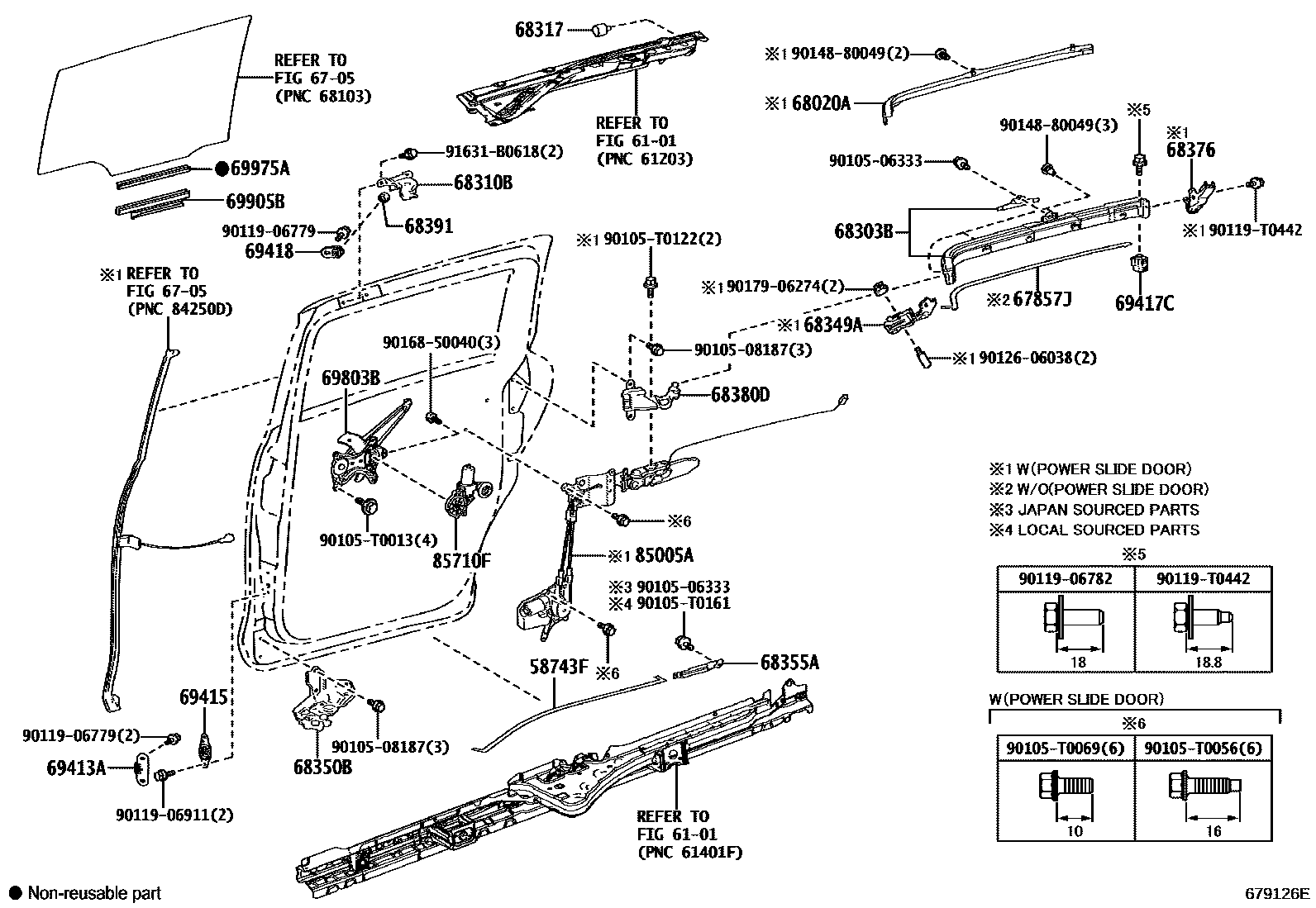

REAR DOOR WINDOW REGULATOR & HINGE

0001 1RH 0002 1LH

58743FPROTECTOR, SLIDE DOOR PANEL, RH

main58743-0D010iNSP170..CVT;NSP170..6F..IDN201607-202203

6101

6705

67857JPROTECTOR, SLIDE DOOR RAIL, RH

main67857-0D040iNSP170..E,G201607-202203

68020AGUIDE ASSY, SLIDE DOOR CABLE, RH

main68020-52030iNSP170..Q,V201607-201907

68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-0D030iNSP170..E,G201607-201712

sub68303-0D031

main68303-0D031iNSP170..CVT..(E,G);NSP170..6F..(E,G)..IDN201801-202203

main68303-0D040iNSP170..Q,V201607-201712

sub68303-0D041

main68303-0D041iNSP170..Q,V201801-201907

68310BROLLER ASSY, SLIDE DOOR, UPPER RH

main68310-0D010iNSP170..CVT;NSP170..6F..IDN201607-202203

68317STOPPER, SLIDE DOOR UPPER RAIL, RH

main68317-0D010iNSP170..6F..TH201607-202203

68349ABRACKET, SLIDE DOOR CENTER RAIL, RH

main68765-52010iNSP170..Q,V201607-201907

68350BROLLER ASSY, SLIDE DOOR, LOWER RH

main68350-0D010iNSP170201607-202203

68355APLATE, SLIDE DOOR RAIL PROTECTOR, NO.3 RH

main68355-52020iNSP170201607-201709

sub68355-52021

main68355-52021iNSP170..6F..TH201710-202203

68376BRACKET, SLIDE DOOR CENTER RAIL

main68775-52010iNSP170..Q,V201607-201703

RH

sub68775-52011

main68775-52011iNSP170..Q,V201704-201907

RH

main68776-52020iNSP170..G,Q,V201607-201703

LH

sub68776-52021

main68776-52021iNSP170..G,Q,V201704-202203

LH

68380DHINGE ASSY, SLIDE DOOR, CENTER RH

main68380-0D010iNSP170201607-202203

68391CUSHION, SLIDE DOOR UPPER ROLLER, RH

main68391-28040iNSP170201607-202203

69413ASTOP, FRONT SLIDE DOOR DOWN MALE

main69046-52010iNSP170201607-202203

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-52010iNSP170201607-202203

69417CCUSHION, SLIDE DOOR OPEN STOPPER, RH

main69417-0D020iNSP170201607-202203

69418STOP, SLIDE DOOR OPEN

main69418-52010iNSP170..CVT;NSP170..6F..IDN201607-202203

RH

main69419-52010iNSP170..6F..TH201607-202203

LH

69803BREGULATOR SUB-ASSY, SLIDE DOOR WINDOW, RH

main69803-0D210iNSP170201607-202203

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-0D180iNSP170201607-202203

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-0D150iNSP170201607-202203

85005AMOTOR UNIT, SLIDE DOOR, RH

main85005-0D010iNSP170..Q,V201607-201804

sub85005-0D011

main85005-0D011iNSP170..Q,V201805-201907

sub85005-0D012

main85005-0D030iNSP170..Q,V201907

sub85005-0D031

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-0K180iNSP170201607-202203

9010506333

main90105-06333

9010508187

main90105-08187

90105T0013

main90105-T0013

90105T0056

main90105-T0056

90105T0069

main90105-T0069

90105T0122

main90105-T0122

90105T0161

main90105-T0161

9011906779

main90119-06779

9011906782

main90119-06782

9011906911

main90119-06911

90119T0442

main90119-T0442

9012606038

main90126-06038

9014880049

main90148-80049

9016850040

main90168-50040

9017906274

main90179-06274

91631B0618

main91631-B0618

39 parts on this diagram · 2 diagrams in section
