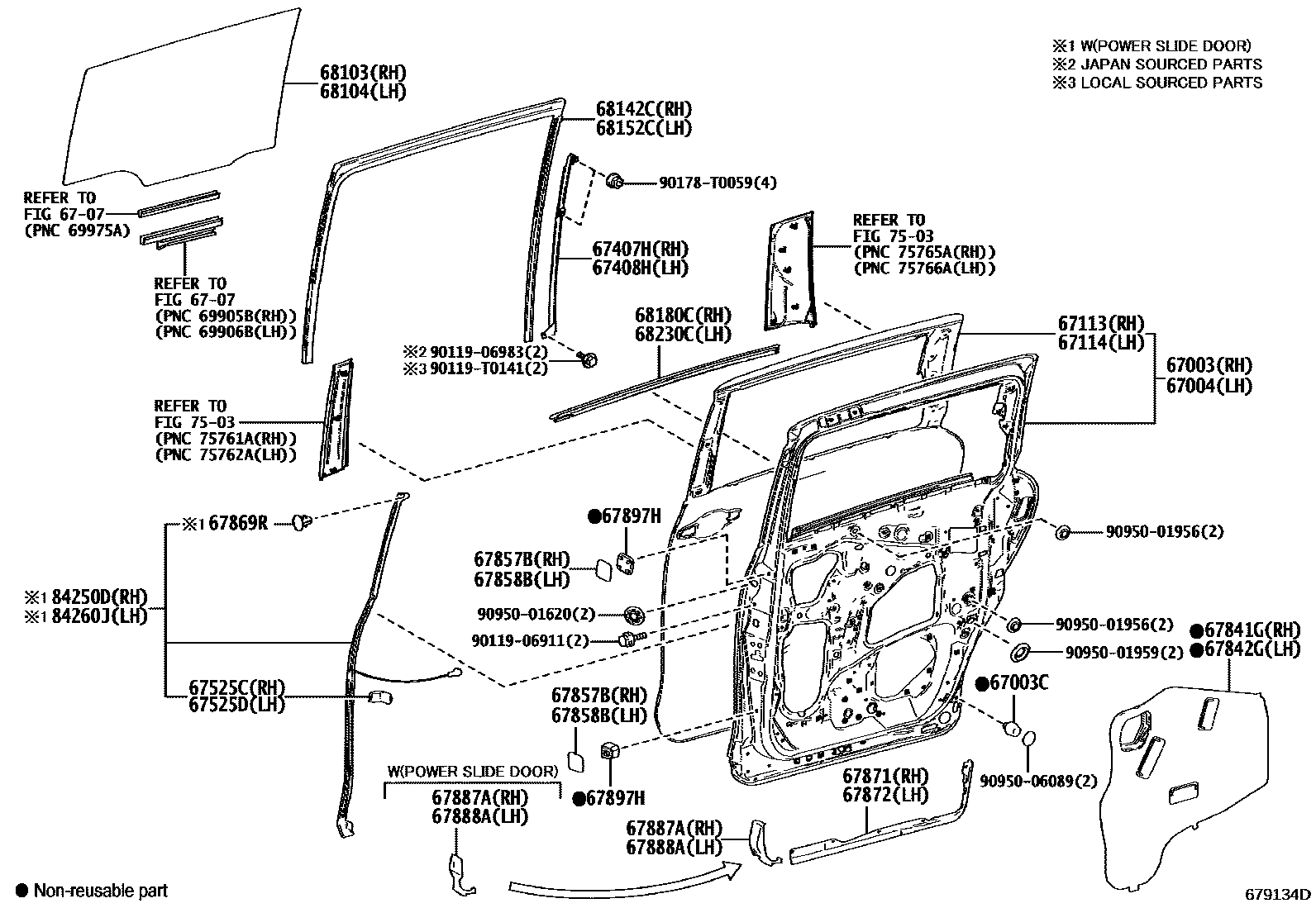

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-0D350iNSP170..Q,V201607-201907

main67003-0D360iNSP170..CVT..(E,G);NSP170..6F..(E,G)..IDN201607-202203

67003CCUSHION, REAR DOOR PANEL

main67897-0D030iNSP170201607-202203

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-0D350iNSP170..CVT..(G,Q,V);NSP170..6F..(G,V)..IDN201607-202203

main67004-0D360iNSP170..E201607-201907

6707

67113PANEL, REAR DOOR, OUTER RH

main67113-0D120iNSP170201607-202203

67114PANEL, REAR DOOR, OUTER LH

main67114-0D120iNSP170201607-202203

67407HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH

main67407-0D180iNSP170201607-202203

67408HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH

main67408-0D180iNSP170201607-202203

67525CCOVER, SLIDE DOOR PANEL, LOWER RH

main67525-52010iNSP170..Q,V¥550201607-201907

67525DCOVER, SLIDE DOOR PANEL, LOWER LH

main67526-52010iNSP170..G,Q,V¥550201607-202203

67841GCOVER, SLIDE DOOR SERVICE HOLE, RH

main67841-0D370iNSP170201607-202203

67842GCOVER, SLIDE DOOR SERVICE HOLE, LH

main67842-0D220iNSP170..6F..TH201607-202203

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-0D050iNSP170201607-202203

UPPER

main67857-0D060iNSP170201607-202203

LOWER

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-0D040iNSP170201607-202203

UPPER

main67858-0D050iNSP170..6F..TH201607-202203

LOWER

67869RCLIP(FOR POWER SLIDE DOOR SENSOR)

main67869-28020iNSP170..G¥80201607-202203

67871WEATHERSTRIP, REAR DOOR, RH

main67871-0D200iNSP170201607-201705

main67871-0D201iNSP170201705-202203

67872WEATHERSTRIP, REAR DOOR, LH

main67872-0D200iNSP170201607-201705

main67872-0D201iNSP170201705-202203

67887AWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-0D040iNSP170..E,G201607-201705

main67887-0D041iNSP170..CVT..(E,G);NSP170..6F..(E,G)..IDN201705-202203

main67887-0D050iNSP170..Q,V201607-201705

main67887-0D051iNSP170..Q,V201705-201907

67888AWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-0D020iNSP170..E201607-201705

main67888-0D021iNSP170..E201705-201907

main67888-0D030iNSP170..G,Q,V201607-201705

main67888-0D031iNSP170..G,Q,V201705-202203

67897HCUSHION, REAR DOOR

main67897-0D010iNSP170..6F..TH201607-202203

UPPER

main67897-0D020iNSP170..6F..TH201607-202203

LOWER

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-0D340iNSP170201607-201802

sub68113-0D341

main68113-0D341iNSP170201803-202203

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-0D340iNSP170201607-201802

sub68114-0D341

main68114-0D341iNSP170201803-202203

68142CRUN, REAR DOOR GLASS, RH

main68142-0D230iNSP170201607-202203

68152CRUN, REAR DOOR GLASS, LH

main68152-0D210iNSP170201607-202203

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-0D280iNSP170201607-202203

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-0D280iNSP170201607-202203

7503

84250DSENSOR ASSY, POWER SLIDE DOOR, RH

main84250-52160iNSP170..Q,V¥16,200201607-201907

84260JSENSOR ASSY, POWER SLIDE DOOR, LH

main84260-52050iNSP170..G,Q,V¥16,200201607-202203

9011906911

main90119-06911¥80

9011906983

main90119-06983¥60

90119T0141

main90119-T0141

90178T0059

main90178-T0059¥60

9095001620

main90950-01620¥110

9095001956

main90950-01956¥100

9095001959

main90950-01959¥120

9095006089

main90950-06089¥160

37 parts on this diagram · 2 diagrams in section
