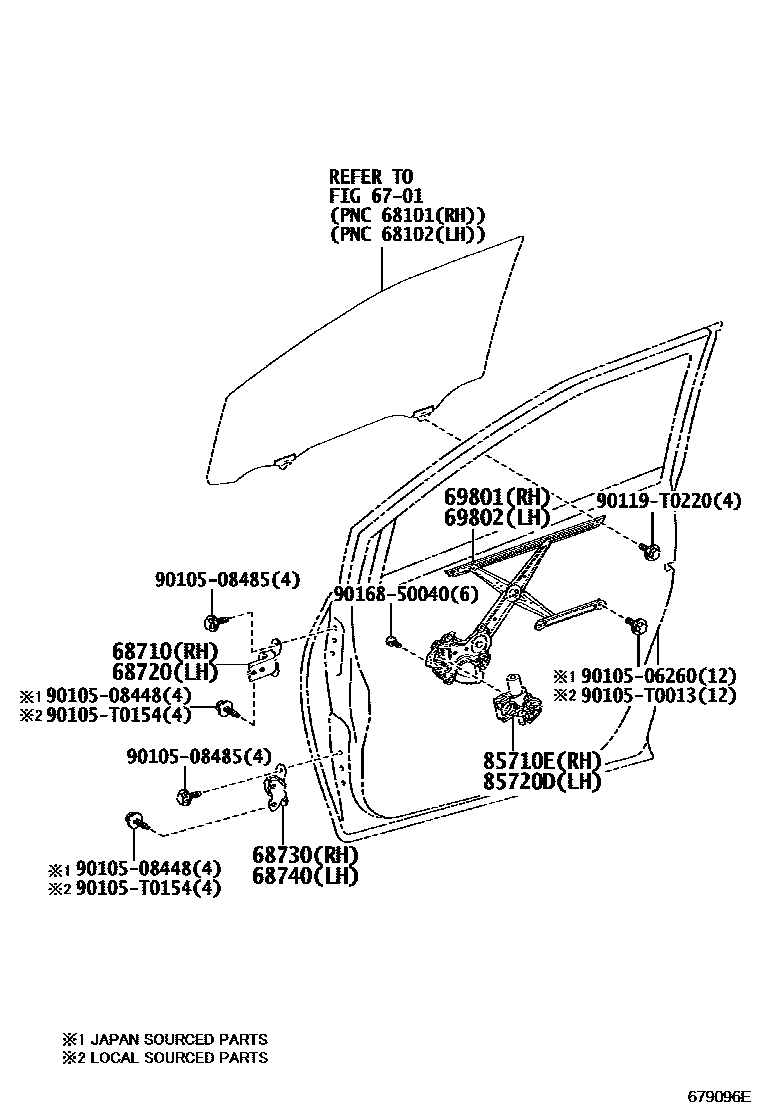

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-0K020iNSP170..6F..TH201607-202203

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-0K020iNSP170201607-202203

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02100iNSP170201607-202203

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02100iNSP170201607-202203

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0K170iNSP170..CVT;NSP170..6F..IDN201607-202203

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0K170iNSP170201607-202203

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0D321iNSP170..Q,V201708-201907

main85710-0D370iNSP170..6F..TH201607-202203

main85710-0D500iNSP170..Q,V201607-201707

sub85710-0D321

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0D500iNSP170201607-201707

sub85720-0K180

main85720-0K180iNSP170..CVT;NSP170..6F..IDN201708-202203

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

90105T0013

main90105-T0013

90105T0154

main90105-T0154

90119T0220

main90119-T0220

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
