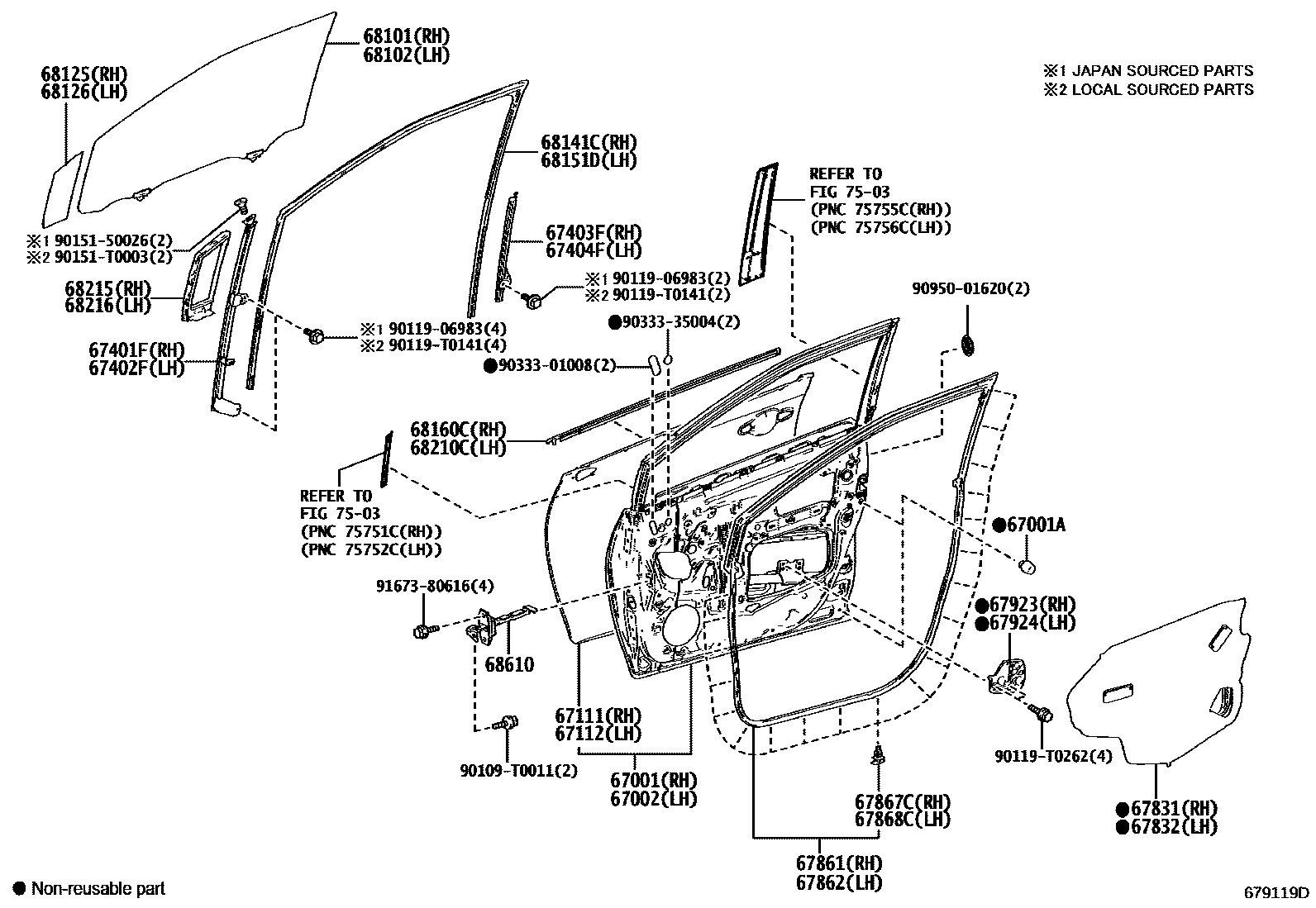

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0D380iNSP170201607-202203

67001ACUSHION, FRONT DOOR PANEL

main90541-09124iNSP170201607-202203

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0D390iNSP170201607-202203

67111PANEL, FRONT DOOR, OUTER RH

main67111-0D160iNSP170201607-202203

67112PANEL, FRONT DOOR, OUTER LH

main67112-0D170iNSP170201607-202203

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-0D080iNSP170201607-202203

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-0D080iNSP170..CVT;NSP170..6F..IDN201607-202203

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0D170iNSP170201607-202203

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0D170iNSP170201607-202203

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0D380iNSP170..CVT;NSP170..6F..IDN201607-202203

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0D260iNSP170201607-202203

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0D220iNSP170201607-202203

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0D220iNSP170201607-202203

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iNSP170201607-202203

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iNSP170201607-202203

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-0D130iNSP170201607-202203

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-0D140iNSP170201607-202203

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68110-0D410iNSP170201607-201802

sub68110-0D411

main68110-0D411iNSP170201803-202203

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68120-0D410iNSP170201607-201802

sub68120-0D411

main68120-0D411iNSP170201803-202203

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-0D080iNSP170201607-201802

sub68125-0D081

main68125-0D081iNSP170201803-202203

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-0D070iNSP170201607-201802

sub68126-0D071

main68126-0D071iNSP170201803-202203

68141CRUN, FRONT DOOR GLASS, RH

main68141-0D280iNSP170201607-202203

68151DRUN, FRONT DOOR GLASS, LH

main68151-0D260iNSP170201607-202203

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-0D310iNSP170201607-202203

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-0D310iNSP170201607-202203

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-0D060iNSP170201607-202203

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-0D060iNSP170201607-202203

68610CHECK ASSY, FRONT DOOR

main68610-0D200iNSP170201607-202203

7503

90109T0011

main90109-T0011

9011906983

main90119-06983

90119T0141

main90119-T0141

90119T0262

main90119-T0262

9015150026

main90151-50026

90151T0003

main90151-T0003

9033301008

main90333-01008

9033335004

main90333-35004

9095001620

main90950-01620

9167380616

main91673-80616

39 parts on this diagram · 2 diagrams in section
