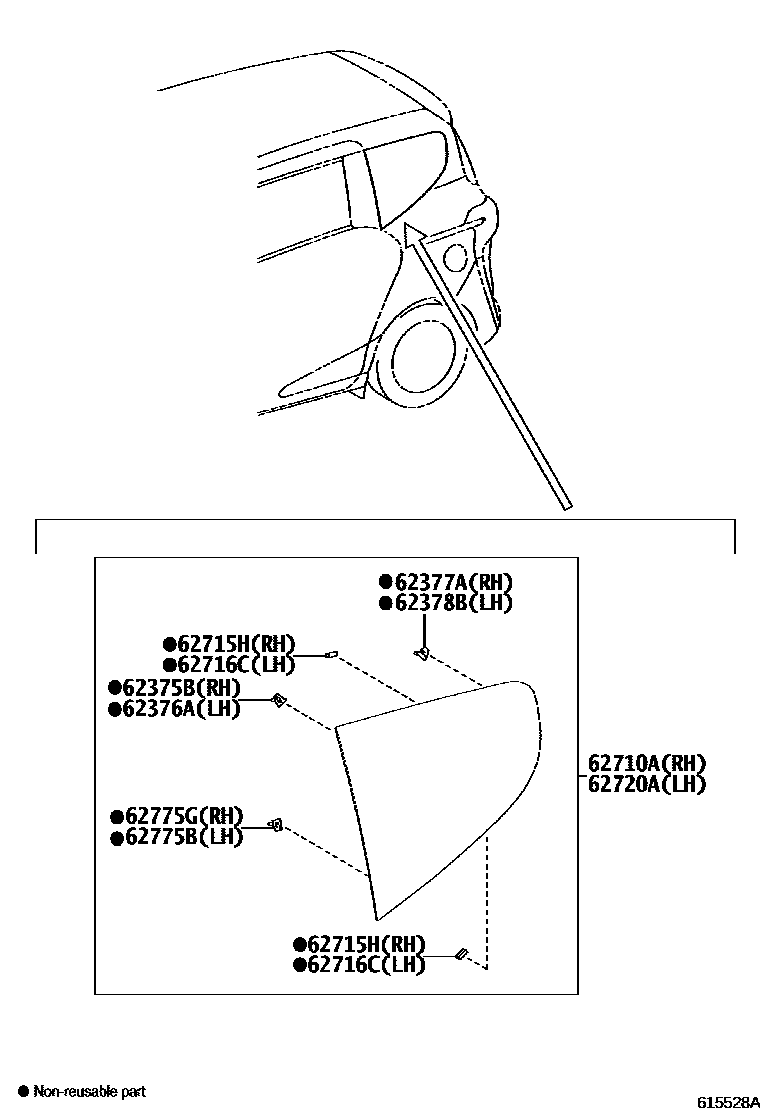

QUARTER WINDOW

62375BCLIP, SIDE WINDOW, NO.1

main62775-0D060iNSP170201607-202203

62376ACLIP, SIDE WINDOW, NO.2

main62775-0D090iNSP170201607-202203

62377ACLIP, SIDE WINDOW, NO.3

main62775-0D050iNSP170201607-202203

62378BCLIP, SIDE WINDOW, NO.4

main62775-0D080iNSP170201607-202203

62710AWINDOW ASSY, QUARTER, RH

main62710-0D030iNSP170..IDN;NSP170..6F..TH201607-201802

sub62710-0D031

main62710-0D031iNSP170..CVT;NSP170..6F..IDN201803-202203

main62710-0D050iNSP170..CVT..TH201607-201803

SINGAPORE SPEC

sub62710-0D031

main62710-0D050iNSP170..CVT..TH201607-201803

BRUNEI SPEC

sub62710-0D031

main62710-0D050iNSP170..CVT..TH201607-201803

MALAYSIA SPEC

sub62710-0D031

62715HDAM, QUARTER WINDOW GLASS ADHESIVE, RH

main68294-0D010iNSP170201607-202203

62716CDAM, QUARTER WINDOW GLASS ADHESIVE, LH

main68294-0D010iNSP170..CVT;NSP170..6F..IDN201607-202203

62720AWINDOW ASSY, QUARTER, LH

main62720-0D030iNSP170..IDN;NSP170..6F..TH201607-201802

sub62720-0D031

main62720-0D031iNSP170..CVT;NSP170..6F..IDN201803-202203

main62720-0D050iNSP170..V..TH201607-201803

SINGAPORE SPEC

sub62720-0D031

main62720-0D050iNSP170..V..TH201607-201803

BRUNEI SPEC

sub62720-0D031

main62720-0D050iNSP170..CVT..TH201607-201803

MALAYSIA SPEC

sub62720-0D031

62775BCLIP, QUARTER WINDOW, LH

main62775-0D070iNSP170201607-202203

62775GCLIP, QUARTER WINDOW, RH

main62775-0D040iNSP170201607-202203

10 parts on this diagram · 1 diagram in section
