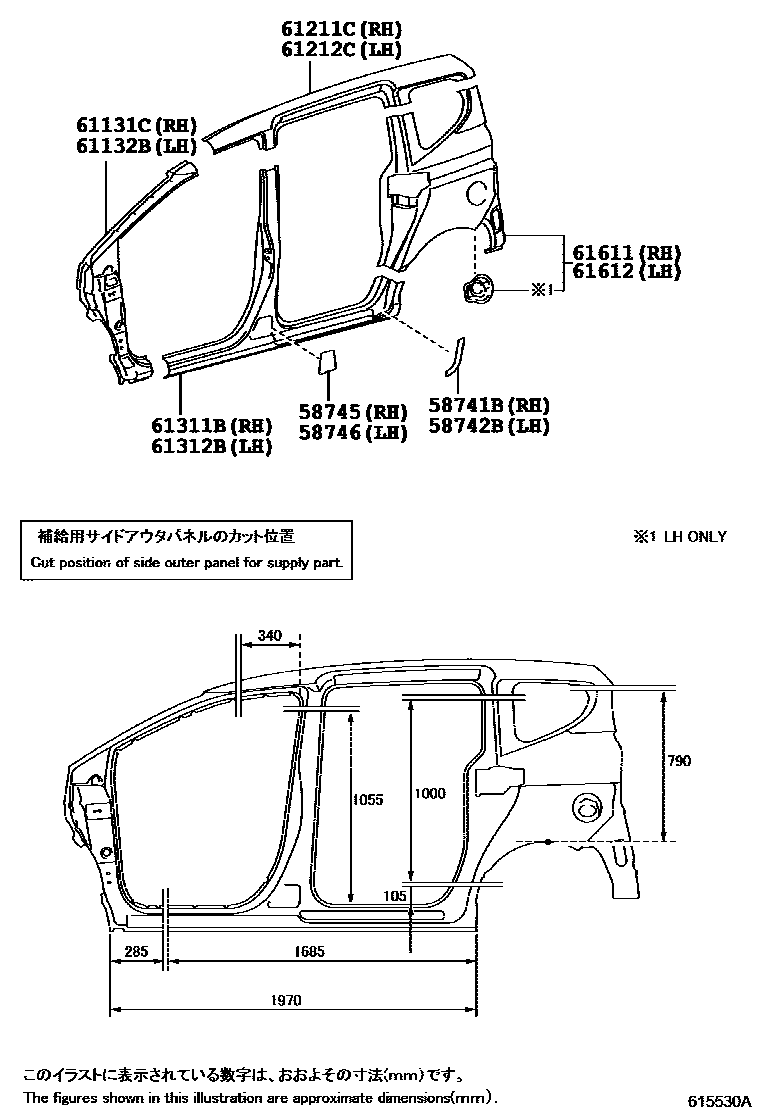

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH

58741BPROTECTOR, QUARTER PANEL, RH

main58741-0D120iNSP170201607-201703

58742BPROTECTOR, QUARTER PANEL, LH

main58742-0D120iNSP170201607-201703

58745PROTECTOR, QUARTER PANEL, FRONT RH

main58741-0D130iNSP170201607-201703

58746PROTECTOR, QUARTER PANEL, FRONT LH

main58742-0D130iNSP170201607-201703

61131CPILLAR, FRONT BODY, OUTER RH

main61131-0D220iNSP170201607-202203

61132BPILLAR, FRONT BODY, OUTER LH

main61132-0D240iNSP170201607-202203

61211CRAIL, ROOF SIDE, RH

main61211-0D360iNSP170..6F..TH201607-202203

61212CRAIL, ROOF SIDE, LH

main61212-0D350iNSP170..6F..TH201607-202203

61311BPILLAR, CENTER BODY, OUTER RH

main61311-0D150iNSP170201607-202203

61312BPILLAR, CENTER BODY, OUTER LH

main61312-0D150iNSP170201607-202203

61611PANEL, QUARTER, RH

main61611-0D360iNSP170201607-202203

61612PANEL, QUARTER, LH

main61602-0D390iNSP170201607-202203

12 parts on this diagram · 3 diagrams in section
