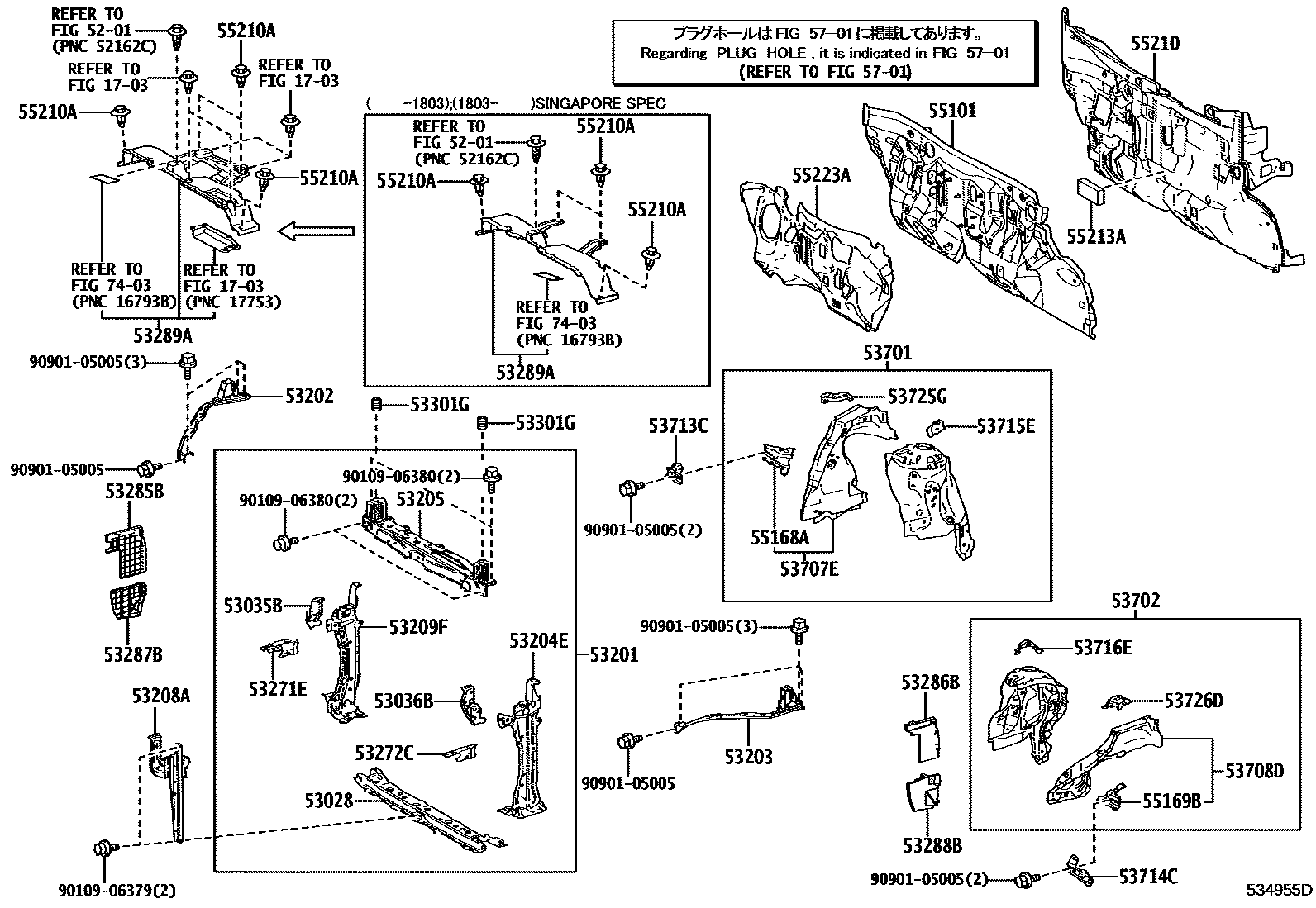

FRONT FENDER APRON & DASH PANEL

1703

5201

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-0D090iNSP170..6F..TH201607-202203

53035BBRACKET SUB-ASSY, HEADLAMP MOUNTING, RH

main53035-0D020iNSP170201607-202203

53036BBRACKET SUB-ASSY, HEADLAMP MOUNTING, LH

main53036-0D020iNSP170201607-202203

53201SUPPORT SUB-ASSY, RADIATOR

main53201-0D200iNSP170201607-202203

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-0D080iNSP170201607-202203

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-0D090iNSP170201607-202203

53204EBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, LH

main53204-0D080iNSP170201607-202203

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-0D100iNSP170201607-202203

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-0D140iNSP170201607-202203

53209FBRACE SUB-ASSY, RADIATOR SUPPORT TO CROSSMEMBER, RH

main53209-0D080iNSP170201607-202203

53271EBRACKET, HEADLAMP MOUNTING, RH

main53271-0D060iNSP170201607-202203

53272CBRACKET, HEADLAMP MOUNTING, LH

main53272-0D060iNSP170201607-202203

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-0D310iNSP170201607-201907

main53285-0D550iNSP170..6F..TH201907-202203

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-0D310iNSP170201607-201907

main53286-0D550iNSP170..6F..TH201907-202203

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-0D210iNSP170201607-202203

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-0D210iNSP170..6F..TH201607-202203

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-0D140iNSP170201607-201803

main53289-0D200iNSP170..CVT;NSP170..6F..IDN201803-202203

53301GCUSHION, HOOD BUMPER

main90541-15037iNSP170..6F..TH201607-202203

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-0D280iNSP170..6F..TH201607-202203

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-0D270iNSP170201607-202203

53707EAPRON SUB-ASSY, FENDER SIDE, RH

main53707-0D030iNSP170201607-202203

53708DAPRON SUB-ASSY, FENDER SIDE, LH

main53708-0D030iNSP170201607-202203

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-0D170iNSP170201607-202203

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-0D170iNSP170201607-202203

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-0D010iNSP170201607-202203

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-0D010iNSP170201607-202203

53725GAPRON, FRONT FENDER NO.2 SIDE, RH

main53725-0D010iNSP170..CVT;NSP170..6F..IDN201607-202203

53726DAPRON, FRONT FENDER NO.2 SIDE, LH

main53726-0D010iNSP170..6F..TH201607-202203

55101PANEL SUB-ASSY, DASH

main55101-0D670iNSP170..CVT201607-201907

main55101-0D680iNSP170..6F..TH201607-202203

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55168-0D070iNSP170201607-202203

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55169-0D070iNSP170..CVT;NSP170..6F..IDN201607-202203

55210INSULATOR ASSY, DASH PANEL

main55210-0D640iNSP170201607-202203

55210ACLIP

main90467-07214iNSP170201607-202203

55213APAD, DASH PANEL SILENCER

main55213-0D130iNSP170201607-202203

55223AINSULATOR, DASH PANEL, OUTER

main55223-0D210iNSP170201607-202203

5701

7403

9010906379

main90109-06379

9010906380

main90109-06380

9090105005

main90901-05005

42 parts on this diagram · 1 diagram in section
