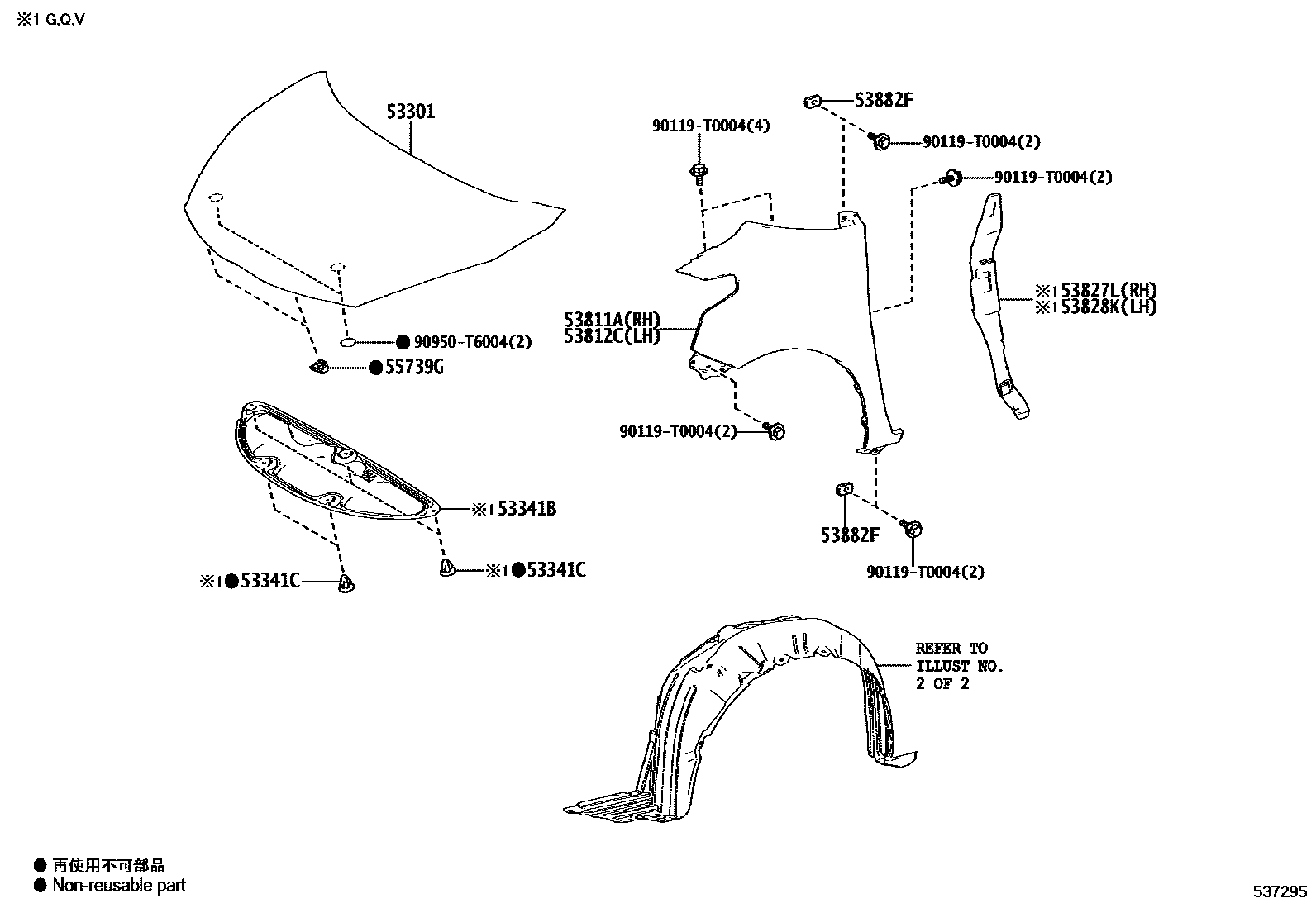

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-0D260iNSP170..CVT;NSP170..6F..IDN201607-202203

53341BINSULATOR, HOOD

main53341-0D270iNSP170..G,Q,V201607-202203

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iNSP170..G,Q,V201607-202203

(J)

main90467-T0014iNSP170..G,Q,V201607-202203

(L)

53811APANEL, FRONT FENDER, RH

main53811-0D220iNSP170201607-202203

53812CPANEL, FRONT FENDER, LH

main53812-0D220iNSP170201607-202203

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0D170iNSP170..6F..TH201607-202203

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0D170iNSP170..G,Q,V201607-202203

53882FSEAL, FRONT FENDER

main53882-33060iNSP170201607-202203

55739GSTOPPER, HOOD

main55738-0D060iNSP170201607-202203

90119T0004

main90119-T0004

90950T6004

main90950-T6004

11 parts on this diagram · 2 diagrams in section
