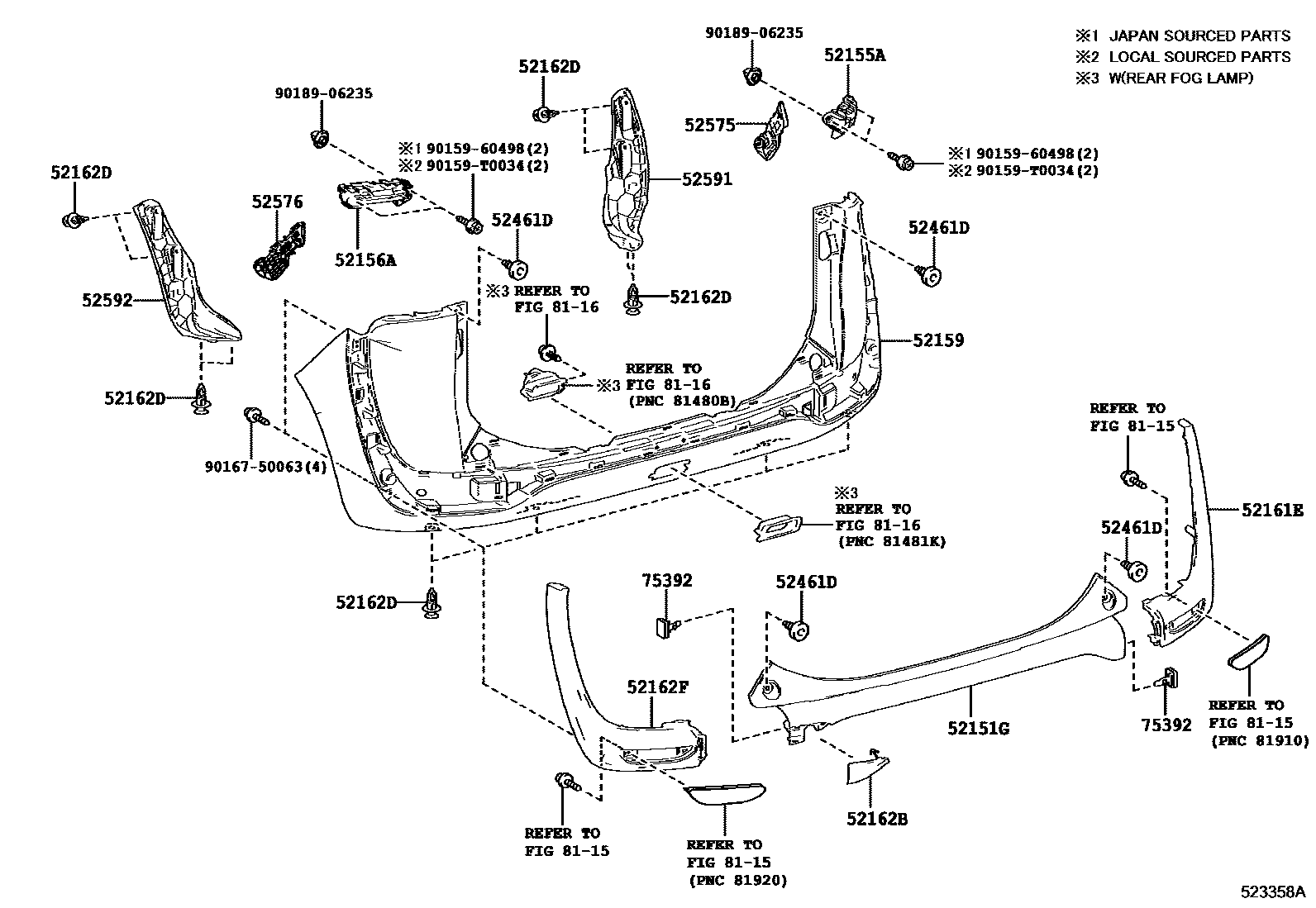

REAR BUMPER & BUMPER STAY

52151GEXTENSION, REAR BUMPER

main52151-0D010iNSP170..CVT;NSP170..6F..IDN201607-202203

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-0D110iNSP170201607-202203

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-0D100iNSP170201607-202203

52159COVER, REAR BUMPER

main52159-0U918iNSP170..IDN201607-201907

PAINT REQ.

main52159-0U919iNSP170..TH201607-202203

PAINT REQ.

52161EEXTENSION, REAR BUMPER SIDE, RH

main52161-0D070iNSP170201607-202203

52162BPLATE, REAR BUMPER, NO.1

main52162-0D050iNSP170201607-202203

52162DPIECE, REAR BUMPER

main52161-0K040iNSP170..CVT;NSP170..6F..IDN¥120201607-202203

52162FEXTENSION, REAR BUMPER SIDE, LH

main52162-0D040iNSP170201607-202203

52461DCUSHION, REAR BUMPER

main52461-52020iNSP170¥590201607-202203

52575RETAINER, REAR BUMPER SIDE, RH

main52575-0D280iNSP170201607-202203

52576RETAINER, REAR BUMPER SIDE, LH

main52576-0D270iNSP170201607-202203

52591SEAL, REAR BUMPER SIDE, RH

main52591-0D300iNSP170201607-202203

52592SEAL, REAR BUMPER SIDE, LH

main52592-0D300iNSP170201607-202203

75392RETAINER, OUTSIDE MOULDING

main75392-35200iNSP170¥130201607-202203

8115

8116

9015960498

main90159-60498¥70

90159T0034

main90159-T0034

9016750063

main90167-50063¥60

9018906235

main90189-06235¥70

20 parts on this diagram · 1 diagram in section
