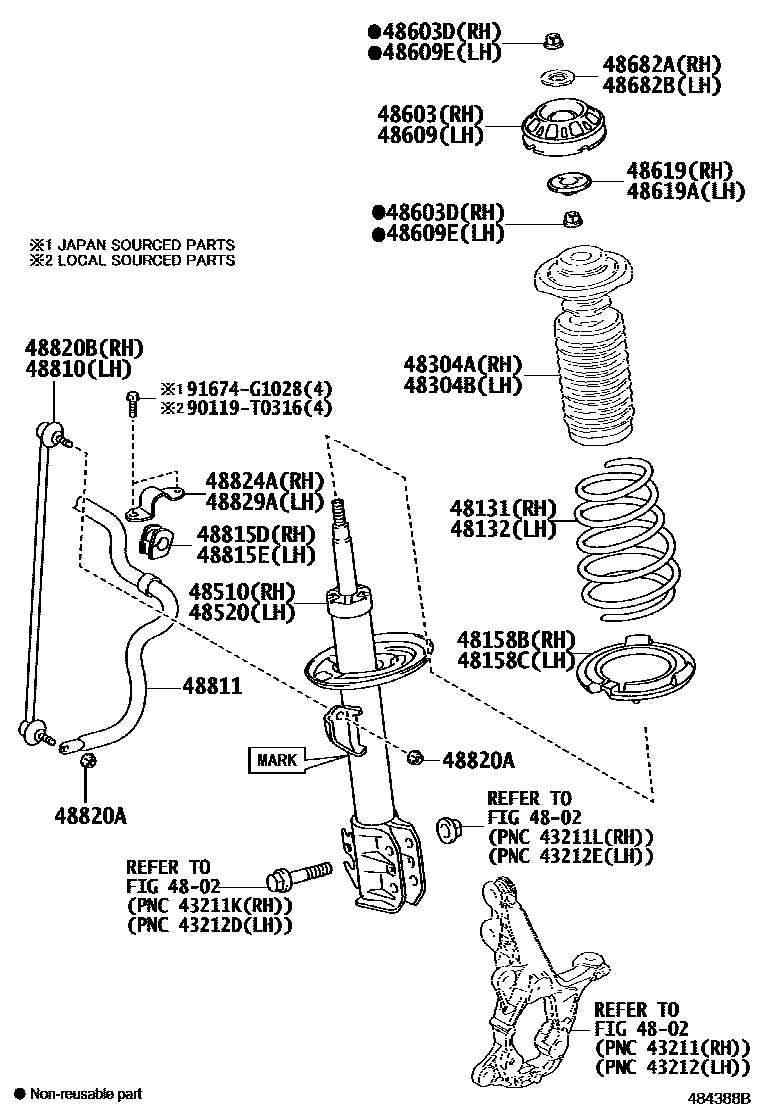

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-0DC50iNSP170..CVT..TH201607-201907

main48131-0DC70iNSP170..6F..TH201607-202203

main48131-0DF70iNSP170..CVT..IDN201610-201907

main48131-0DF80iNSP170..6F..IDN201610-201907

48132SPRING, FRONT COIL, LH

main48131-0DC50iNSP170..CVT201607-201907

main48131-0DC70iNSP170..6F..TH201607-202203

main48131-0DF70iNSP170..CVT..IDN201610-201907

main48131-0DF80iNSP170..6F..IDN201610-201907

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-0D090iNSP170..CVT;NSP170..6F..IDN201607-202203

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-0D090iNSP170201607-202203

48304ASEAT SUB-ASSY, BUMPER, RH

main48304-0D250iNSP170201607-202203

48304BSEAT SUB-ASSY, BUMPER, LH

main48304-0D250iNSP170201607-202203

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-0DB20iNSP170201607-202203

MARK 48510-0DB20

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-0D370iNSP170201607-202203

MARK 48520-0D370

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-0D180iNSP170201607-202203

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90178-T0064iNSP170201607-202203

(L)

main90179-12145iNSP170..CVT;NSP170..6F..IDN¥100201607-202203

(J)

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-0D180iNSP170..CVT;NSP170..6F..IDN201607-202203

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90178-T0064iNSP170..CVT;NSP170..6F..IDN201607-202203

(L)

main90179-12145iNSP170..CVT;NSP170..6F..IDN¥100201607-202203

(J)

48619BEARING, STRUT MOUNTING, RH

main48619-52030iNSP170..6F..TH201607-202203

48619ABEARING, STRUT MOUNTING, LH

main48619-52030iNSP170201607-202203

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

main48682-0D170iNSP170201607-202203

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

main48682-0D170iNSP170201607-202203

48810LINK ASSY, FRONT STABILIZER, LH

main48820-0D040iNSP170..6F..TH201607-202203

48811BAR, STABILIZER, FRONT

main48811-0D230iNSP170201607-202203

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-0D220iNSP170201607-202203

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-0D220iNSP170201607-202203

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-12151iNSP170¥100201607-202203

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-0D040iNSP170201607-202203

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-0D140iNSP170201607-202203

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-0D140iNSP170201607-202203

90119T0316

main90119-T0316

91674G1028

main91674-G1028¥120

27 parts on this diagram · 1 diagram in section
