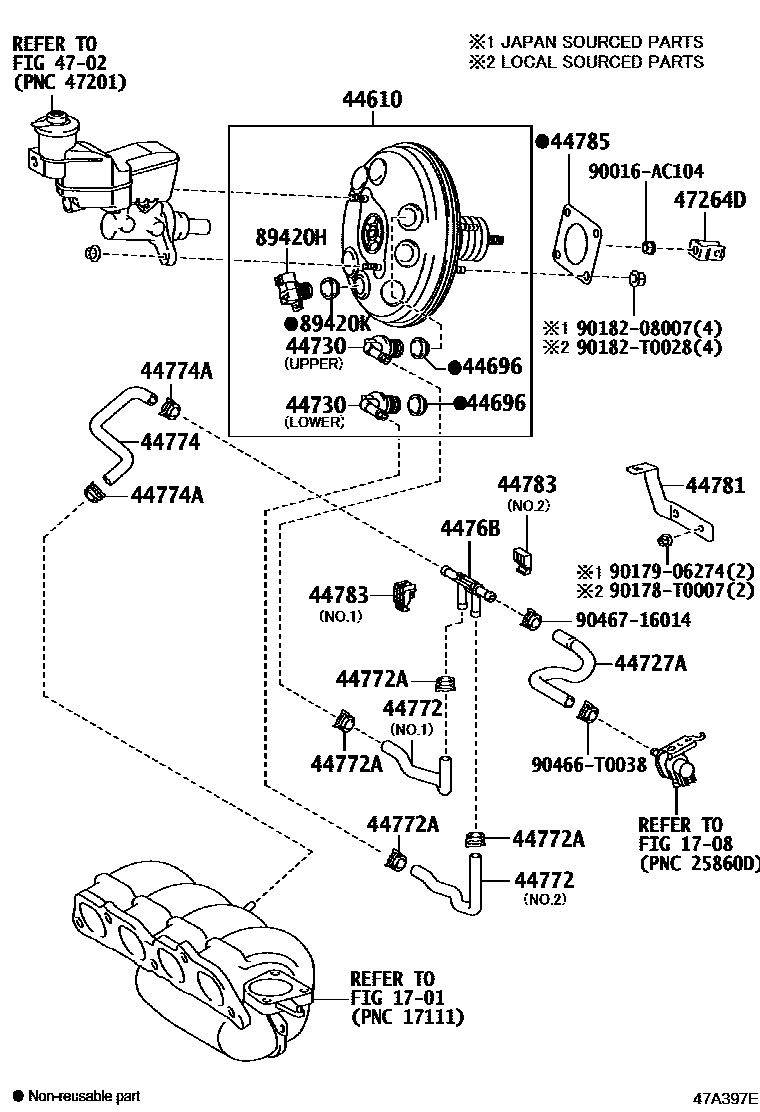

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1701

1708

44610BOOSTER ASSY, BRAKE

main44610-0D560iNSP170..CVT..(E,G,V)..IDN201907

main44610-0D560iNSP170..CVT..(E,G,V)..IDN201607-201907

SINGAPORE SPEC&VSC-WITHOUT

main44610-0D570iNSP170..6F..IDN201607-202203

main44610-0D580iNSP170..Q;NSP170..CVT..TH201607-201907

44696GROMMET, CHECK VALVE

main90016-AT003iNSP170..6F..IDN¥120201607-202203

44727AHOSE, AIR, NO.2

main17342-0Y010iNSP170..CVT201607-201907

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iNSP170..CVT¥1,380201607-201907

LOWER

main44730-20170iNSP170..CVT¥1,310201607-201909

UPPER

main44730-52010iNSP170..6F..TH¥1,300201910-202203

main44730-52010iNSP170..CVT¥1,300201910

UPPER

4476BEJECTOR, BRAKE BOOSTER VACUUM

main4476B-48010iNSP170..CVT¥1,250201607-201907

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-0D310iNSP170..CVT201607-201907

NO.1:REFER ILLUST.

main44772-0D320iNSP170..CVT201607-201907

NO.2:REFER ILLUST.

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iNSP170..CVT¥230201607-201907

44774HOSE, UNION TO CONNECTOR TUBE

main44774-0D130iNSP170..CVT201607-201907

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iNSP170..CVT¥230201607-201907

44781BRACKET, HOSE

main44781-0D070iNSP170..CVT201607-201907

44783CLAMP, VACUUM HOSE

main44783-0D020iNSP170..CVT201607-201907

NO.1:REFER ILLUST.

main44783-0D030iNSP170..CVT201607-201907

NO.2:REFER ILLUST.

44785GASKET, BRAKE BOOSTER

main44785-0D020iNSP170201607-202203

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-52030iNSP170201607-202203

89420HSENSOR ASSY, VACUUM

main89421-52020iNSP170..CVT¥5,900201607-201907

89420KGROMMET, VACUUM SENSOR

main90016-AT003iNSP170..CVT¥120201607-201907

90016AC104

main90016-AC104

90178T0007

main90178-T0007¥80

9017906274

main90179-06274¥70

9018208007

main90182-08007¥100

90182T0028

main90182-T0028

90466T0038

main90466-T0038

9046716014

main90467-16014¥230

25 parts on this diagram · 2 diagrams in section
